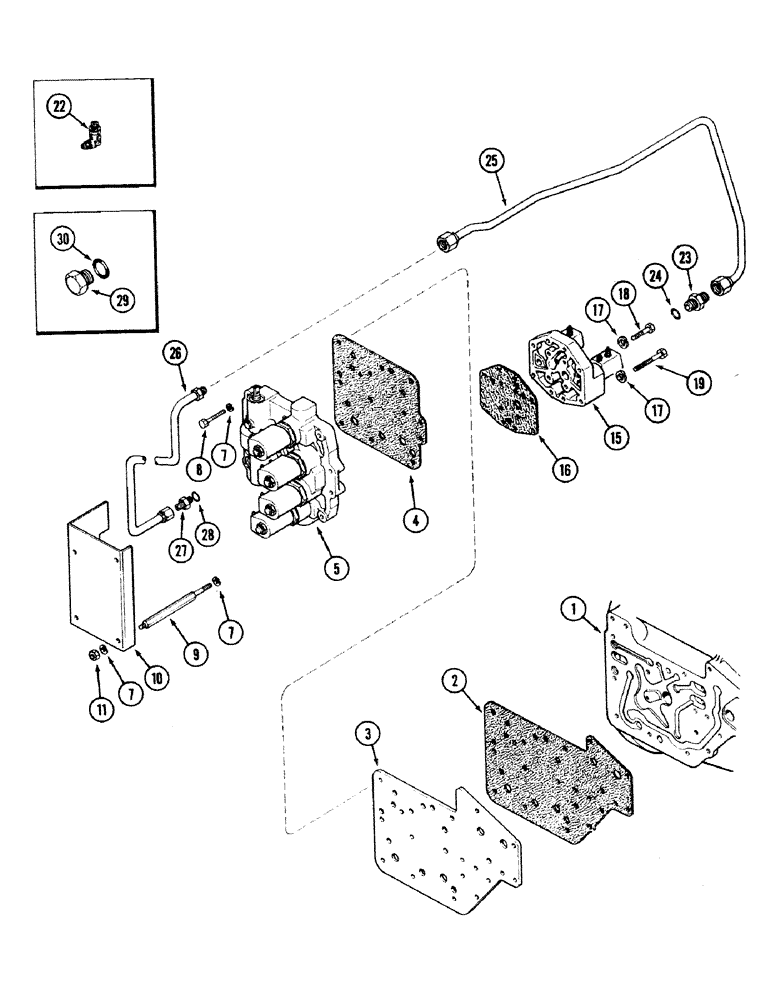

Запчасти Case IH 2594 (6-004) - HYDRAULIC MANIFOLD MOUNTING, ELECTRIC SHIFT (06) - POWER TRAIN

1

REF

INSTRUCTION

TUBE - torque (See Figure 6-2)

1шт.

2

1342414C1

MANIFOLD GASKET

- plate (Replaces A158395)

1шт.

3

A158396

PLATE

- manifold

1шт.

4

1342415C1

MANIFOLD GASKET

- manifold (Replaces A158498)

1шт.

5

REF

INSTRUCTION

MANIFOLD ASSEMBLY - electric shift (See Figure 6-6)

1шт.

7

192-81003

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

14шт.

8

113-2240

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

6шт.

9

A168325

STUD

- manifold cover

4шт.

10

A160836

COVER

- solenoid

1шт.

11

129-191

NUT,7/16"-14, G5

4шт.

15

REF

INSTRUCTION

MANIFOLD ASSEMBLY - dual range (See Figure 6-6), 24 speed transmission

1шт.

16

1342411C1

MANIFOLD GASKET

- manifold (Replaces A156552), dual range 24 speed transmission

1шт.

17

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Dual range 24 speed transmission 5/16"

12шт.

18

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch, Dual range 24 speed transmission

6шт.

19

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 x 3 inch NC, dual range 24 speed transmission

6шт.

22

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj o-ring (If equipped), dual range 24 speed transmission

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, dual range 24 speed transmission, Incl. Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Dual range 24 speed transmission

1шт.

25

A176715

TUBE

ASSEMBLY - dual range, left, 24 speed transmission

1шт.

26

A163235

TUBE

ASSEMBLY - dual range, right, 24 speed transmission

1шт.

27

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x o-ring boss, dual range 24 speed transmission, Includes: Ref. 28

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Dual range 24 speed transmission

1шт.

29

86512512

PLUG,7/8" - 14 ORB

(12 speed transmission), Dual range 24 speed transmission Hex Hd, 7/8"-14 ORB

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, Dual range 24 speed transmission

1шт.
