Запчасти Case IH 2594 (5-20) - FRONT WHEELS AND HUB (05) - STEERING

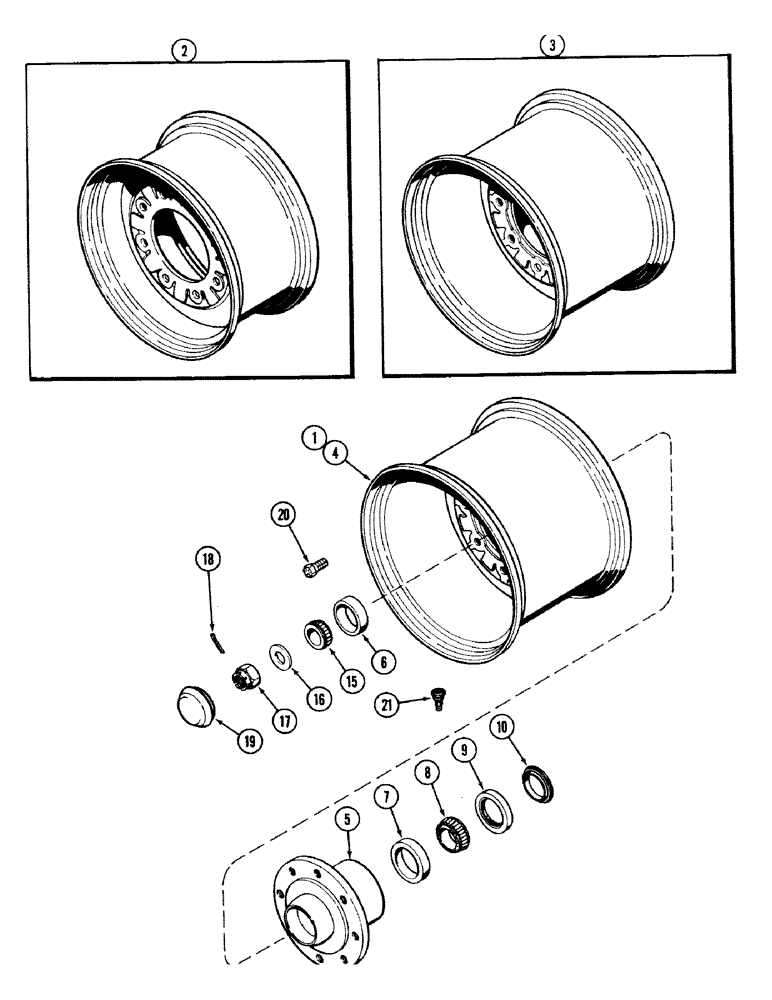

Схема запчастей Case IH 2594 - (5-20) - FRONT WHEELS AND HUB (05) - STEERING
16
21
9
1
2
19
5
4
17
3
18
15
10
8
20
7
6

Артикул

Название

Примечание

Количество

1

A162409

WHEEL

- 1-1/2 inch offset (For 16.5L x 16.1 tire)

2шт.

2

A61570

WHEEL

- 1-1/4 inch offset (For 11.00 x 16 tire)

2шт.

3

A62132

WHEEL

- no offset (For 14L x 16 tire)

2шт.

4

A37108

WHEEL

- 2 inch offset (For 18.4 x 16.1 tire)

2шт.

5

A66759

HUB

ASSEMBLY - front wheel, Includes: Refs. 6 and 7

2шт.

6

619387R1

BEARING CUP

CUP - bearing, outer

1шт.

7

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - bearing, inner

1шт.

8

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing inner

2шт.

9

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- oil

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- oil

2шт.

15

G15215

ROLLER BEARING

CONE - bearing, outer

2шт.

16

A62919

WASHER

- front wheel spindle

2шт.

17

425-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, slotted, 1-1/8 inch NF

2шт.

18

32-1228

COTTER PIN,3/16" x 1 3/4"

PIN split (Cotter), 3/16" x 1 3/4"

2шт.

19

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - hub (Order D143405)

2шт.

20

A62567

WHEEL BOLT

BOLT - hex, special, Serial Range: wheel-hub

16шт.

21

A38261

VALVE

- tire, tubeless

2шт.

Выбрано товаров: 17
