Запчасти Case IH 2594 (5-18) - STEERING TIE ROD (05) - STEERING

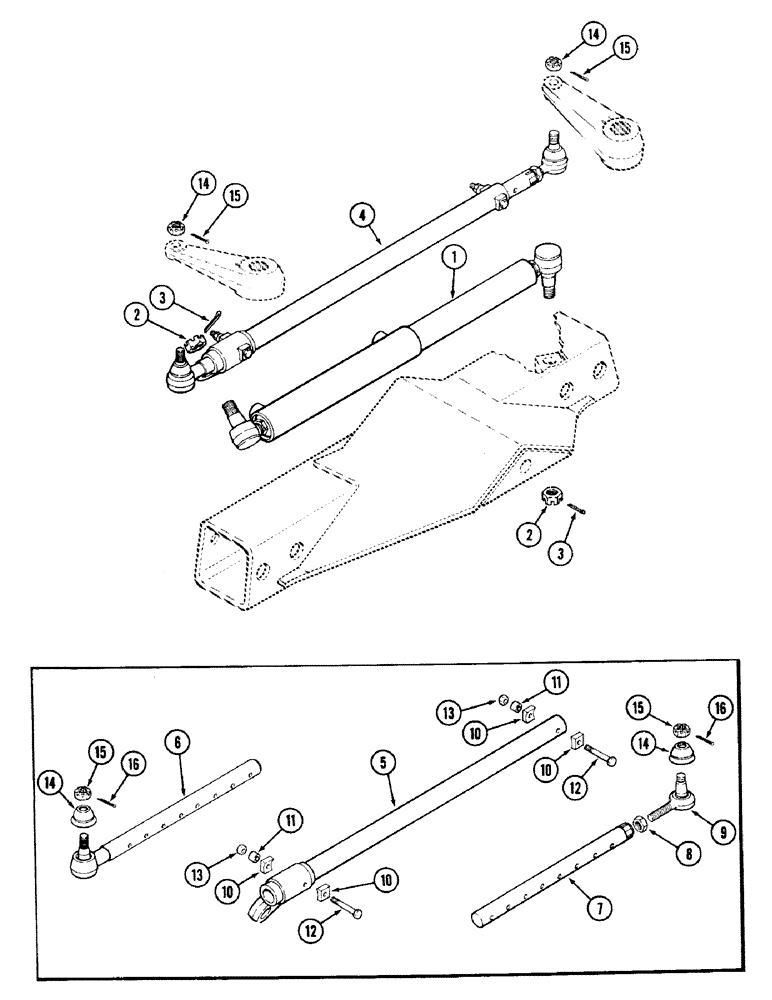

Схема запчастей Case IH 2594 - (5-18) - STEERING TIE ROD (05) - STEERING
14
9
10
11
4
13
15
15
12
1
2
3
10
15
7
14
5
16
8
10
16
15
10
12
13
3
6
11
14
2
14

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CYLINDER - steering (See Figure 5-12)

1шт.

2

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex, slotted, 7/8 inch NF

2шт.

3

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

2шт.

4

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie (Order components), Includes: Refs. 5 - 14

1шт.

5

A149033

TUBE

- tie rod

1шт.

6

A160197

ROD

END - tie rod, right

1шт.

7

A143876

ROD

END - tie rod, left

1шт.

8

F22580

NUT

- hex, special

1шт.

9

A162214

BALL

JOINT - ball, left

1шт.

10

A43369

CLAMP

- tie rod

2шт.

11

A145846

SPACER

- tie rod clamp

2шт.

12

275804R1

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8

2шт.

13

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

14

A160642

COVER

- dust

2шт.

15

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

2шт.

16

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

Выбрано товаров: 16
