Запчасти Case IH 2594 (5-16) - FRONT AXLE AND PIVOT, LONG 118 INCH WHEEL BASE (05) - STEERING

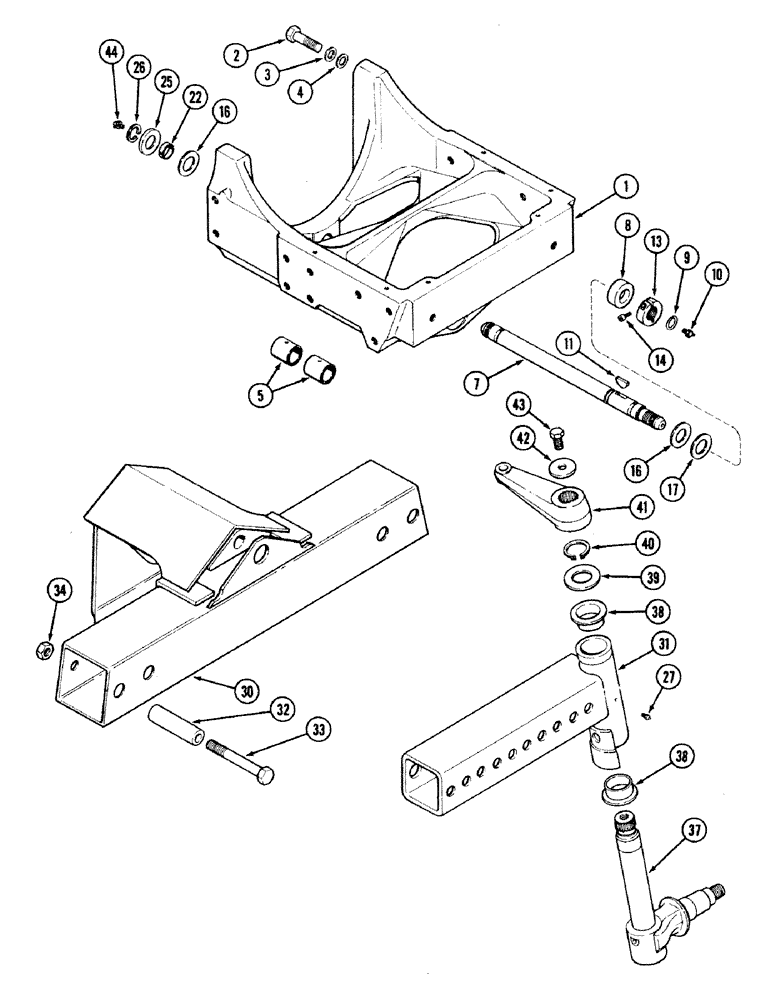

Схема запчастей Case IH 2594 - (5-16) - FRONT AXLE AND PIVOT, LONG 118 INCH WHEEL BASE (05) - STEERING
4
14
11
7
22
37
43
38
38
16
30
32
41
10
43
13
16
9
17
31
1
5
40
44
39
8
27
25
3
2
34
26
33

Артикул

Название

Примечание

Количество

1

A163364

SUPPORT ASSY.

SUPPORT - front axle

1шт.

2

326-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 8

4шт.

3

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch

4шт.

4

A26462

WASHER

- special, hardened

4шт.

5

A164817

BUSHING,38.13mm ID x 40.22mm OD x 50.8mm L

- pivot pin

2шт.

7

A164818

AXLE PIN,38.1mm OD x 590.55mm L

PIN - axle pivot

1шт.

8

A163361

COLLAR CLAMP

COLLAR - front

1шт.

9

A160576

RING

- retaining

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

11

126-43

WOODRUFF KEY,#128, 5/16" x 2 1/8"

KEY - Woodruff, No. 129

1шт.

13

A161075

COLLAR

ASSEMBLY - pivot shaft lock, Includes: Ref. 14

1шт.

14

62-514

BOLT (SPREADER),5/16" - 24 x 7/8"

BOLT - hex socket head, 5/16 NF x 7/8 inch

1шт.

16

A163363

WASHER

- flat, shim

1шт.

17

A163362

WASHER,38.23mm ID x 63.5mm OD x 3.05mm Thk

- thrust

1шт.

22

A163360

COLLAR CLAMP

COLLAR - rear, two halves

2шт.

25

95-81189

WASHER,38.89mm ID x 63.5mm OD x 5.41mm Thk

- flat, 1-17/32 x 2-1/2 x 7/32 inch

1шт.

26

R10197

RING

- retaining, pin

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

30

A163353

CENTER AXLE

AXLE - center section

1шт.

31

A143540

SHAFT

AXLE - left end section

1шт.

31

A143537

SHAFT

AXLE - right end section (Left shown)

1шт.

32

A139628

BUSHING

SPACER - axle mounting bolt

4шт.

33

413-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

- hex, 7/8 NC x 7-1/2 inch, grade 5

4шт.

34

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

37

A161274

SPINDLE

- front wheel

2шт.

38

A143358

BUSHING,57.05mm ID x 62.08mm OD x 25.7mm L

- spindle

4шт.

39

A35347

SHIM,.1345" Thk

Washer - Spindle retaining .1345" Thk

2шт.

40

103-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

41

A147122

ARM

- steering, left spindle

1шт.

41

A147121

ARM

- steering, right spindle (Left shown)

1шт.

42

A161870

WASHER

- steering arm

2шт.

43

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

2шт.

44

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

Выбрано товаров: 33
