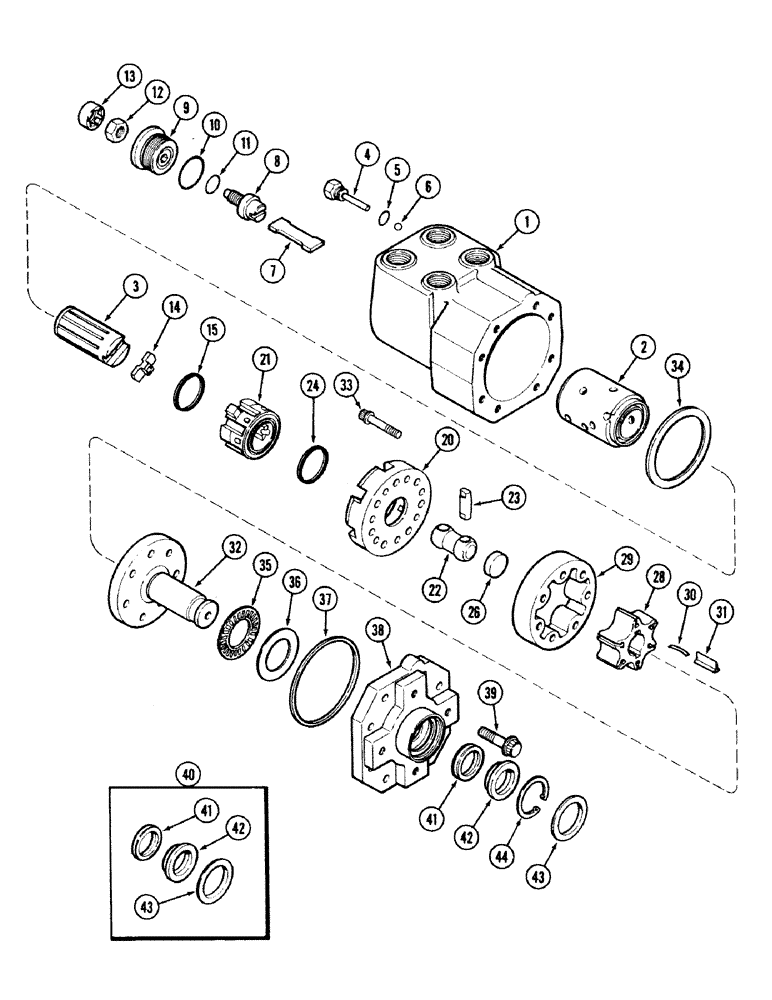

Запчасти Case IH 2594 (5-10) - HYDROSTATIC STEERING PUMP (05) - STEERING

A145863

PUMP

ASSEMBLY - steering (New), Includes: Refs. 1 - 44

1шт.

A47842

PUMP

2594, Reman For New P/N A145863, N.A. Only

1шт.

CORE

CORE-A/C COMPRESSOR

Return Number, For N.A. Only

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - housing (Order A145863)

1шт.

2

NSS

NOT SOLD SEPARAT

SLEEVE - valve (Order A145863)

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL - valve (Order A145863)

1шт.

4

A47019

PLUG

AND PIN ASSEMBLY - pump, Includes: Ref. 5

1шт.

5

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

6

A47018

BALL

- 9/32 inch diameter

1шт.

7

A45196

FAN

BLADE - torsion

2шт.

8

A45193

ADJUSTMENT SCREW,3/8" - 24 x 1.44"

SCREW - pump adjusting

1шт.

9

A47006

PLUG

ASSEMBLY - adjusting screw, Includes: Ref. 10

1шт.

10

A47005

O-RING,1.053" ID

- 1-3/64 ID x 7/64 inch

1шт.

11

A45195

O-RING,0.556" ID x 0.073"

- adjusting screw

1шт.

12

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex jam, 3/8 inch NF

1шт.

13

A47007

CAP

- pump

1шт.

14

A47668

RING

- drive

1шт.

15

A47421

SEALING RING

ASSEMBLY - sleeve

1шт.

A47419

MANIFOLD

ASSEMBLY - stator, Includes: Refs. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

MANIFOLD - pump (Order A47419)

1шт.

21

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump (Order A47419)

1шт.

22

A47014

LINK

- drive

1шт.

23

F19636

PIN

- lock

2шт.

24

A47421

SEALING RING

ASSEMBLY - manifold

1шт.

26

A47021

BUSHING

SPACER - drive link

1шт.

A47013

ROTOR

SET- pump, Includes: Refs. 28 - 31

1шт.

28

NSS

NOT SOLD SEPARAT

ROTOR - pump (Order A47013)

1шт.

29

NSS

NOT SOLD SEPARAT

STATOR - pump (Order A47013)

1шт.

30

A43412

SPRING

- vane

6шт.

31

A43413

RING, PISTON

VANE - pump

6шт.

32

A47009

SHAFT

- input

1шт.

33

A47000

SCREW,1/4" x 1 1/8"

- manifold, 12 point cap

7шт.

34

A160850

WASHER

- manifold

1шт.

35

T36441

THRUST BEARING,1.127" ID x 1.74" OD x 0.0781"

BEARING - thrust

1шт.

A47670

KIT

- thrust washers, Includes: Ref. 36

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.035 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.041 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.047 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.053 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.059 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.065 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.071 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.077 inch

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - thrust, 0.083 inch

1шт.

37

A47004

RING

- seal

1шт.

38

A47016

COVER

- upper, pump

1шт.

39

A48131

SCREW,1/4" x 1"

- upper cover, 12 point cap

8шт.

40

A47038

SEAL KIT,Pump Shaft

KIT - seal, Includes: Refs. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

42

NSS

NOT SOLD SEPARAT

SEAL - spacer

1шт.

43

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

- shaft

1шт.

44

A21145

SNAP RING,1.25, Int, #125

RING snap, 1.25", Int, #125

1шт.
