Запчасти Case IH 2594 (5-08) - OIL COOLER SYSTEM (05) - STEERING

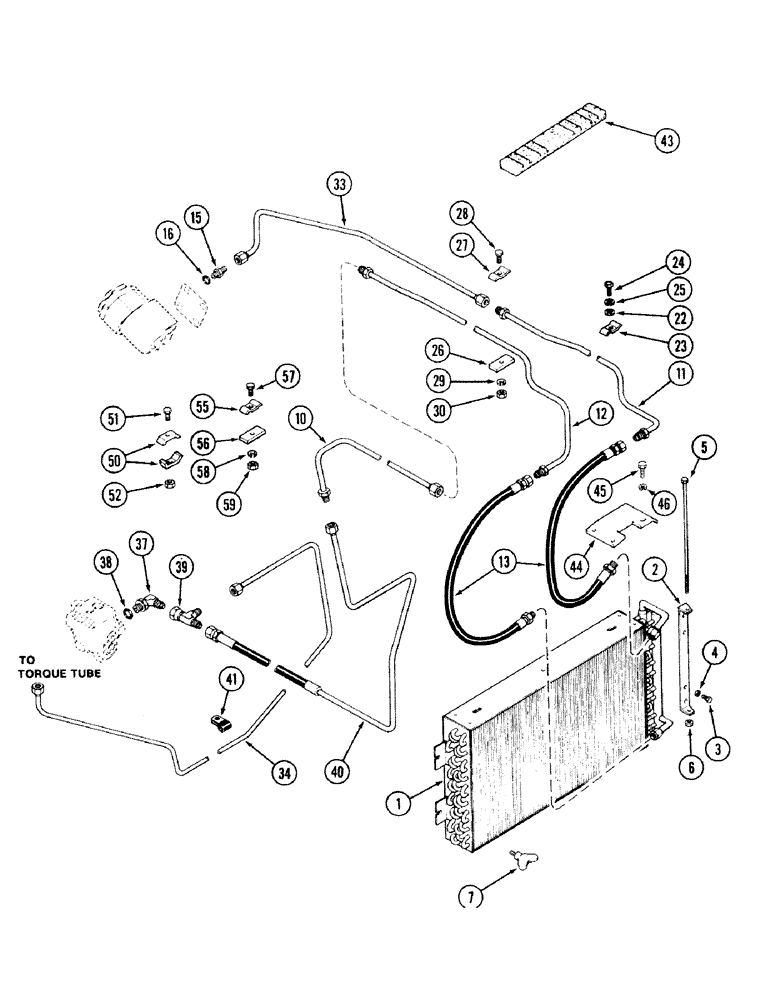

Схема запчастей Case IH 2594 - (5-08) - OIL COOLER SYSTEM (05) - STEERING
59
24
10
44
45
40
12
25
34
15
22
3
55
41
50
23
33
1
58
38
11
52
37
46
2
30
7
6
43
5
28
29
21
51
57
4
39
56
26
16
13

Артикул

Название

Примечание

Количество

1

A160190

COOLER

- oil, transmission

1шт.

2

A160194

SUPPORT

BRACKET - pivot, oil cooler

1шт.

3

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

2шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

413-4204

BOLT,Hex, 1/4" - 20 x 12-3/4", Gr 5

- hex, 1/4 NC x 12-3/4 inch

1шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

1шт.

7

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thumb, 5/16 inch NC

2шт.

10

A164595

TUBE ASSY.

TUBE - center section, oil cooler outlet

1шт.

11

A166581

TUBE ASSY.

TUBE - inlet, oil cooler

1шт.

12

A166580

TUBE ASSY.

TUBE - outlet, oil cooler

1шт.

13

A36162

TUBE

HOSE - inlet and outlet

2шт.

15

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 16

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

22

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

23

A63323

CLAMP

- tube

1шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

26

A60864

PLATE

- tube clamp

1шт.

27

A63323

CLAMP

- tube

2шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

30

425-105

NUT,5/16"-18, G5

2шт.

33

A147897

TUBE

- steering pump

1шт.

34

A185015

TUBE

- brake valve to sump (Transmission Serial No. 16283224 and after)

1шт.

34

A164596

TUBE ASSY.

TUBE - brake valve to sump ( Prior to Transmission Serial No. 16283224)

1шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj. O-ring boss, Includes: Ref. 38

1шт.

38

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

39

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj. straight thread

1шт.

40

A164593

TUBE ASSY.

HOSE - oil cooler return

1шт.

41

49836

CLAMP

- tube

2шт.

43

A149298

SEAL

- cooler and air conditioning tubes

1шт.

44

A145791

COVER

- tubes

1шт.

45

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

46

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

50

A60224

CLAMP

- tube

2шт.

52

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

55

A139065

CLAMP

- tube

1шт.

56

A60864

PLATE

- tube clamp

1шт.

57

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

58

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

59

425-105

NUT,5/16"-18, G5

1шт.

24

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

51

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

Выбрано товаров: 42
