Запчасти Case IH 2594 (5-02) - STEERING WHEEL AND ADJUSTABLE COLUMN (05) - STEERING

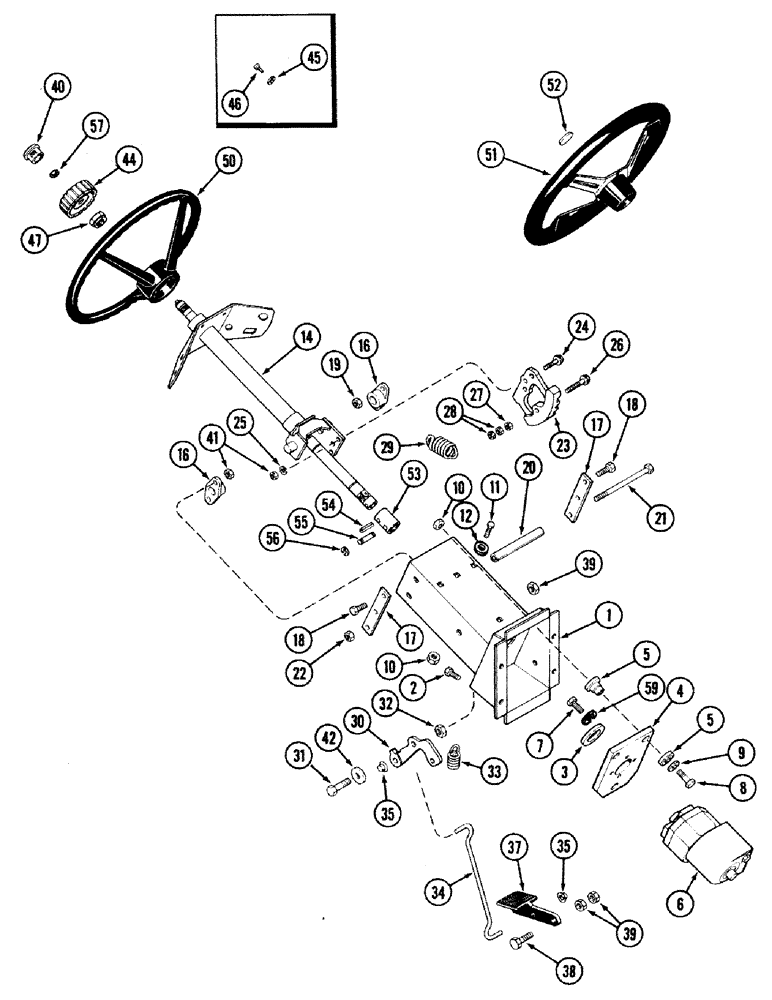

Схема запчастей Case IH 2594 - (5-02) - STEERING WHEEL AND ADJUSTABLE COLUMN (05) - STEERING
23
2
17
24
34
10
53
3
28
29
20
57
54
4
19
12
50
16
14
41
11
5
51
18
35
6
9
33
17
38
46
39
31
27
8
7
55
26
59
40
10
56
30
1
22
42
44
5
45
47
25
37
16
52
18
21
35
32
39

Артикул

Название

Примечание

Количество

1

A167112

SUPPORT

- steering column

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch

4шт.

3

A145915

SEAL,41.148mm ID x 57.15mm OD x 12.7mm Thk

- steering pump mounting

1шт.

4

A164625

PLATE

- mounting, steering pump

1шт.

5

A141515

ISOLATOR

MOUNT - steering pump

3шт.

6

REF

INSTRUCTION

PUMP ASSEMBLY - hydrostatic steering (See Figure 5-10)

1шт.

7

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

9

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

3шт.

10

131-133

NUT,Ret, 3/8"-16

Speed grip Ret, 3/8"-16

2шт.

11

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch

2шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

14

REF

INSTRUCTION

COLUMN ASSEMBLY - steering (See Figure 5-4)

1шт.

16

A77310

SUPPORT,0.754" ID x 1.375" OD x 0.81"

- column pivot

2шт.

17

A143314

STRAP

- support brace

2шт.

18

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

4шт.

19

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex, jam, self-locking, 5/16 inch NC

4шт.

20

A143315

BUSHING

SPACER - column support

1шт.

21

413-596

BOLT,Hex, 5/16" - 18 x 6", Gr 5

- hex, 5/16 NC x 6 inch

1шт.

22

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

23

A169439

PLATE

QUADRANT - column tilt

1шт.

24

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.

25

492-11038

LOCK WASHER,3/8"

3шт.

26

409-7632

BOLT,Hex Flg, 3/8" - 16 x 2", Spcl

- hex flange head, 3/8 NC x 2 inch

1шт.

27

231-5146

FLANGE NUT,3/8"-16

1шт.

28

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

29

A143316

SPRING

- tilt return

1шт.

30

A169260

LATCH

- column tilt

1шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

32

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

33

A64125

SPRING

- tilt latch

1шт.

34

A164787

ROD

- tilt latch

1шт.

35

A165668

CAP

- Tinnerman

2шт.

37

A165426

PEDAL

- column tilt

1шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

40

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16 inch

1шт.

41

425-106

NUT,3/8"-16, Cl 5

3шт.

42

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

44

A141827

CAP

KNOB - lock, steering wheel

1шт.

45

A166993

WASHER

- wheel knob screw (if equipped)

1шт.

46

261-5448

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - self-tapping, pan head Phillips, No. 8 NC x 1/2 inch (if equipped)

1шт.

47

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, wheel

1шт.

50

A65544

STEERING WHEEL

(Hard vinyl)

1шт.

51

A167953

WHEEL

- steering (Leather) (Order A65544)

1шт.

52

A180055

CAP ASSY.

INSERT - steering wheel

1шт.

53

A147291

COUPLING

-, Serial Range: U-joint-pump

1шт.

54

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

55

A64000

PIN,9.42mm OD x 38.1mm L

-, Serial Range: pump-shaft

1шт.

56

100-3437

SNAP RING,#37, Ext

RING, SNAP, #37, Ext

2шт.

57

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC (If equipped)

1шт.

59

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
