Запчасти Case IH 2594 (4-66) - HEADLINER MOUNTED RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS

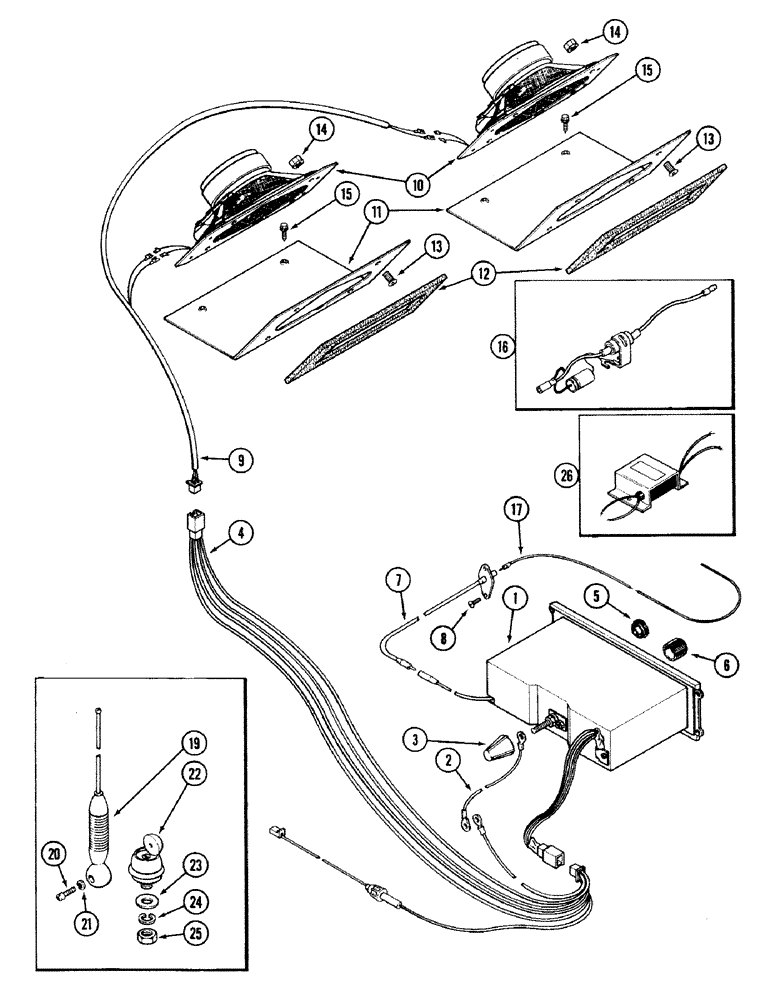

Схема запчастей Case IH 2594 - (4-66) - HEADLINER MOUNTED RADIO AND SPEAKERS (04) - ELECTRICAL SYSTEMS
8
3
14
4
17
7
20
23
15
25
10
13
26
21
2
24
12
6
1
15
5
19
13
14
9
11
16
22

Артикул

Название

Примечание

Количество

1

A180796

RADIO

KIT - radio, AM (Used with 3 piece headliner control panel) (Order ZAE1PB), Includes: Refs. 2 - 6

1шт.

1

A167180

RADIO

KIT - radio, AM (Used with 1 piece headliner control Panel), Includes: Refs. 2 - 6

1шт.

1

A180797

RADIO

KIT - radio, AM-FM stereo (Used with 3 piece headliner control panel) (Order ZAE1ETX), Includes: Refs. 2 - 6

1шт.

1

A167181

RADIO

KIT - radio, stereo (Used with 1 piece headliner control panel), Includes: Refs. 2 - 6

1шт.

1

A167182

RADIO

KIT - radio, AM-FM with eight track tape player (Used with 1 piece headliner control panel), Includes: Refs. 2 - 6

1шт.

1

A180798

RADIO

KIT - radio, AM-FM stereo with cassette tape player (Used with 3 piece headliner control panel) (Order ZAE1170), Includes: Refs. 2 - 6

1шт.

1

A167183

RADIO

KIT - radio, AM-FM with cassette tape player (Used with 1 piece headliner control panel), Includes: Refs. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

WIRE - radio ground

1шт.

3

NSS

NOT SOLD SEPARAT

NUT - retaining

1шт.

4

NSS

NOT SOLD SEPARAT

HARNESS - radio wire

1шт.

5

A180058

KNOB

- control, volume

1шт.

6

A180059

KNOB

- control, tuning

1шт.

7

F64799

CABLE

- antenna

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, No. 10-16 x 3/4 inch (Order 265-16512 and F64315)

2шт.

9

F66160

HARNESS

- speaker leads

1шт.

10

1983202C1

SPEAKER

- radio (Replaces F66124)

2шт.

11

F64667

PLATE

- speaker mounting

2шт.

12

F64793

SEAL

GASKET - speaker sealing

2шт.

13

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan head Phillips, No. 10 NC x 3/4 inch

8шт.

14

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

8шт.

15

187-579

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

4шт.

16

F64184

CAPACITOR

- noise

1шт.

17

F64182

CABLE

- aerial

1шт.

97080C1

ANTENNA

- AM/FM radio, Includes: Refs. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

ANTENNA - radio

1шт.

20

177-99

SCREW,Sl Fil Hd, #10 - 32 x 5/8"

- slotted head, No. 10-32 x 5/8 inch

1шт.

21

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

1шт.

22

NSS

NOT SOLD SEPARAT

BASE - antenna

1шт.

23

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

25

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

1шт.

26

A180120

FILTER

- noise

1шт.

1131878R1

RADIO

ATTACHMENT - AM-FM, fender mounted with antenna (Not Shown) (Replaces A164225) (Order ZVX300TRA)

1шт.

Выбрано товаров: 33
