(4-64) - SPEED SENSOR SHIELD, IMPLEMENT MONITOR HARNESS

Запчасти Case IH 2594 (4-64) - SPEED SENSOR SHIELD, IMPLEMENT MONITOR HARNESS (04) - ELECTRICAL SYSTEMS

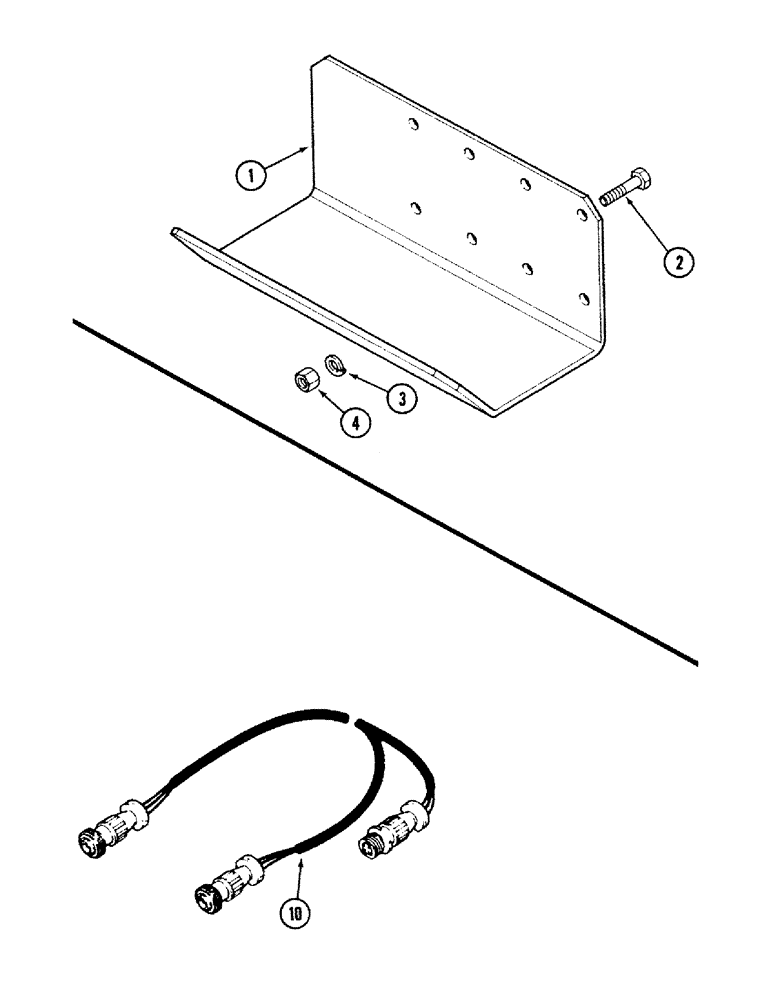

Схема запчастей Case IH 2594 - (4-64) - SPEED SENSOR SHIELD, IMPLEMENT MONITOR HARNESS (04) - ELECTRICAL SYSTEMS
3
10
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A185774

SHIELD

- speed sensor

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

10

A177090

HARNESS

- monitor, implement

1шт.
