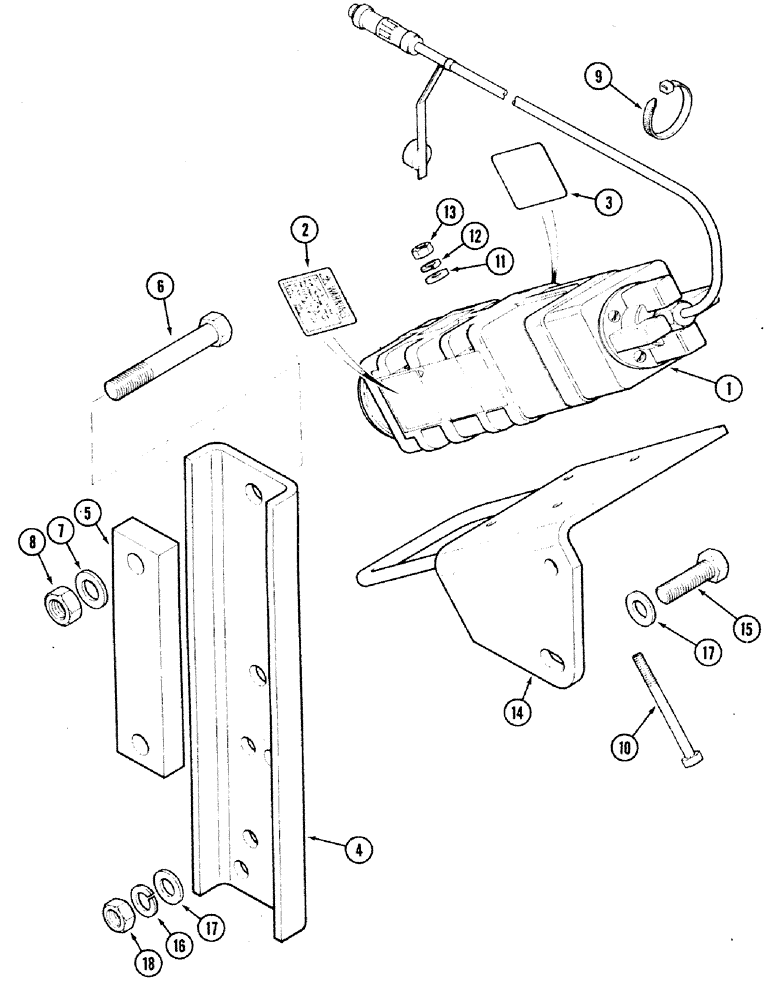

Запчасти Case IH 2594 (4-62) - GROUND SPEED SENSOR (04) - ELECTRICAL SYSTEMS

1

1983292C1

SENSOR

- ground speed, Includes: Ref. 2 and 3

1шт.

1

BN95030AR

SENSOR

2594 CASE DIESEL TRACTOR, ground speed (1/84-12/87), Reman for New PN 1983292C1

1шт.

1

BN95030AC

CORE-SENSOR

Return Number

1шт.

2

A187743

WARNING DECAL

DECAL - warning, microwave signals (English)

1шт.

3

A187756

DECAL

- warning, microwave signals (French)

1шт.

4

A167568

BRACKET

- radar mounting

1шт.

5

A167577

PLATE

- radar clamp

1шт.

6

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

Hex, M16 x 70, 8.8

2шт.

7

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

6шт.

8

825-1416

NUT,M16, Cl 8

2шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

10

413-464

BOLT,Hex, 1/4" - 20 x 4", Gr 5

4шт.

11

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

14

1960847C2

SUPPORT

BRACKET - speed sensor

1шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

18

825-1410

NUT,M10, Cl 8

2шт.
