Запчасти Case IH 2594 (4-58) - ELECTRIC POWER ATTACHMENT, IMPLEMENT MONITOR (04) - ELECTRICAL SYSTEMS

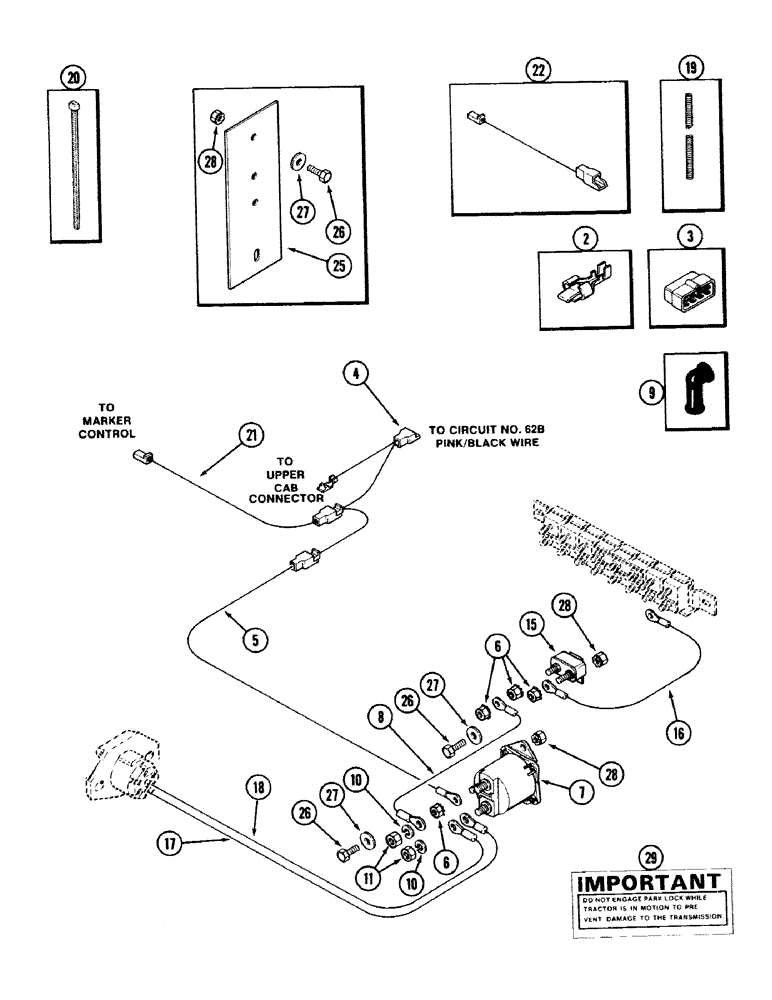

Схема запчастей Case IH 2594 - (4-58) - ELECTRIC POWER ATTACHMENT, IMPLEMENT MONITOR (04) - ELECTRICAL SYSTEMS
28
18
6
28
8
27
4
22
10
28
11
19
26
21
3
26
25
7
2
16
17
27
15
27
5
29
20
9
26
6
10

Артикул

Название

Примечание

Количество

A181779

ATTACHMENT - electric power (Order components), Includes: Refs. 2 - 29

1шт.

2

223-104

TERMINAL CONNECTOR

TERMINAL - female, 1/4 inch blade

2шт.

3

223-155

ELEC CONNECTOR,Female, 1 Pin

CONNECTOR - male, 1 contact

2шт.

4

A181760

CABLE

WIRE - cab connector

1шт.

5

A181762

ELECTRICAL WIRE

WIRE - power to solenoid, red 50 inch

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

4шт.

7

107655C1

SOLENOID SWITCH

SWITCH ASSEMBLY - magnetic cab power

1шт.

8

A181754

ELECTRICAL WIRE

WIRE - solenoid to circuit breaker, red 6 inch

1шт.

9

399470R1

BOOT

- cable

2шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

15

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 amp

1шт.

16

A181764

ELECTRICAL WIRE

WIRE - circuit breaker to circuit breaker, red 15 inch

1шт.

17

A181763

ELECTRICAL WIRE

WIRE - solenoid to auxiliary outlet, red 240 inch

1шт.

18

A181756

ELECTRICAL WIRE

WIRE - solenoid to auxiliary outlet, blue 240 inch

1шт.

19

A181759

CONDUIT

- convoluted

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

20шт.

21

A181761

CABLE

WIRE - marker control

1шт.

22

A181757

ELECTRICAL WIRE

WIRE - combine console module, black 150 inch

1шт.

25

A181751

SPACER

PLATE - relay mounting (Not used)

1шт.

26

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

27

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

28

193-1006

NUT,Keps, w/LW, 1/4"-20

- hex, with external tooth lock washer, 1/4 inch NC

4шт.

29

321-5264

DECAL

- park lock

1шт.

Выбрано товаров: 24
