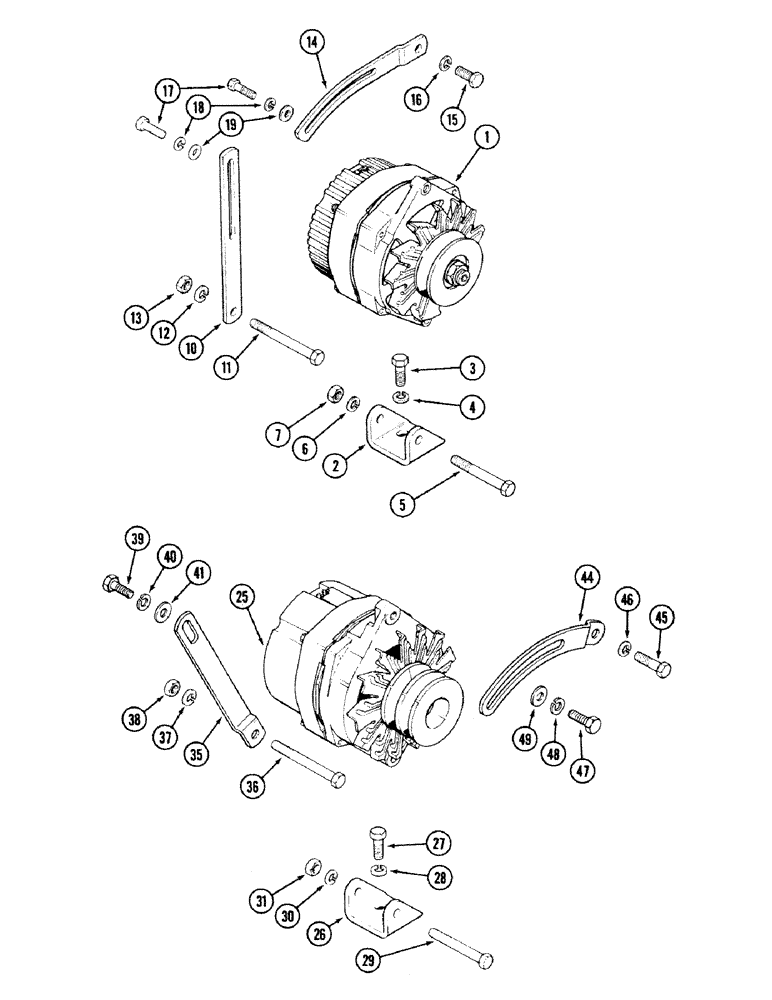

Запчасти Case IH 2594 (4-46) - ALTERNATOR MOUNTING, 72 AMPERE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-48)

1шт.

2

A160391

BRACKET

- alternator mounting

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

4

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

10

A59098

STRAP

- adjusting

1шт.

11

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

12

492-11038

LOCK WASHER,3/8"

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

A145326

STRAP

- adjusting

1шт.

15

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

16

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

17

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 25 mm

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

25

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-50), 105 ampere

1шт.

26

A160391

BRACKET

- alternator mounting, 105 ampere

1шт.

27

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, 105 ampere

2шт.

28

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, , 105 ampere 3/8"

2шт.

29

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

105 ampere Hex, 3/8"-16 x 3", G5

1шт.

30

492-11038

LOCK WASHER,3/8"

105 ampere 3/8"

1шт.

31

425-106

NUT,3/8"-16, Cl 5

105 ampere 3/8"-16, G5

1шт.

35

A163125

STRAP

- rear support, 105 ampere

1шт.

36

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch, 105 ampere

1шт.

37

492-11038

LOCK WASHER,3/8"

105 ampere 3/8"

1шт.

38

425-106

NUT,3/8"-16, Cl 5

105 ampere 3/8"-16, G5

1шт.

39

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

105 ampere Hex, M10 x 25, 8.8, Full Thd

1шт.

40

892-11010

LOCK WASHER,M10

105 ampere M10

1шт.

41

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), 105 ampere 3/8"

1шт.

44

A163126

STRAP

- alternator adjusting, 105 ampere

1шт.

45

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

105 ampere Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

46

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, , 105 ampere 3/8"

1шт.

47

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

105 ampere Hex, M10 x 25, 8.8, Full Thd

1шт.

48

892-11010

LOCK WASHER,M10

105 ampere M10

1шт.

49

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), 105 ampere 3/8"

1шт.
