Запчасти Case IH 2594 (4-42) - A187728 STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

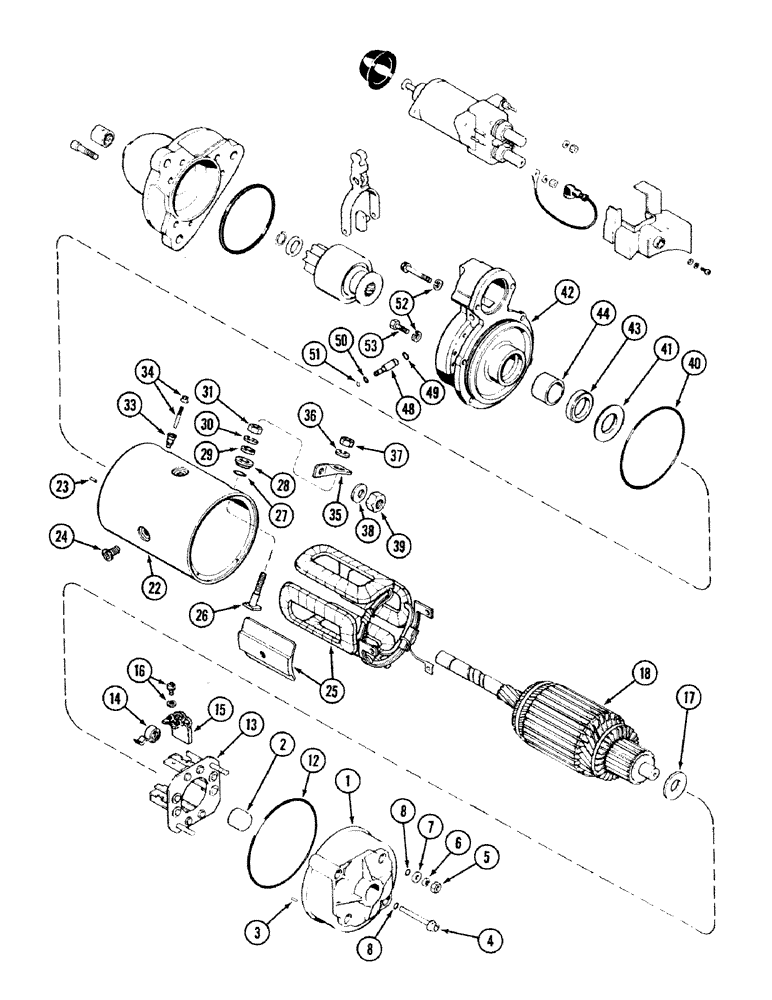

Схема запчастей Case IH 2594 - (4-42) - A187728 STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS
24
22
37
43
18
27
38
33
6
42
28
16
1
34
13
26
41
4
7
35
23
36
17
25
14
30
15
50
5
53
52
44
8
48
2
8
31
12
3
39
51
49
29
40

Артикул

Название

Примечание

Количество

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, Nippondenso 128000-5331, Includes: Refs. 1 - 53 and 54 - 73 on fig. 4-44

1шт.

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

AC187728

CORE-STARTER

Return Part Number

1шт.

A187728GV

STARTER MOTOR

Value

1шт.

1

A187851

HOUSING

FRAME ASSEMBLY - end, commutator, Includes: Refs. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - needle

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, locating

1шт.

4

31051R1

BOLT,Hex Flange, M6 x 1.0 x 60mm, Grade 8.8

BOLT - hex flange, 6 x 60 mm

4шт.

5

825-2306

FLANGE NUT,M6 x 1, Flg, Cl 8

NUT - hex, flange, 6 mm

2шт.

6

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm

2шт.

7

NSS

NOT SOLD SEPARAT

WASHER - flat, 6 mm

2шт.

8

A187857

O-RING,5.8 mm ID x 1.9 mm

O-RING - sealing

4шт.

12

NSS

NOT SOLD SEPARAT

O-RING - frame

1шт.

13

A187852

BRUSH HOLDER

HOLDER, BRUSH HOLDER ASSEMBLY - brush, Includes: Ref. 14

1шт.

14

A187823

SPRING

SPRING - brush

4шт.

15

A187794

BRUSH, COMMUTATOR

BRUSH BRUSH ASSEMBLY - starter

4шт.

16

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

SCREW - slotted, 5 mm - 0.8 x 12 mm

4шт.

17

A47813

WASHER

WASHER - end, armature

1шт.

18

A187847

ARMATURE

ARMATURE ASSEMBLY - starter

1шт.

22

A187846

HOUSING ASSY.

HOUSING ASSEMBLY - field coil, Includes: Refs. 23 - 33

1шт.

23

NSS

NOT SOLD SEPARAT

PIN - dowel, locating

2шт.

24

NSS

NOT SOLD SEPARAT

SCREW - retaining, coil

4шт.

25

NSS

NOT SOLD SEPARAT

COIL ASSEMBLY - field

1шт.

26

NSS

NOT SOLD SEPARAT

TERMINAL - field

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - terminal

1шт.

28

NSS

NOT SOLD SEPARAT

BUSHING - insulation

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - flat plate

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

31

NSS

NOT SOLD SEPARAT

NUT - hex, terminal

1шт.

33

NSS

NOT SOLD SEPARAT

TERMINAL STUD ASSEMBLY - field

1шт.

34

A187862

FLANGE NUT

NUT - hex, terminal

1шт.

35

A187858

FITTING

CONNECTOR - terminal B

1шт.

36

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

37

825-1410

NUT,M10, Cl 8

Nut, M10, Cl 8

1шт.

38

A187859

WASHER

WASHER - wave

1шт.

39

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

40

NSS

NOT SOLD SEPARAT

O-RING - sealing, housing

1шт.

41

A187860

WASHER

WASHER - plate, armature

1шт.

42

A187850

HOUSING

HOUSING ASSEMBLY - lever, Includes: Refs. 43 and 44

1шт.

43

NSS

NOT SOLD SEPARAT

SEAL - oil, housing

1шт.

44

NSS

NOT SOLD SEPARAT

BEARING - housing

1шт.

48

A187865

KIT

PIN KIT - lever, Includes: Refs. 49 - 51

1шт.

49

NSS

NOT SOLD SEPARAT

O-RING - pin, large

1шт.

50

NSS

NOT SOLD SEPARAT

O-RING - pin, small

1шт.

51

NSS

NOT SOLD SEPARAT

RING - retaining, pin

1шт.

52

A49815

LOCK WASHER

WASHER - lock

4шт.

53

A187861

BOLT,Hex, M7 x 23mm

BOLT - hex, housing M7 x 23 mm

4шт.
