Запчасти Case IH 2594 (4-40) - A162469 STARTER ASSEMBLY, (CONTD) (04) - ELECTRICAL SYSTEMS

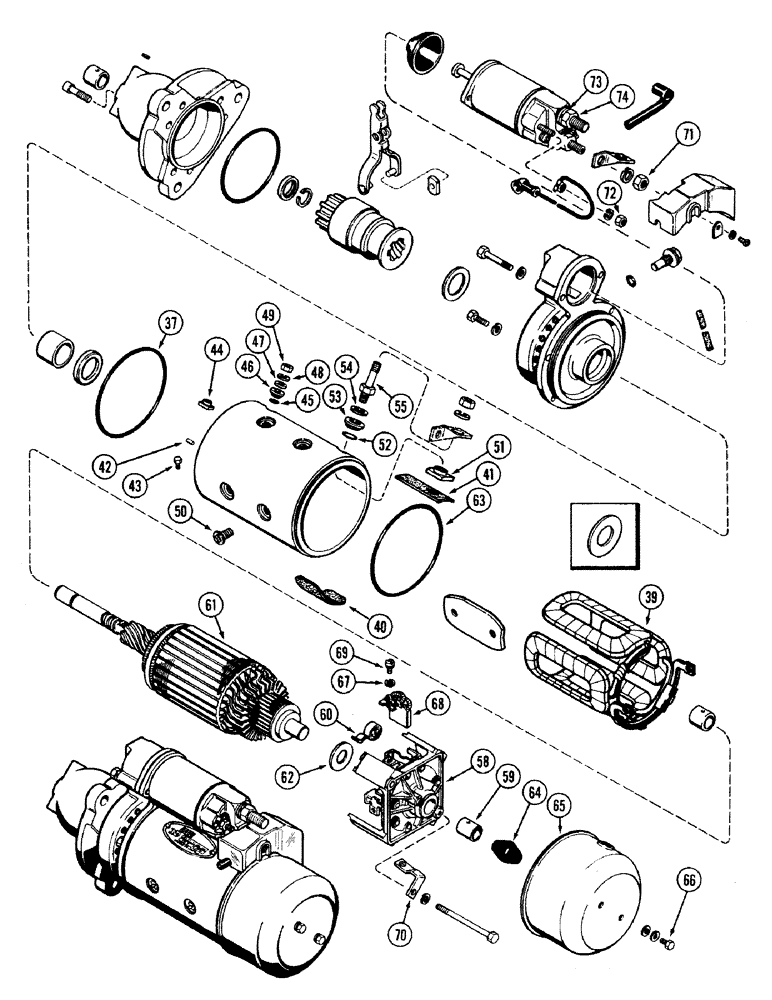

Схема запчастей Case IH 2594 - (4-40) - A162469 STARTER ASSEMBLY, (CONTD) (04) - ELECTRICAL SYSTEMS
40
47
69
67
55
45
44
41
74
58
71
72
49
48
65
63
46
51
53
59
70
62
64
68
66
39
60
61
50
73
54
37
42
52
43

Артикул

Название

Примечание

Количество

A162469

STARTING MOTOR

STARTER ASSEMBLY - engine, Nippondenso no. 028000-7430, Includes: Refs. 37 - 55 & 2 - 33 on Figure 4-38

1шт.

37

A47820

O-RING

- yoke to center bearing

1шт.

A47821

YOKE

ASSEMBLY - FIELD COIL

1шт.

39

A47822

COIL

ASSEMBLY - field

1шт.

40

A47833

INSULATOR

- field

1шт.

41

A47832

INSULATOR

- field

1шт.

42

A47824

PIN

- dowel, yoke, Includes: Refs. 43 - 55

1шт.

43

614-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

1шт.

44

A47825

BUSHING

- terminal insulating, inner

1шт.

45

A47826

RING

O-RING - terminal

1шт.

46

A47827

BUSHING

- terminal insulating, outer

1шт.

47

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

1шт.

48

89211005

WASHER - lock, 5 mm

2шт.

49

825-1405

NUT,M5, Cl 8

1шт.

50

A47823

SCREW,M10 x 1.5 x 1.5mm

- flat head, 10 mm - 1.50 x 20 mm

8шт.

51

A47829

BUSHING

- inner, terminal insulating

1шт.

52

A47830

RING

O-RING - terminal

1шт.

53

A47831

BUSHING

- outer, terminal insulating

1шт.

54

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.

55

A47828

BOLT

- terminal

1шт.

58

A47814

FRAME

ASSEMBLY - end, commutator, Includes: Refs. 59 and 60

1шт.

59

A47784

BUSHING

- end frame

1шт.

60

A187823

SPRING

- brush (Replaces A47815)

4шт.

61

A47812

ARMATURE

ASSEMBLY - starter

1шт.

62

A47813

WASHER

- end, armature

1шт.

63

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

64

A47835

GASKET

- end cover

1шт.

65

A47834

COVER

- end, starter

1шт.

66

614-5010

BOLT,Hex, M5 x 0.8 x 10mm, Cl 8.8, Full Thd

2шт.

67

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

68

A187794

BRUSH, COMMUTATOR

BRUSH ASSEMBLY - starter (Replaces A47817)

4шт.

69

A47816

SCREW,Pan Cross, M5 x 0.8 x 12mm

- slotted, 5 mm - 0.8 x 12 mm

4шт.

70

47818

CONNECTOR - brush, Includes: Refs. 71 - 73

2шт.

71

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

73

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

74

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

Выбрано товаров: 36
