Запчасти Case IH 2594 (4-36) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS

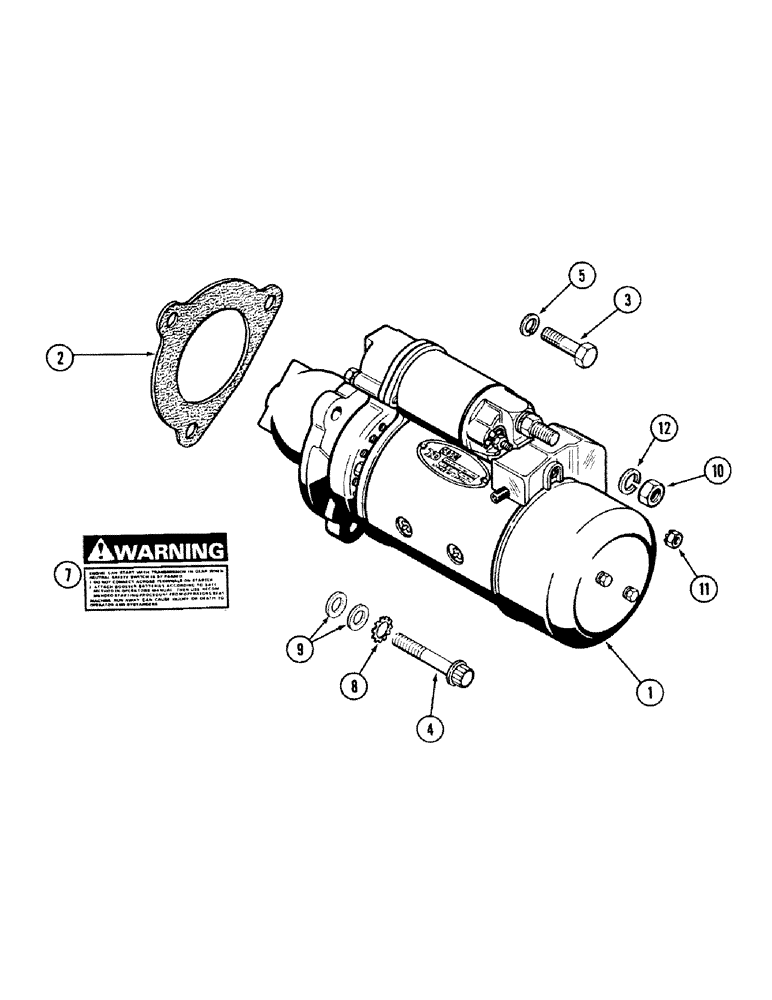

Схема запчастей Case IH 2594 - (4-36) - STARTER MOUNTING (04) - ELECTRICAL SYSTEMS
3
7
9
10
1
5
8
2
12
4
11

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

STARTER - engine (See Figure 4-38 or 4-42)

1шт.

87297380

REMAN-STARTER

Remanufactured Starter; For N.A. only

1шт.

87297381

CORE-STARTER

Return number - For N.A. only

1шт.

2

A27933

GASKET

GASKET - starting motor (Order 1536339C1)

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - hex, 1/2 NC x 1-3/4 inch

2шт.

4

166-1007

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

BOLT - 12 point, 1/2 NC x 3-1/4 inch, grade 8

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

321-3709

DECAL

DECAL - warning, starting (Order 321-37040)

1шт.

8

A34650

LOCK WASHER

WASHER - external lock

1шт.

9

A75865

WASHER

WASHER - starter motor mounting

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

11

193-1000

NUT,Keps, w/LW,#10-32

NUT - hex, with external tooth lock washer, no. 10 NF

1шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

Выбрано товаров: 13
