Запчасти Case IH 2594 (4-34) - BATTERY, CABLES AND BATTERY BOX (04) - ELECTRICAL SYSTEMS

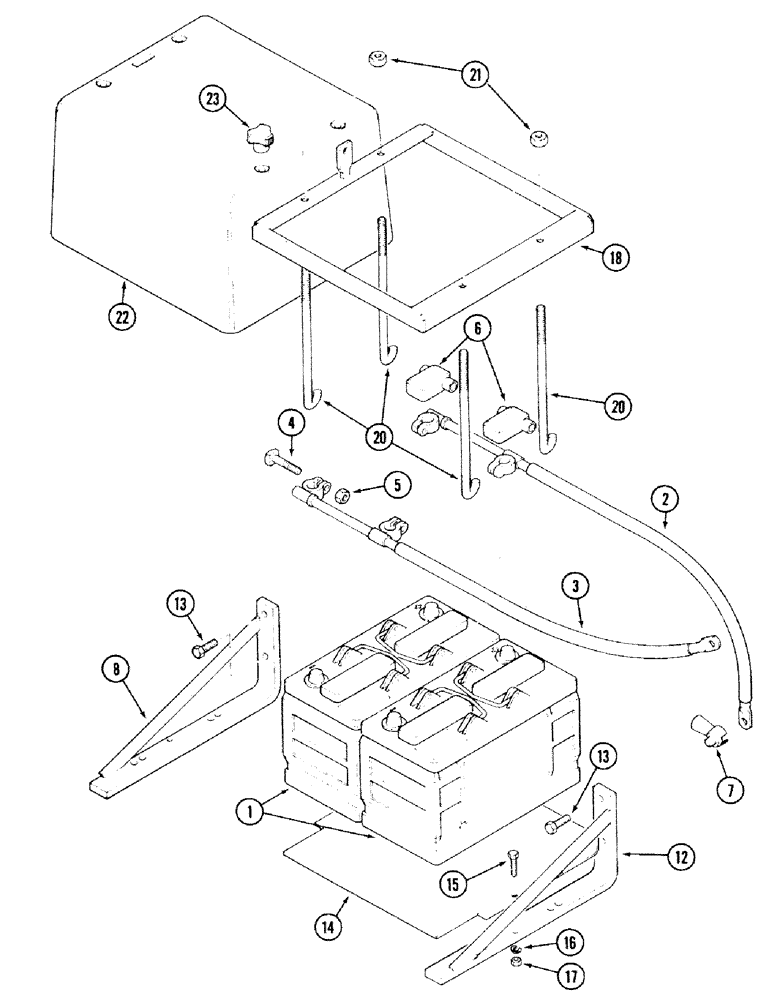

Схема запчастей Case IH 2594 - (4-34) - BATTERY, CABLES AND BATTERY BOX (04) - ELECTRICAL SYSTEMS
4
7
20
20
15
21
5
23
13
22
13
16
14
1
2
12
17
18
6
3
8

Артикул

Название

Примечание

Количество

1

A186006

DRY BATTERY

BATTERY - 12 volt (Order BMF31F)

2шт.

2

A185658

CABLE

- battery, positive

1шт.

3

A169871

NEG BATTERY CABLE

CABLE - battery, negative

1шт.

4

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch, grade 2

4шт.

5

129-737

NUT

- hex, 5/16 inch NC

4шт.

6

A139372

CAP

- protection, battery terminal

2шт.

7

A181302

BOOT

- terminal

1шт.

8

A177859

BRACKET

- battery mounting, rear

1шт.

12

A177856

BRACKET

- battery mounting, front

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

14

A177862

PLATE

- battery

1шт.

15

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6 - 1 x 25 mm

2шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

17

825-1406

NUT,M6, Cl 8

2шт.

18

A185765

CLAMP

RETAINER - battery

1шт.

20

A177866

BOLT

BOLT - battery hold-down

4шт.

21

425-105

NUT,5/16"-18, G5

4шт.

22

A185790

COVER

- battery

1шт.

23

A185783

KNOB

- black plastic, 5/16 inch NC

4шт.

Выбрано товаров: 19
