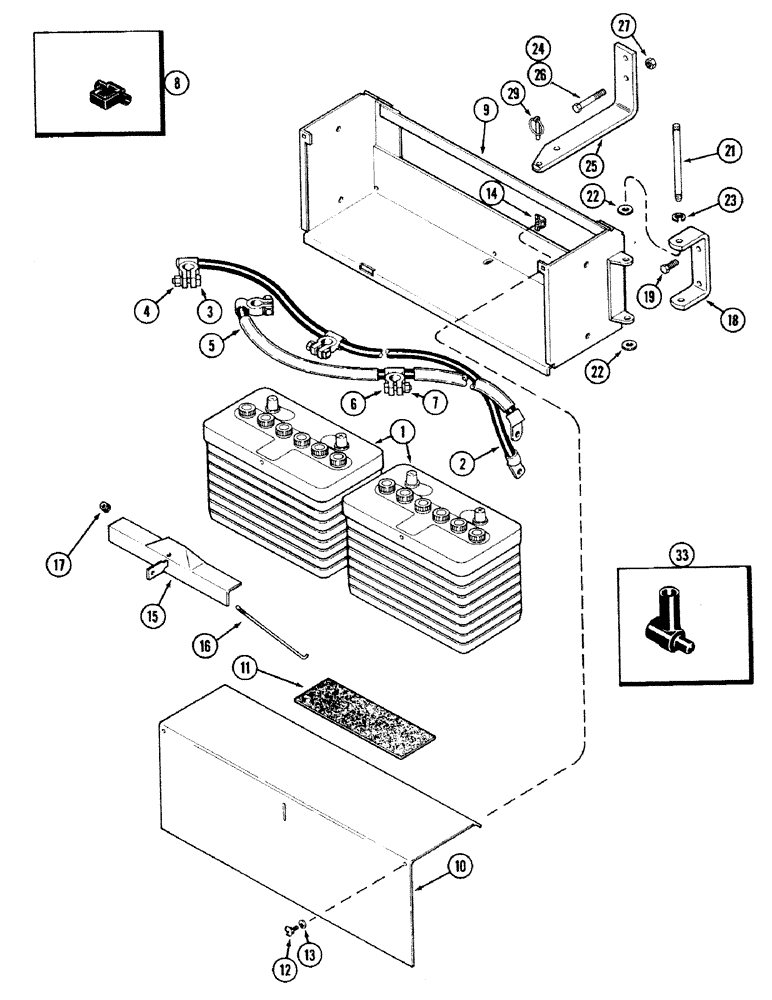

Запчасти Case IH 2594 (4-32) - BATTERY, CABLES AND BATTERY BOX (04) - ELECTRICAL SYSTEMS

1

A186006

DRY BATTERY

BATTERY - 12 volt (Order BMF31F)

2шт.

2

A162285

CABLE

- battery, negative

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch, grade 2

2шт.

4

129-737

NUT

- hex, 5/16 inch NC

2шт.

5

A162287

CABLE ASSY.

CABLE - battery, positive

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- square head, 5/16 NC x 1-3/8 inch, grade 2

2шт.

7

129-737

NUT

- hex, 5/16 inch NC

2шт.

8

A139372

CAP

- protection, battery terminal

2шт.

9

A161390

BOX

ASSEMBLY - battery

1шт.

10

A161331

COVER

- battery box

1шт.

11

A62469

COVER

TREAD - non slip cover

1шт.

12

A141485

THUMB SCREW,5/16" - 18 x 5/8"

- thumb, 5/16 inch NC

2шт.

13

493-81008

LOCK WASHER,Int Tooth, 5/16"

WASHER - internal tooth lock, 5/16 inch, NC

2шт.

14

131-137

SPRING NUT,Ret, 5/16"-18

Speed grip Ret, 5/16"-18

2шт.

15

A161329

CLAMP

- battery hold down

1шт.

16

A147915

BOLT

- hook, clamp

3шт.

17

131-923

NUT,Flg, 1/4"-20.G5

- hex, flange, 1/4 inch NC

3шт.

18

A164175

BRACKET

SUPPORT - hinge, battery box

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

21

A164174

AXLE PIN

PIN - hinge, battery box

1шт.

22

A39519

WASHER

- nylon, hinge pin

2шт.

23

A27804

CIRCLIP,#50, .392" Dia, E-Type

RING retaining, #50, .392" Dia, E-Type

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

25

A164173

BRACKET

- battery support

1шт.

26

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

27

425-146

JAM NUT,3/8" - 16, Gr 5

- hex jam, 3/8 inch NC

1шт.

29

A30338

PIN

- self locking, 1/4 inch

1шт.

33

A181302

BOOT

- terminal

1шт.
