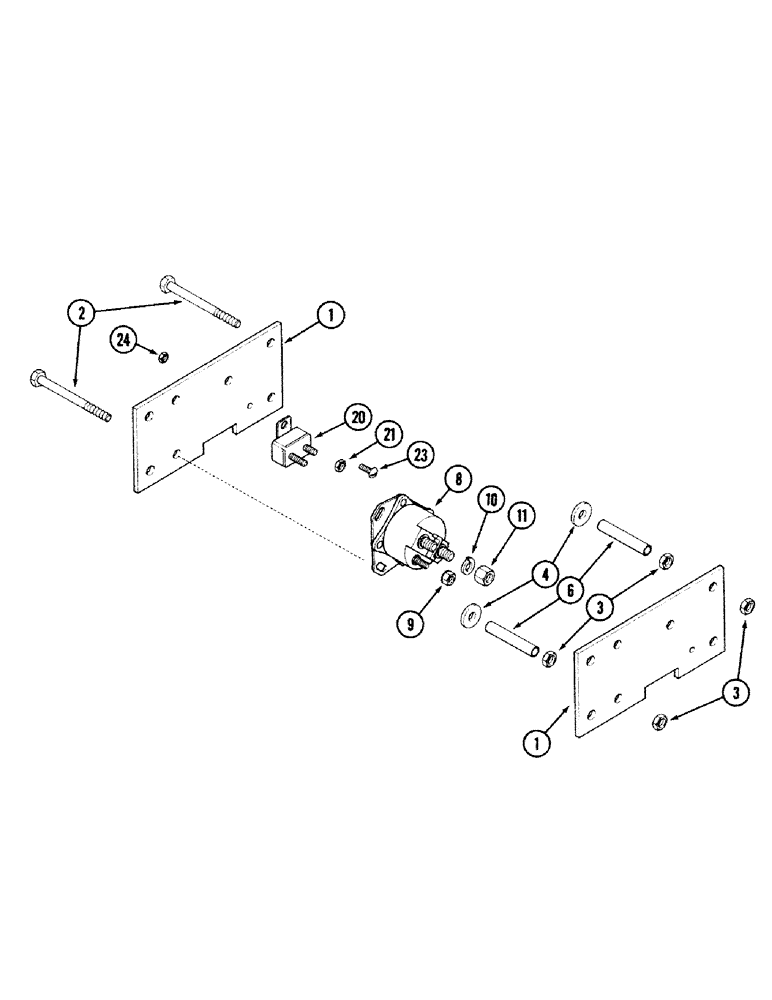

Запчасти Case IH 2594 (4-30) - SOLENOID AND CIRCUIT BREAKER, P.I.N. 9944363 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A186198

PLATE ASSY.

PLATE - mounting and cover

2шт.

2

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

3

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

8шт.

4

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

6

A176895

SPACER

- solenoid cover (Order R25287)

4шт.

8

A39079

SOLENOID

- ignition

1шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, no. 10 NF

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

20

92057C1

CIRCUIT-BREAKER

BREAKER - circuit, 50 amp

1шт.

21

231-24109

LOCK NUT,#10-32, GB

NUT - hex, self-locking, no. 10 NF

2шт.

23

173-237

SCREW,Sl Rnd Hd, #10 - 32 x 1/2"

- machine, round head slotted, no. 10 NF x 1/2 inch

1шт.

24

231-24109

LOCK NUT,#10-32, GB

NUT - hex, self-locking, no. 10 NF

1шт.
