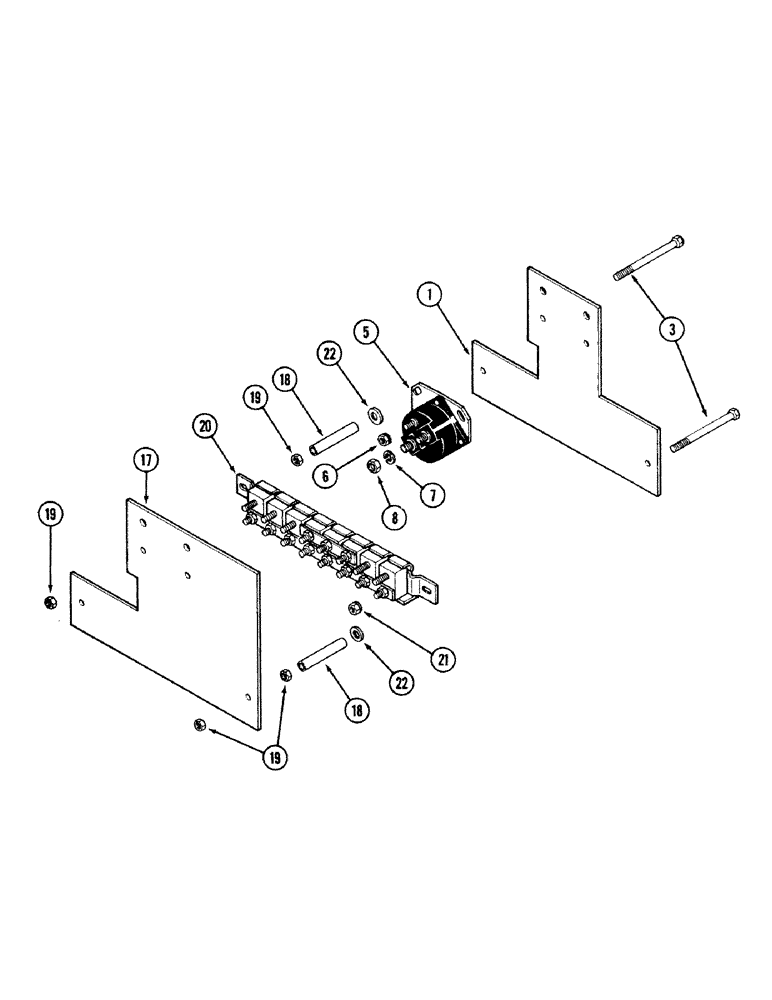

Запчасти Case IH 2594 (4-28) - SOLENOID AND CIRCUIT BREAKERS, PRIOR TO P.I.N. 9944363 (04) - ELECTRICAL SYSTEMS

1

A164563

BRACKET

PLATE - mounting, solenoid and circuit breakers

1шт.

3

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

4шт.

5

A39079

SOLENOID

- ignition

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, no. 10 NF

1шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

425-105

NUT,5/16"-18, G5

2шт.

17

A164992

PLATE ASSY.

PLATE - cover, solenoid and circuit breakers

1шт.

18

A176895

SPACER

- solenoid cover (Order R25287)

4шт.

19

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

8шт.

20

A176977

BREAKER

- 8 circuit (Order A165723)

1шт.

20

A165723

BREAKER

- 7 circuit

1шт.

21

231-24109

LOCK NUT,#10-32, GB

NUT - hex, self-locking, no. 10 NF

6шт.

22

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.
