Запчасти Case IH 2594 (4-26) - ELECTRICAL EQUIPMENT MOUNTING, TURN SIGNAL SWITCH (04) - ELECTRICAL SYSTEMS

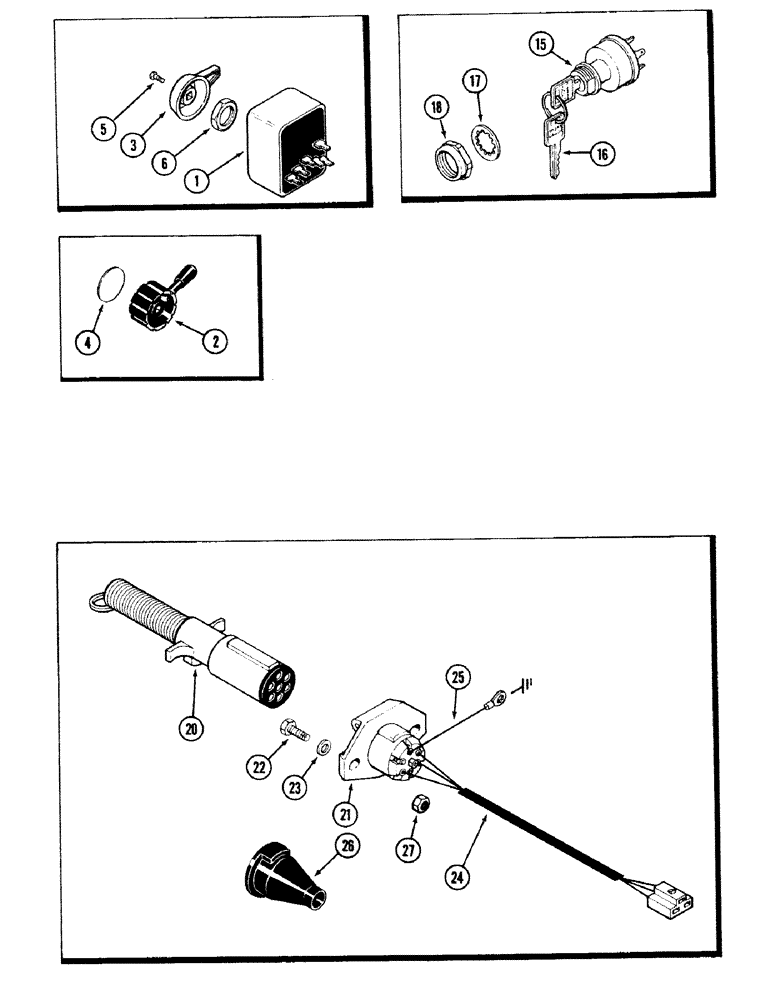

Схема запчастей Case IH 2594 - (4-26) - ELECTRICAL EQUIPMENT MOUNTING, TURN SIGNAL SWITCH (04) - ELECTRICAL SYSTEMS
15
24
1
23
17
6
4
5
2
22
18
25
16
3
21
27
26
20

Артикул

Название

Примечание

Количество

1

1987422C1

SWITCH

- turn signal and flasher (Replaces A77184)

1шт.

2

A141736

KNOB

- switch (If equipped) (Order A177140)

1шт.

3

A177140

KNOB

- switch (Replaces A141736)

1шт.

4

A167962

DISC

PLATE - insert (If equipped)

1шт.

5

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

- machine, pan head slotted, No. 5 NC x 3/8 inch

1шт.

6

131-428

LOCK NUT,PAL, 3/4"-20

NUT - hex, self-locking, 3/4 inch super fine threads

1шт.

15

D134737

IGNITION SWITCH

SWITCH ASSEMBLY - ignition

1шт.

16

A77313

SET OF 2 KEYS

KEY - ignition switch (Set of 2); metal without padding

1шт.

17

193-108

LOCK WASHER,Int Tooth, 1"

WASHER - internal tooth lock, 1 inch, ignition switch

1шт.

18

A145855

NUT

- mounting, ignition switch

1шт.

20

121646C1

TERMINAL CONNECTOR,Female

CONNECTOR - 7 point auxiliary plug, male, electrical outlet

1шт.

21

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR - 7 point auxiliary socket, female, electrical outlet

1шт.

22

281-34812

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch, auxiliary electrical outlet

2шт.

23

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Auxiliary electrical outlet

2шт.

24

A177485

HARNESS

- auxiliary outlet, electrical

1шт.

25

A163117

ELECTRICAL WIRE

WIRE - ground, auxiliary outlet, electrical

1шт.

26

A169283

BOOT

- protection (Order 481849C1), auxiliary electrical outlet

1шт.

27

425-105

NUT,5/16"-18, G5

Auxiliary electrical outlet 5/16"-18, G5

1шт.

Выбрано товаров: 18
