Запчасти Case IH 2594 (4-14) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS

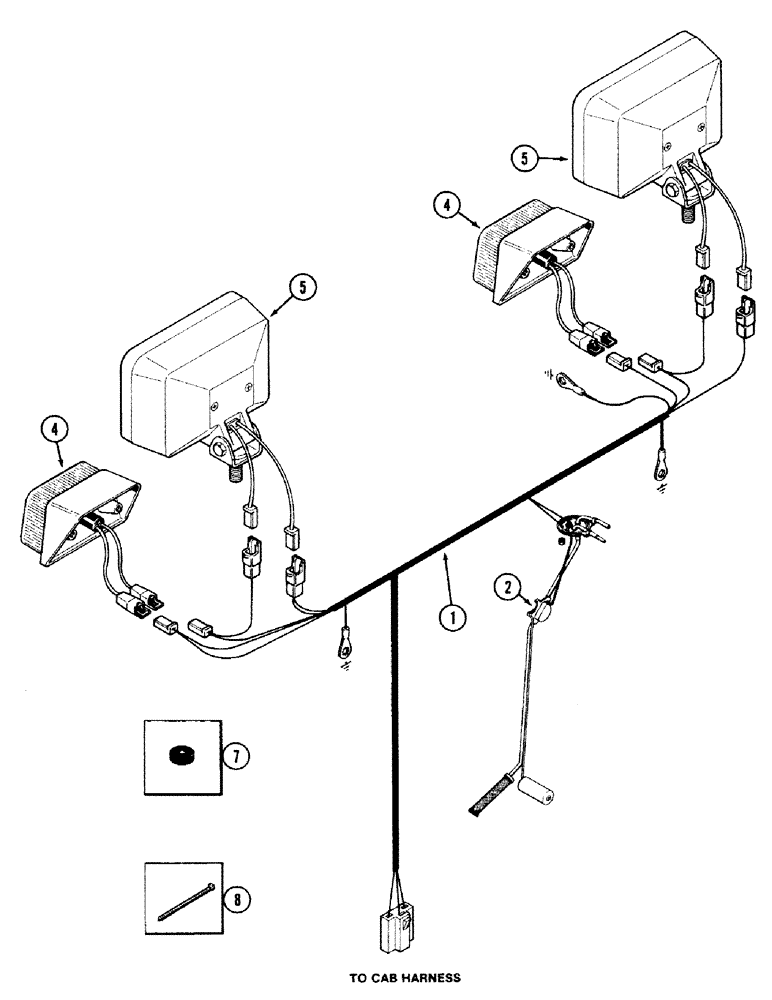

Схема запчастей Case IH 2594 - (4-14) - REAR COMPONENT HARNESS (04) - ELECTRICAL SYSTEMS
4
1
8
5
4
7
2
5

Артикул

Название

Примечание

Количество

1

A167264

HARNESS

- rear lights and components

1шт.

2

A161769

TRANSMITTER

SENDER ASSEMBLY - fuel level (See Figure 3-16)

1шт.

4

A143925

LAMP

LIGHT - tail (See Figure 4-52)

2шт.

5

REF

INSTRUCTION

LAMP - rear flood (See Figure 4-56)

4шт.

7

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- rear flood lamp wire

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

Выбрано товаров: 6
