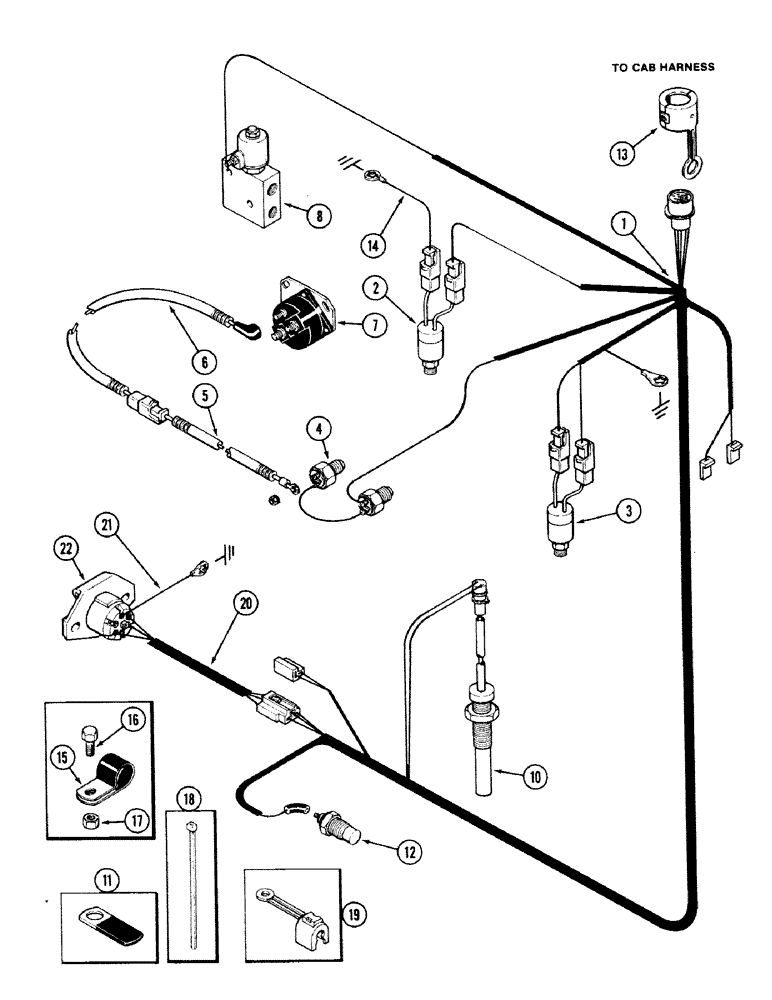

Запчасти Case IH 2594 (4-12) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

A176764

HARNESS

- transmission

1шт.

2

A167895

SWITCH

- transmission filter pressure

1шт.

3

A162422

SWITCH

- transmission oil pressure (See Figure 8-2)

1шт.

4

A160237

SWITCH

- neutral start (See Figure 6-20)

2шт.

5

A169158

ELECTRICAL WIRE

WIRE - neutral start

1шт.

6

A169157

ELECTRICAL WIRE

WIRE - ignition solenoid

1шт.

7

REF

INSTRUCTION

SWITCH - solenoid, ignition (See Figure 4-28 or 4-30)

1шт.

8

A176599

VALVE

- solenoid, differential lock (See Figure 7-6)

1шт.

10

A156902

SENSOR

ASSEMBLY - speed (See Figure 6-10)

1шт.

11

A38066

CLIP

- cable

1шт.

12

A154283

SWITCH

- transmission temperature

1шт.

13

A163118

CLAMP

- harness connecting

1шт.

14

A167839

ELECTRICAL WIRE

WIRE - ground

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLIP - transmission harness to cab mount

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

19

A169696

CLAMP

- connector

1шт.

20

A177485

HARNESS

auxiliary outlet

1шт.

21

A163117

ELECTRICAL WIRE

WIRE - ground, auxiliary outlet harness

1шт.

22

121645C1

MULTIPOLE CONNECTOR,7 Pin

CONNECTOR ASSEMBLY - 7 point, (See Figure 4-26), auxiliary outlet harness

1шт.
