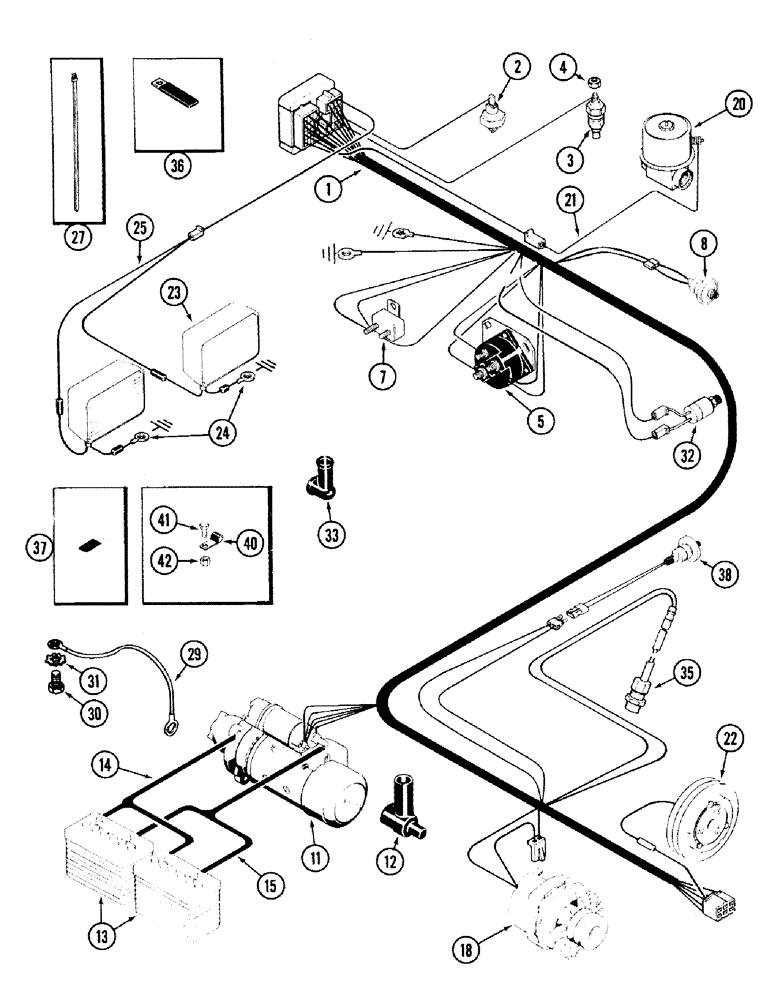

Запчасти Case IH 2594 (4-10) - ENGINE HARNESS, P.I.N. 9944363 AND AFTER (04) - ELECTRICAL SYSTEMS

1

A186159

HARNESS

ASSEMBLY - engine

1шт.

2

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator (See Figure 2-10)

1шт.

3

A176566

TRANSMITTER

SENDER - temperature, coolant

1шт.

4

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

5

A39079

SOLENOID

- ignition (See Figure 4-30)

1шт.

7

92057C1

CIRCUIT-BREAKER

BREAKER - circuit, 50 ampere

1шт.

8

107125A1

SWITCH, PRESSURE

SWITCH - engine oil pressure, 8 PSI (Replaces A177628)

1шт.

11

REF

INSTRUCTION

STARTER - engine (See Figure 4-38 or 4-42)

1шт.

12

A181302

BOOT

- terminal

1шт.

13

REF

INSTRUCTION

BATTERY - 12 volt low maintenence (See Figure 4-32 or 4-34)

2шт.

14

REF

INSTRUCTION

CABLE - battery, negative (See Figure 4-32 or 4-34)

1шт.

15

REF

INSTRUCTION

CABLE - battery, positive (See Figure 4-32 or 4-34)

1шт.

18

REF

INSTRUCTION

ALTERNATOR - engine (See Figure 4-48 or 50)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - shutoff (See Figure 4-61)

1шт.

21

A165227

ELECTRICAL WIRE

WIRE - shutoff, Serial Range: valve-harness

1шт.

22

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor (See Figure 9-150)

1шт.

23

REF

INSTRUCTION

LAMP - front flood, lower (See Figure 4-56)

2шт.

24

A147343

ELECTRICAL WIRE

WIRE - ground

2шт.

25

A147345

HARNESS

- lights, front flood

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

29

A186133

CABLE

- ground, cab

1шт.

30

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

31

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

32

A167644

PRESSURE SWITCH

SWITCH - oil pressure, 40 PSI

1шт.

33

A21753

CAP

BOOT - terminal

2шт.

35

A186169

TRANSMITTER

SENSOR - magnetic, engine speed (See Figure 3-2)

1шт.

36

A149624

CLIP

- retaining

1шт.

37

A37179

CLIP

CLAMP - cable

1шт.

38

196495C1

LEVER

SWITCH - engine oil pressure 8 PSI (Replaces A180908)

1шт.

40

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- harness

1шт.

41

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

1шт.

42

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
