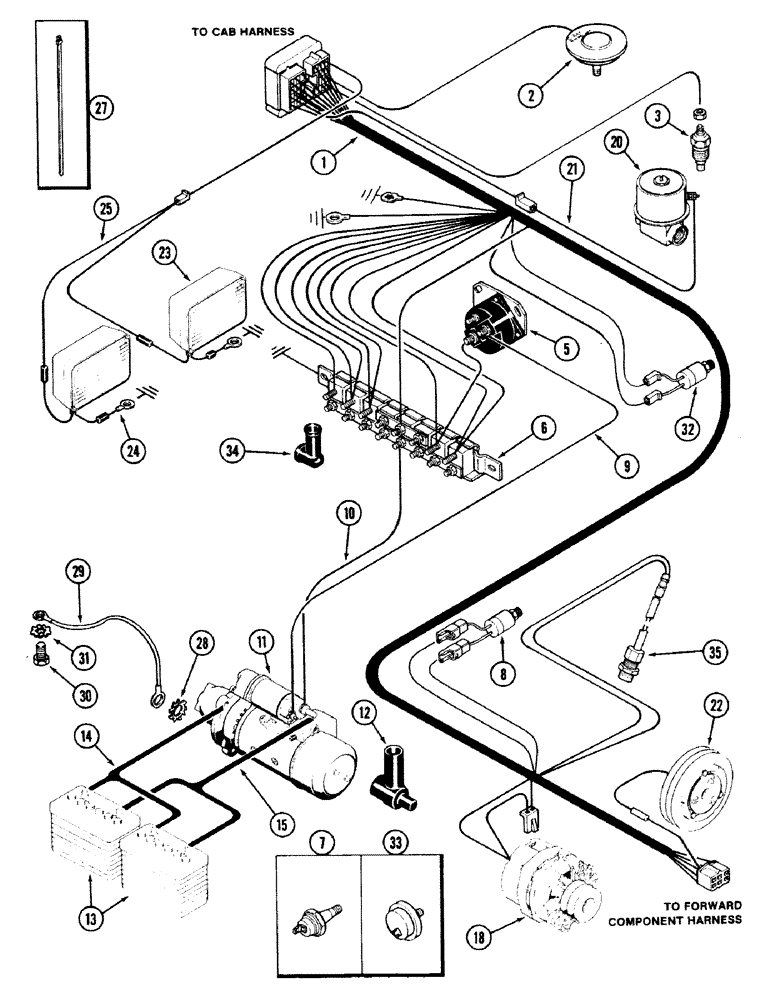

Запчасти Case IH 2594 (4-08) - ENGINE HARNESS, PRIOR TO P.I.N. 9944363 (04) - ELECTRICAL SYSTEMS

1

A176966

HARNESS

ASSEMBLY - engine (P.I.N. 9935641 through P.I.N. 9954462)

1шт.

1

A176111

HARNESS

ASSEMBLY - engine (Replaces A169231) (Prior to P.I.N. 9935641)

1шт.

1

A169231

HARNESS

ASSEMBLY - engine (Order A176111, A167996 and A167644)

1шт.

2

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator (Replaces A154782) (See Figure 2-10)

1шт.

3

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine water temperature (Stamped AC-12V-8992016)

1шт.

3

A176566

TRANSMITTER

SENDER - engine water temperature (Stamped AC-12V-25036787)

1шт.

4

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

5

A39079

SOLENOID

- ignition (See Figure 4-28)

1шт.

6

A176977

BREAKER

- 8 circuit (if equipped) (Order A165723)

1шт.

6

A165723

BREAKER

- 7 circuit (If equipped)

1шт.

7

A66737

SWITCH, PRESSURE

SWITCH - engine oil pressure (Used with harness A169231)

1шт.

8

107125A1

SWITCH, PRESSURE

SWITCH - engine oil pressure (Replaces A167996) (Used with harness A176966 and A176111)

1шт.

9

A169555

ELECTRICAL WIRE

WIRE - starter to solenoid (Battery terminal)

1шт.

10

A163107

ELECTRICAL WIRE

WIRE - starter to circuit breaker

1шт.

11

REF

INSTRUCTION

STARTER - engine (See Figure 4-38 or 4-42)

1шт.

12

A181302

BOOT

- terminal

1шт.

13

REF

INSTRUCTION

BATTERY - 12 volt low maintenance (See Figure 4-32 or 4-34)

1шт.

14

REF

INSTRUCTION

CABLE - battery, negative (See Figure 4-32 or 4-34)

1шт.

15

REF

INSTRUCTION

CABLE - battery, positive (See Figure 4-32 or 4-34)

1шт.

18

REF

INSTRUCTION

ALTERNATOR - engine (See Figure 4-48 or 4-50)

1шт.

20

REF

INSTRUCTION

VALVE ASSEMBLY - shutoff (See Figure 4-60)

1шт.

21

A165227

ELECTRICAL WIRE

WIRE - shutoff, Serial Range: valve-harness

1шт.

22

REF

INSTRUCTION

CLUTCH ASSEMBLY - compressor (See Figure 9-150)

1шт.

23

REF

INSTRUCTION

LAMP - front flood, lower (See Figure 4-56)

2шт.

24

A147343

ELECTRICAL WIRE

WIRE - ground

2шт.

25

A147345

HARNESS

- lights, front flood

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

28

A34650

LOCK WASHER

- external lock

1шт.

29

A186133

CABLE

- ground, cab (Replaces A165301)

1шт.

30

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

31

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

1шт.

32

A167644

PRESSURE SWITCH

SWITCH - oil pressure (Used with harness A176966 and A176111)

1шт.

33

A162940

SWITCH

- oil pressure (Used with harness A169231)

1шт.

34

A21753

CAP

BOOT - terminal

2шт.

35

A186169

TRANSMITTER

SENSOR - magnetic, engine speed (Replaces A162939) (See Figure 3-2)

1шт.
