Запчасти Case IH 2594 (3-14) - THROTTLE CONTROLS (03) - FUEL SYSTEM

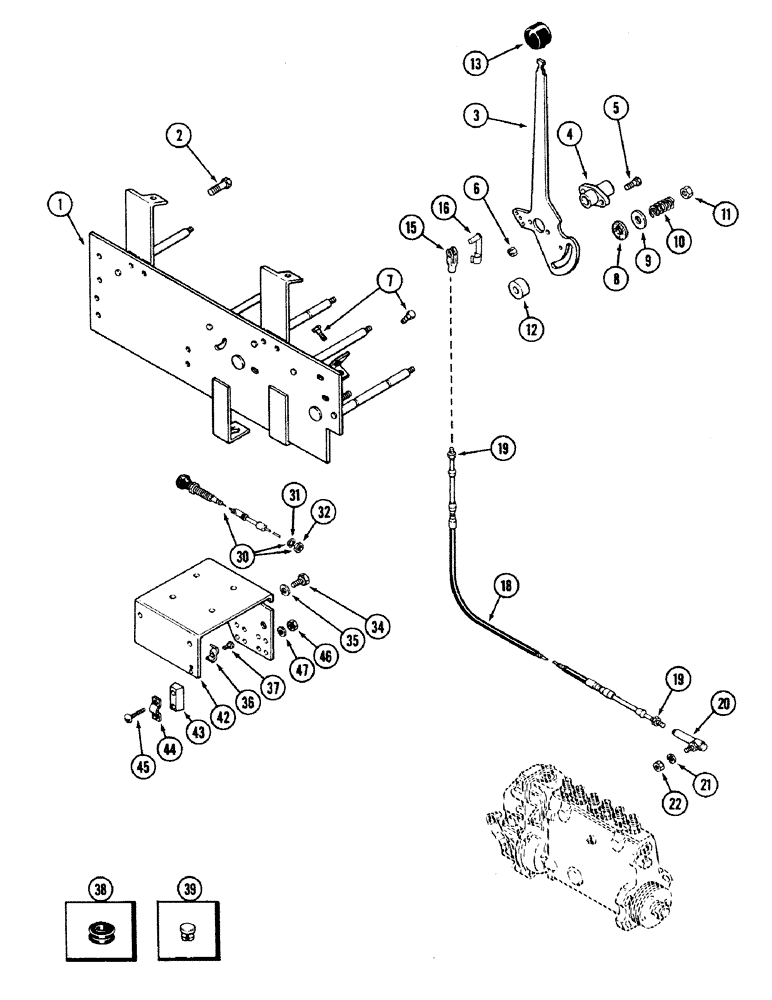

Схема запчастей Case IH 2594 - (3-14) - THROTTLE CONTROLS (03) - FUEL SYSTEM
34
20
30
11
46
2
6
43
4
42
12
22
38
45
13
19
19
1
21
35
37
9
47
39
15
31
5
10
18
44
3
7
36
16
32
8

Артикул

Название

Примечание

Количество

1

A181983

SUPPORT

- control console (Replaces A163004)

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch

5шт.

3

A180498

LEVER

- throttle

1шт.

4

A160500

BUSHING,15.95mm ID x 25.4mm OD x 55.37mm L

BEARING - control lever

1шт.

5

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

7

A67294

BOLT

- adjusting, control lever

2шт.

8

A61069

DISC

- friction

2шт.

9

495-81149

WASHER,7/16" x 1 1/4" x .083"

- flat, 7/16 x 1-1/4 x 3/32 inch

2шт.

10

A65583

SPRING

- friction disc

1шт.

11

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC

2шт.

12

A160622

BUSHING

SPACER - lever

1шт.

13

A177439

KNOB

- control lever (Red)

1шт.

15

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS - adjustable, No. 10

1шт.

16

A149683

PIN

- clevis, spring, 3/16 inch

1шт.

18

A67296

CABLE

ASSEMBLY - hand throttle

1шт.

19

225-14210

NUT,#10-32

2шт.

20

A165466

BALL JOINT

- cable throttle

1шт.

21

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

425-114

NUT,1/4"-28, G5

1шт.

30

A164766

CABLE

ASSEMBLY - stop, flexible (Order A165986)

1шт.

31

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

32

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

34

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

1шт.

35

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

36

373373R1

CLIP

- stop cable

1шт.

37

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, round head slotted, No. 8 NC x 1/2 inch

1шт.

38

A141389

GROMMET

- cable

2шт.

39

A162961

PLUG

- control cable

1шт.

42

A160611

BRACKET

SUPPORT - stop cable mounting

1шт.

43

A160612

SPACER

- clamp, throttle cable

1шт.

44

A75815

CLAMP

- cable

1шт.

45

470-11020

SCREW,Slotted Pan Hd, #10-24 x 1 1/4"

- machine, pan head slotted, No. 10 NC x 1-1/4 inch

1шт.

46

225-14110

NUT,#10-24

1шт.

47

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

Выбрано товаров: 35
