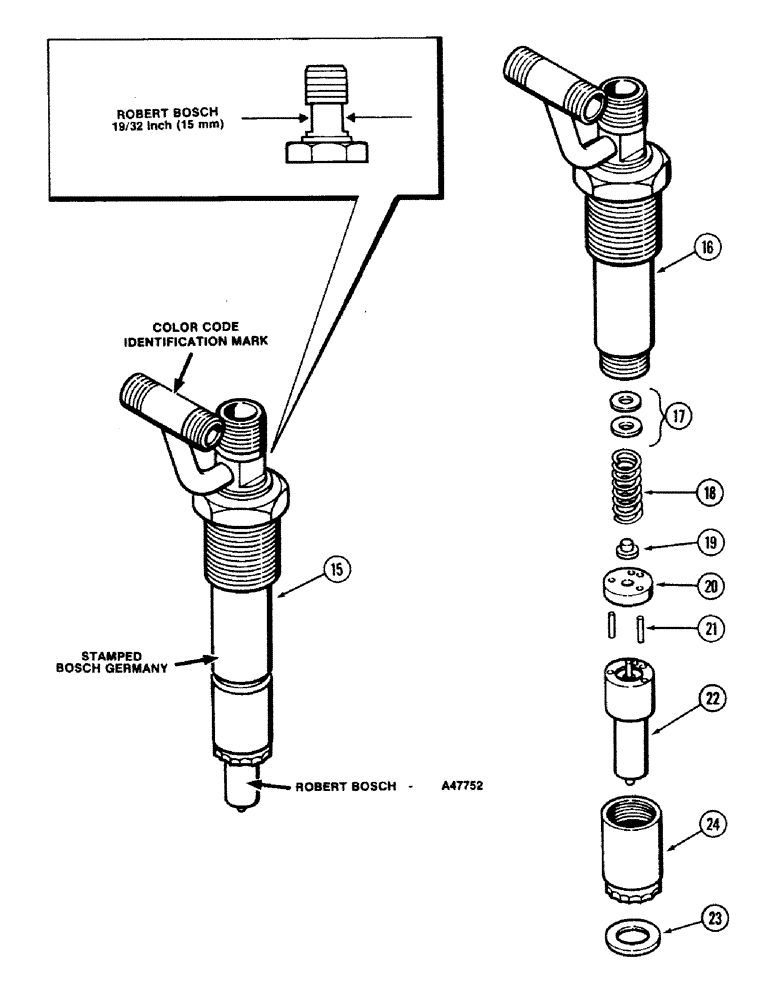

Запчасти Case IH 2594 (3-12) - FUEL INJECTION NOZZLE, 504BDT DIESEL ENGINE, RED COLOR CODE IDENTIFICATION (CONTD) (03) - FUEL SYSTEM

A156327

NOZZLE CAP

NOZZLE ASSEMBLY - fuel injection, Includes: Refs. 5 - 24 and 1 - 11 on Fig. 3-10

6шт.

A156327R

REMAN-INJECT NOZZLE

2594 (1/84-12/87)

6шт.

A156327C

CORE-NOZZLE, INJECT

Return number

1шт.

15

NSS

NOT SOLD SEPARAT

NOZZLE ASSEMBLY - fuel injection, Robert Bosch No. 0-432-131-884 (Order A156327), Includes: Refs. 16 - 17

1шт.

American Bosch and Robert Bosch injector nozzle components are not interchangeable.

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - nozzle (Order A156327)

1шт.

A48186

KIT

- shim, nozzle opening pressure (One kit required to repair six nozzles) (Order components), Includes: Ref. 17

1шт.

17

1806233C1

SHIM,1.00mm Thk

Nozzle (5 in kit) 1.00mm Thk

1шт.

17

1806234C1

SHIM,1.04mm Thk

Nozzle (5 in kit) 1.04mm Thk

1шт.

17

1806235C1

SHIM,1.08mm Thk

Nozzle (5 in kit) 1.08mm Thk

1шт.

17

1806236C1

SHIM,1.10mm Thk

Nozzle (5 in kit) 1.10mm Thk

1шт.

17

1806237C1

SHIM,1.14mm Thk

Nozzle (5 in kit) 1.14mm Thk

1шт.

17

1806238C1

SHIM,1.18mm Thk

Nozzle (5 in kit) 1.18mm Thk

1шт.

17

1806239C1

SHIM,1.20mm Thk

Nozzle (5 in kit) 1.20mm Thk

1шт.

17

1806240C1

SHIM,1.24mm Thk

Nozzle (5 in kit) 1.24mm Thk

1шт.

17

1806241C1

SHIM,1.28mm Thk

Nozzle (5 in kit) 1.28mm Thk

1шт.

17

1806242C1

SHIM,1.30mm Thk

Nozzle (5 in kit) 1.30mm Thk

1шт.

17

1806243C1

SHIM,1.34mm Thk

Nozzle (5 in kit) 1.34mm Thk

1шт.

17

1806244C1

SHIM,1.38mm Thk

Nozzle (5 in kit) 1.38mm Thk

1шт.

17

1806245C1

SHIM,1.40mm Thk

Nozzle (5 in kit) 1.40mm Thk

1шт.

17

1806246C1

SHIM,1.44mm Thk

Nozzle (5 in kit) 1.44mm Thk

1шт.

17

1806247C1

SHIM,1.48mm Thk

Nozzle (5 in kit) 1.48mm Thk

1шт.

17

1806248C1

SHIM,1.50mm Thk

Nozzle (5 in kit) 1.50mm Thk

1шт.

17

1806249C1

SHIM,1.54mm Thk

Nozzle (5 in kit) 1.54mm Thk

1шт.

17

1806250C1

SHIM,1.58mm Thk

Nozzle (5 in kit) 1.58mm Thk

1шт.

17

1806251C1

SHIM,1.60mm Thk

Nozzle (5 in kit) 1.60mm Thk

1шт.

17

1806252C1

SHIM,1.64mm Thk

Nozzle (5 in kit) 1.64mm Thk

1шт.

17

1806253C1

SHIM,1.68mm Thk

Nozzle (5 in kit) 1.68mm Thk

1шт.

17

1806254C1

SHIM,1.70mm Thk

Nozzle (5 in kit) 1.70mm Thk

1шт.

17

1806255C1

SHIM,1.74mm Thk

Nozzle (5 in kit) 1.74mm Thk

1шт.

17

1806256C1

SHIM,1.78mm Thk

Nozzle (5 in kit) 1.78mm Thk

1шт.

17

1806257C1

SHIM,1.80mm Thk

Nozzle (5 in kit) 1.80mm Thk

1шт.

17

1806258C1

SHIM,1.84mm Thk

Nozzle (5 in kit) 1.84mm Thk

1шт.

17

1806259C1

SHIM,1.88mm Thk

Nozzle (5 in kit) 1.88mm Thk

1шт.

17

1806260C1

SHIM,1.90mm Thk

Nozzle (5 in kit) 1.90mm Thk

1шт.

17

1806261C1

SHIM,1.94mm Thk

Nozzle (5 in kit) 1.94mm Thk

1шт.

17

1806262C1

SHIM,1.98mm Thk

Nozzle (5 in kit) 1.98mm Thk

1шт.

18

A48198

SPRING

- nozzle pressure

1шт.

19

A48203

SEAT

- nozzle pressure spring

1шт.

20

A48199

VALVE

STOP - nozzle

1шт.

21

A48200

PIN

- valve stop

2шт.

22

A47752

NOZZLE INJECTION

TIP ASSEMBLY - nozzle injector, Includes: Ref. 23

1шт.

23

1342829C1

GASKET

- injection nozzle tip

1шт.

Whenever nozzle is removed from head, 1342829C1 gasket must be replaced before nozzle is installed back in head.

1шт.

24

A48201

NUT

CAP NUT - nozzle end

1шт.
