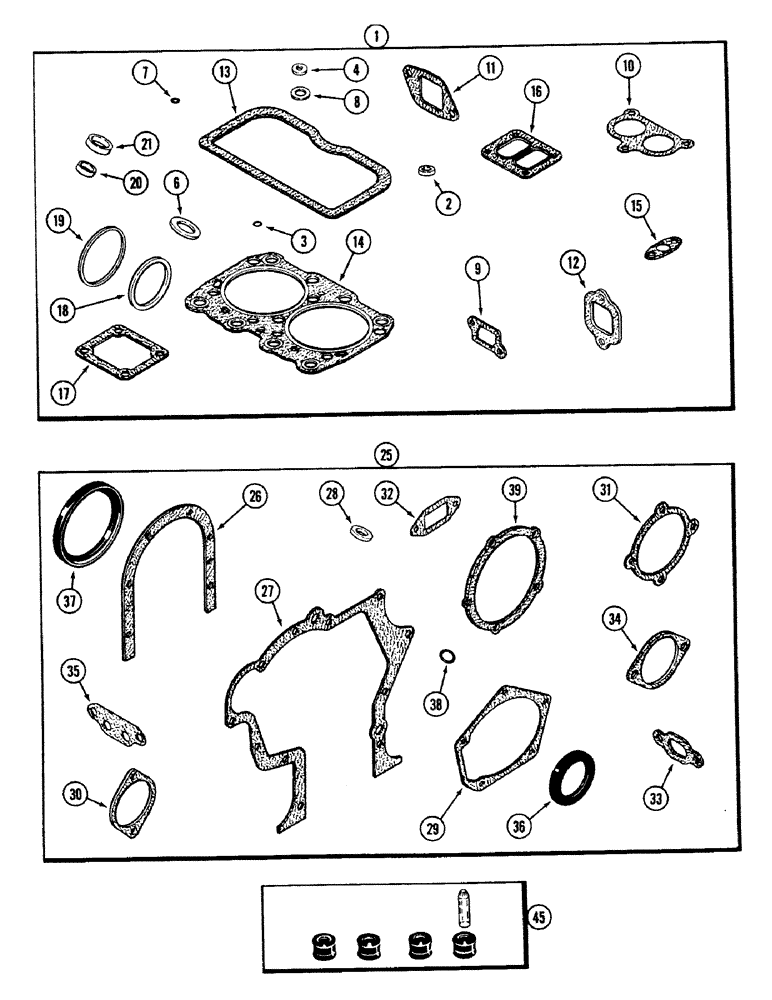

Запчасти Case IH 2594 (2-44) - ENGINE GASKET KITS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A189544

GASKET KIT

- valve grind (Replaces A157300), Includes: Refs. 2 - 21

1шт.

For complete engine overhaul, order 1-A189544, 1-A189538, 1-A189541 and 3-M20614.

1шт.

2

A142098

GROMMET

- valve cover stud

6шт.

3

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk, Rocker arm shaft tube

3шт.

4

A166102

WASHER,6.45mm ID x 12.7mm OD x 0.81mm Thk

GASKET - breather tube bolt

3шт.

6

A76640

GASKET

WASHER - injection nozzle tip (Order 1342829C1)

6шт.

7

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

8

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather, Serial Range: tube-cover

3шт.

9

1342785C1

MANIFOLD GASKET

- water manifold

3шт.

10

1342784C1

GASKET

- thermostat housing

1шт.

11

1342760C1

MANIFOLD GASKET

- intake manifold

6шт.

12

1342786C1

MANIFOLD GASKET

- exhaust manifold

6шт.

13

A156960

CYLINDER HEAD GASKET,3.05mm Thk

- valve, Serial Range: cover-head

3шт.

14

1349078C1

CYLINDER HEAD GASKET

- cylinder head (With fire rings)

3шт.

15

A58892

GASKET,1.59mm Thk

- drain tube, turbocharger

1шт.

16

A58899

GASKET,0.45mm Thk

-, Serial Range: turbocharger-manifold

1шт.

17

1342762C1

MANIFOLD GASKET

- air intake elbow

1шт.

18

A138817

RING,2.64mm Thk

SEAL - turbocharger

1шт.

19

A152831

SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk

- turbocharger exhaust

1шт.

20

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon, nozzel tip

6шт.

21

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle

6шт.

25

A189538

KIT

GASKET KIT - cylinder block (Replaces A44075), Includes: Refs. 26 - 39

1шт.

For complete engine overhaul, order 1-A189544, 1-A189538, 1-A189541 and 3-M20614.

1шт.

26

1342747C1

GASKET

- rear seal retainer

1шт.

27

1981265C1

GASKET

- timing gear cover

1шт.

28

A58613

SEALING WASHER

GASKET - timing gear cover plug (Not used this application)

1шт.

29

1342756C1

GASKET

- fuel pump cover

1шт.

30

134275C1

FITTING

GASKET - auxiliary drive cover (Note used this application)

1шт.

31

1342758C1

GASKET

- water pump body

1шт.

32

1342759C1

GASKET

- water pump, Serial Range: body-block

1шт.

33

A58670

GASKET

- oil cooler water opening

1шт.

34

A58680

OIL PAN GASKET SET

- tube to water pump (Not used this application)

1шт.

35

A58756

OIL PAN GASKET SET

- oil filter base (Not used this application)

1шт.

36

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front

1шт.

37

A62050

OIL SEAL

- oil crankshaft rear

1шт.

38

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- oil filter base and oil pump

3шт.

39

1342771C1

GASKET

- water pump body (Not used this application)

1шт.

45

M20614

SEAL KIT

SEAL KIT - valve (Includes tool and 4 seals)

3шт.
