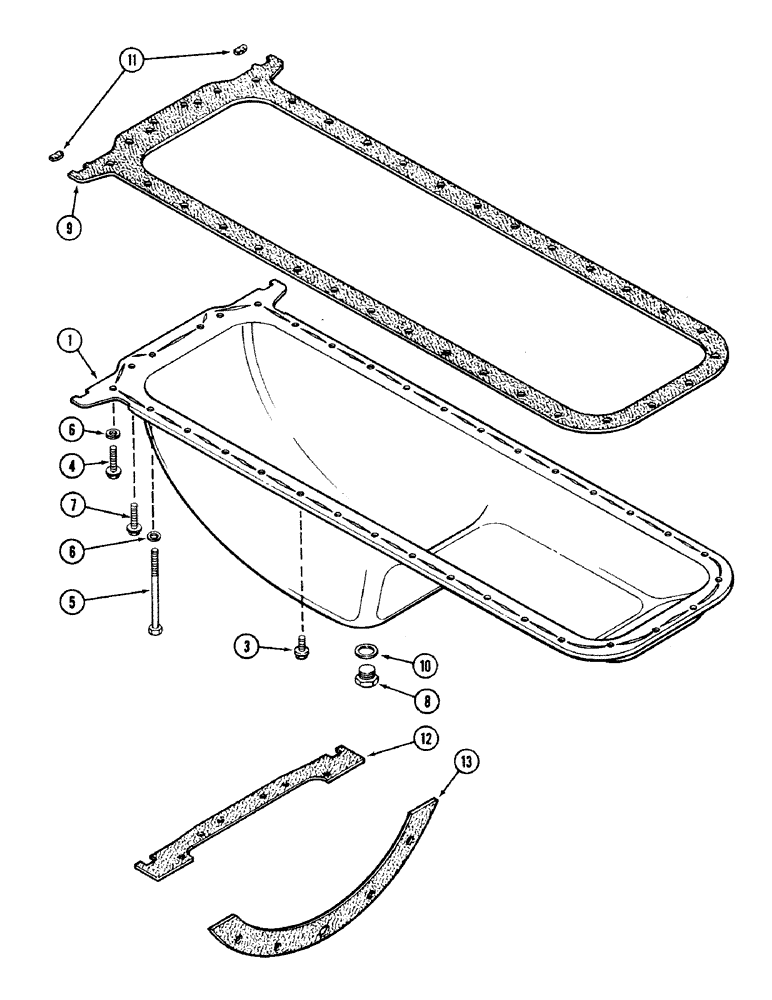

Запчасти Case IH 2594 (2-42) - OIL PAN AND GASKETS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A150239

PAN

- oil, engine

1шт.

3

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT - hex with washer, 3/8 NC x 7/8 inch (Order 113-221 bolt and 92-6 washer)

26шт.

4

3802620

BOLT - 12 point, 3/8 NC x 1-1/4 inch, grade 8

2шт.

5

113-2232

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - hex, Sems, 3/8 NC x 1-1/2 inch

2шт.

8

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

A189541

KIT

GASKET KIT - oil pan, engine (Replaces A152479)

1шт.

9

A189541

KIT

GASKET - pan to block (Replaces A150688), Includes: Refs. 9 and 10

1шт.

10

A27968

RING

- copper, drain plug

1шт.

A189540

GASKET

KIT - oil pan plate (Used when tractor is split and oil pan is not removed), Includes: Refs. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - tab, rear corner

2шт.

12

NSS

NOT SOLD SEPARAT

GASKET - flywheel cover top

1шт.

13

1342359C1

GASKET

- flywheel cover to torque tube (Replaces A57966)

1шт.
