Запчасти Case IH 2594 (2-36) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE

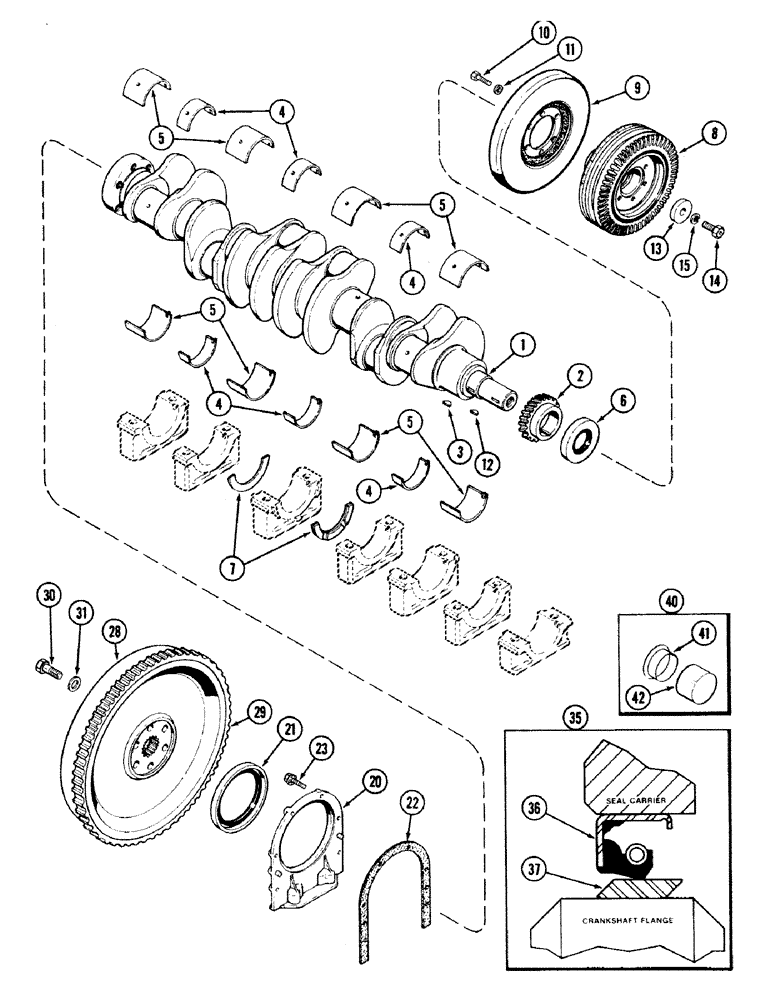

Схема запчастей Case IH 2594 - (2-36) - CRANKSHAFT AND FLYWHEEL, 504BDT DIESEL ENGINE (02) - ENGINE
20
36
1
42
4
40
15
2
10
41
12
13
35
3
29
21
31
5
11
14
4
4
5
28
6
30
23
4
5
9
37
8
5
7
22

Артикул

Название

Примечание

Количество

1

A77270

CRANKSHAFT

ASSEMBLY - engine, Includes: Refs. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A43089

BEARING LINER

LINERS - main bearing, narrow, standard (Set of 2)

3шт.

4

A43120

LINING

LINERS - main bearing, narrow, 0.002 inch undersize (Set of 2)

3шт.

4

A43121

SET OF CONN ROD BRGS STD

LINERS - main bearing, narrow, 0.010 inch undersize (Set of 2)

3шт.

4

A43122

LINING

LINERS - main bearing, narrow, 0.020 inch undersize (Set of 2)

3шт.

4

A43123

SET OF CONN ROD BRGS STD

LINERS - main bearing, narrow, 0.030 inch undersize (Set of 2)

3шт.

5

A43090

BEARING LINER

LINERS - main bearing, wide, standear (Set of 2)

4шт.

5

A43124

LINING

LINERS - main bearing, wide, 0.002 inch undersize (set of 2)

4шт.

5

A43125

CRANKSHAFT BEARING

LINERS - main bearing, wide, 0.010 inch undersize (set of 2)

4шт.

5

A43126

LINING

LINERS - main bearing, wide, 0.020 inch undersize (Set of 2)

4шт.

5

A43127

LINING

LINERS - main bearing, wide, 0.030 inch undersize (Set of 2)

4шт.

6

A157044

OIL SEAL,63.78mm ID x 92.2mm OD x 9.91mm Thk

- oil, crankshaft front (See ref 40)

1шт.

7

A58565

WASHER

- thrust, 0.157 inch thick

2шт.

7

A42447

WASHER

- thrust, 0.163 inch thick

1шт.

8

A166050

PULLEY

- belt drive

1шт.

9

A157010

HITCH DAMPER

DAMPER - pulley

1шт.

10

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

6шт.

11

A50820

WASHER

- hardened, 3/8 x 3/4 inch

6шт.

12

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

13

A156428

WASHER

- pulley retainer

1шт.

14

414-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

1шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- rear oil seal

1шт.

21

A62050

OIL SEAL

- oil, rear (See ref 35)

1шт.

22

1342747C1

GASKET

- retainer (Replaces A32830)

1шт.

23

193-554

SCREW,SEMS, Hex Hd, 3/8"-16 x 1 1/4", G5

BOLT - hex, 3/8 NC x 1-1/4 inch

6шт.

28

A153946

FLYWHEEL

ASSEMBLY - crankshaft, Includes: Ref. 29

1шт.

29

A27920

GEAR

- ring, 137 teeth

1шт.

30

25334R1

BOLT,Hex, 5/8" - 18 x 1 3/4", Gr 8

- hex, 5/8 NF x 1-3/4 inch, grade 8

6шт.

31

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, hardened

6шт.

35

A43194

KIT

- wear seal, rear, Includes: Refs. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

40

A154684

SLEEVE

KIT - wear seal, front, Includes: Refs. 41 and 42

1шт.

41

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

42

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

Выбрано товаров: 38
