Запчасти Case IH 2594 (2-34) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE

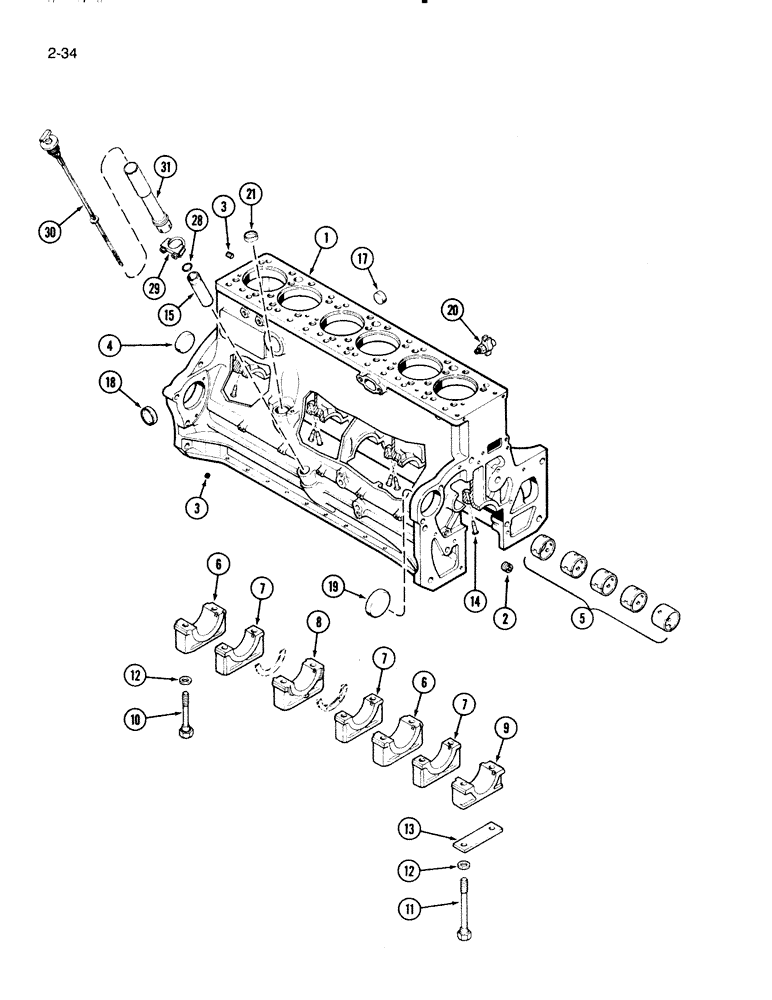

Схема запчастей Case IH 2594 - (2-34) - CYLINDER BLOCK, 504BDT DIESEL ENGINE (02) - ENGINE
10
6
15
13
9
3
6
1
30
20
21
19
8
5
4
31
29
18
7
28
14
2
12
17
3
7
12
7
11

Артикул

Название

Примечание

Количество

A182080

SKELETON ENGINE

BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, camshaft, timing gears and lifters, Includes: Refs. 1 - 31

1шт.

AR77827

REMAN-BASIC ENGINE

Remanufactured

1шт.

AC77827

CORE-BASIC ENGINE

Return Number

1шт.

1

A182079

SKELETON ENGINE

BLOCK ASSEMBLY - stripped, Includes: Refs. 2 - 20

1шт.

2

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

PLUG - hex socket, 3/8 inch PT

4шт.

3

221-849

PLUG,Hex Soc, 1/8"-27

PLUG - hex socket, 1/8 inch PT

6шт.

4

A24361

PLUG

PLUG - cup type, 2-3/8" diameter

1шт.

5

REF

INSTRUCTION

BUSHING - camshaft (See Figure 2-32)

1шт.

6

A185063

CAP

CAP - main bearing, wide

2шт.

7

A154397

BEARING CAP

CAP - main bearing, narrow

3шт.

8

A185064

CAP

CAP - main bearing - thrust

1шт.

9

A154396

BEARING CAP

CAP - main bearing, front

1шт.

10

A66948

STEP BOLT

BOLT - hex, 5/8 NC x 4-15/16 inch, special

12шт.

11

A66949

STEP BOLT

BOLT - hex, 5/8 NC x 7-3/16 inch, special

2шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - flat, hardened

14шт.

13

A58859

SHIM,.005" Thk

SHIM, , Oil pump to brg. cap .005" Thk

1шт.

14

A63903

NOZZLE CAP

NOZZLE - piston cooling

6шт.

15

A34540

TUBE

TUBE - oil filler and dipstick

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup type, 1-3/8" diameter (Order 41-1622)

3шт.

18

20840R1

PLUG,Cup, 2", Stainless

PLUG - cup type, 2" diameter

1шт.

19

A58750

PLUG,Cup, 3 1/4", Stainless

PLUG - cup, 3-1/4 inch diameter (Order 41-1652)

1шт.

20

217-103

COCK, DRAIN

VALVE - drain, 1/4 inch PT

1шт.

21

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG - cup, 1-3/8 inch diameter (Order 41-1622)

1шт.

28

238-5216

O-RING,0.139" Thk x 1.109" ID, -216, Cl 5, 75 Duro

O-RING, -216, 70 Duro, 1.109" ID x .139" Thk

1шт.

29

L47766

CLAMP

CLAMP - extension tube

1шт.

30

A154767

DIPSTICK

DIPSTICK ASSEMBLY - oil level

1шт.

31

A153835

TUBE

TUBE - extension, oil filler

1шт.

Выбрано товаров: 27
