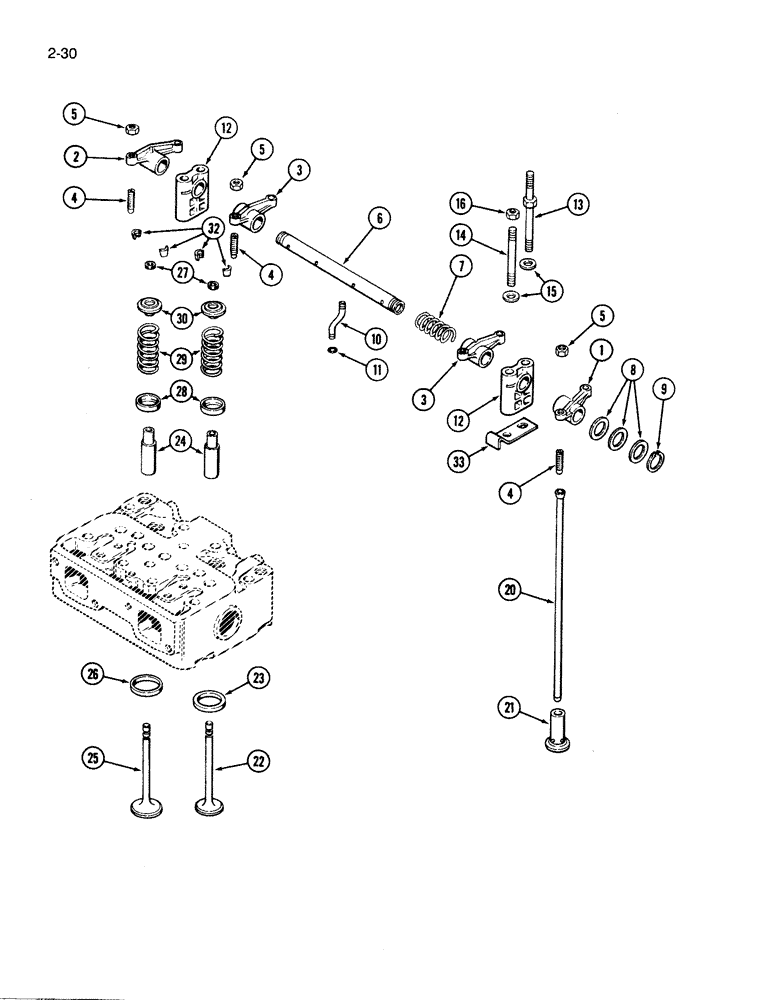

Запчасти Case IH 2594 (2-30) - VALVE MECHANISM, 504BDT DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, exhaust valve (First, third and fifth cylinders)

3шт.

2

A148138

ARM

ASSEMBLY - rocker, exhaust valve (Second, fourth and sixth cylinders)

3шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valve, Includes: Refs. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

5

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

6

A150545

SHAFT

- rocker arm

3шт.

7

A27877

SPRING

- rocker shaft

3шт.

8

A27878

WASHER

- rocker shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker shaft

3шт.

11

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

3шт.

12

A61128

BRACKET

- rocker shaft

6шт.

13

A67121

STUD

-, Serial Range: cover-head

6шт.

14

A58659

STUD

- bracket

6шт.

15

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

12шт.

16

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC

6шт.

20

A157328

ROD

- push

12шт.

21

A182179

TAPPET

LIFTER - push rod (Standard) (Replaces A20865)

12шт.

21

A21857

TAPPET

LIFTER - push rod, 0.010 inch oversize

12шт.

22

A182173

VALVE, ENG EXHAUST,

VALVE - exhaust (Stellite)

6шт.

23

A66192

INSERT

- exhaust valve seat

6шт.

24

A41783

GUIDE

- valve stem, intake and exhaust (Single guide)

6шт.

25

A182172

VALVE,ENGINE,INLET,S

VALVE - intake (Stellite)

6шт.

26

A66191

INSERT

- intake valve seat

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- valve spring

12шт.

29

A66444

SPRING

- valve

12шт.

30

A66336

ROTATOR

ROTO CAP - exhaust and intake valve

12шт.

32

A27872

LOCK

- retainer

24шт.

33

A157197

STRAP

- gasket locater

6шт.
