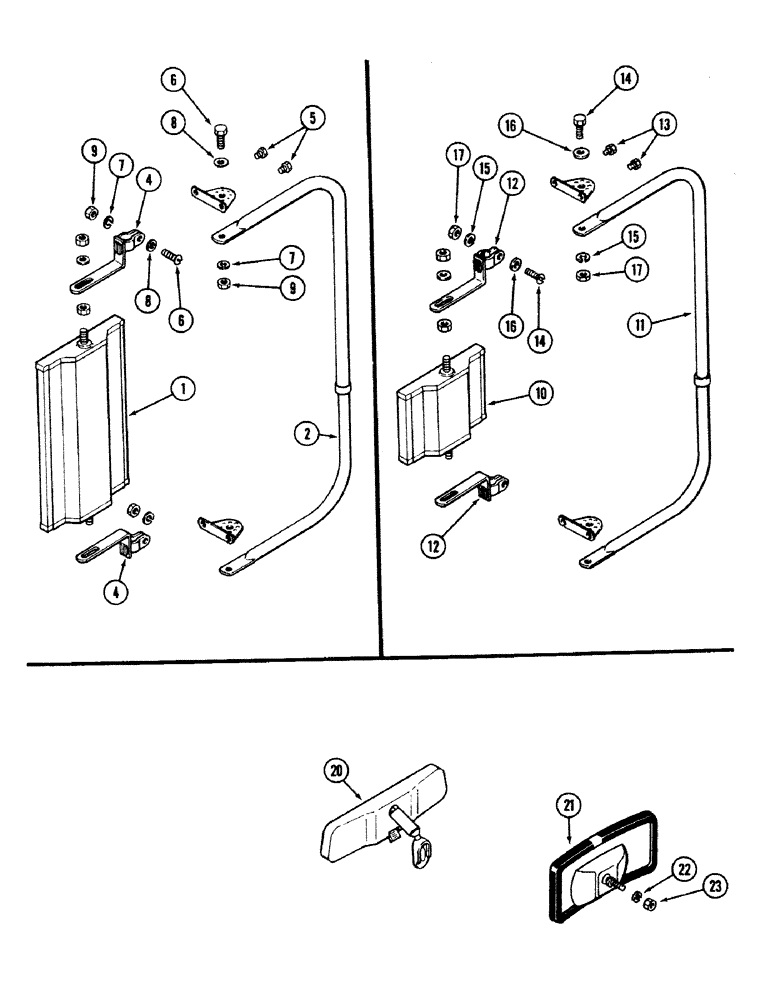

Запчасти Case IH 2594 (9-156) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS

A61895

ATTACHMENT

- side mirror (Chrome) (Order A177935), Includes: Ref. 1 - 9

1шт.

1

A42765

MIRROR

- dual vision

1шт.

2

A42764

BRACKET

- mirror, swing away

1шт.

4

A42767

ADAPTER

- mirror bracket

1шт.

4

A42766

ADAPTER

- mirror bracket (Order A42767)

1шт.

5

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

4шт.

6

113-56

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch

4шт.

7

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, plated

4шт.

A177935

MIRROR

ASSEMBLY - dual vision, black, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

MIRROR - dual vision (Order A177935)

1шт.

5

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch

4шт.

6

113-56

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch

4шт.

7

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

8

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, plated

4шт.

A61897

KIT

ATTACHMENT - mirror, 4 x 6 covex (Order A177935), Includes: Ref. 10 - 17

1шт.

10

A42768

MIRROR

- 4 x 6 convex

1шт.

11

A42764

BRACKET

- mirror, swing away, 4 x 6 convex

1шт.

12

A42767

ADAPTER

- mirror bracket, 4 x 6 convex

2шт.

13

281-1476

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/8 inch, 4 x 6 convex

4шт.

14

113-56

BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5

- hex, 1/4 NC x 1-5/8 inch, 4 x 6 convex

4шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , 4 x 6 convex 1/4"

4шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), 4 x 6 convex 1/4", SAE

4шт.

17

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, plated, 4 x 6 convex

4шт.

20

F64550

MIRROR

ASSEMBLY - rear view (If equipped), inside, Includes: Ref. 22 and 23

1шт.

21

A177462

MIRROR

ASSEMBLY - rear view (If equipped), inside, Includes: Ref. 22 and 23

1шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , inside rear view 5/16"

1шт.

23

425-105

NUT,5/16"-18, G5

Inside rear view 5/16"-18, G5

1шт.
