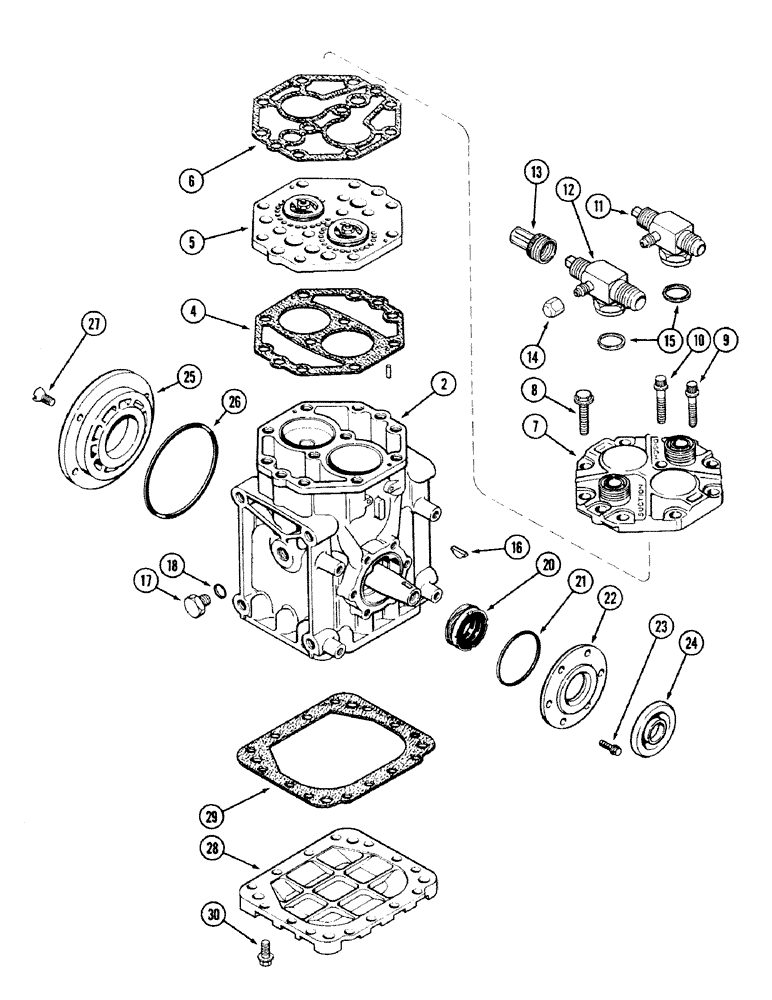

Запчасти Case IH 2594 (9-154) - AIR CONDITIONING, AIR COMPRESSOR (09) - CHASSIS/ATTACHMENTS

417888C92

COMPRESSOR

ASSEMBLY - air conditioning (Replaces A141060), Includes: Ref. 2 - 30

1шт.

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C92

1шт.

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE - compressor

1шт.

A45420

VALVE

KIT - valve plate, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - valve, Serial Range: plate-crankcase

1шт.

Part of Gasket Kit, 1349392C1

1шт.

5

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

6

NSS

NOT SOLD SEPARAT

GASKET - cylinder head to valve plate

1шт.

Part of Gasket Kit, 1349392C1

1шт.

7

NSS

NOT SOLD SEPARAT

CYLINDER HEAD - compressor

1шт.

8

A42949

FLANGE BOLT

BOLT - hex, flange head, 5/16 NC x 1-3/8 inch

8шт.

9

A42947

SCREW,5/16" - 18 x 1.375", Grade 6, Steel

BOLT - Ferry head, 5/16 NC x 1-3/8 inch

2шт.

10

A42948

12 PT SCREW,5/16" - 18 x 1.516", Gr 6

BOLT - Ferry head, 5/16 NC x 1-17/32 inch

2шт.

11

A42936

VALVE

ASSEMBLY - roto-lock, discharge, 1/2 inch port, Includes: Ref. 13 and 14

1шт.

12

A42937

VALVE

ASSEMBLY - roto-lock, suction, 5/8 inch port, Includes: Ref. 13 and 14

1шт.

13

A42944

CAP

- sleeve, valve stem

2шт.

14

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

2шт.

15

A42938

GASKET

- roto-lock to cylinder head

2шт.

16

A42939

KEY

- crankshaft, No. 6

1шт.

17

414-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

- hex, 3/8 NF x 1/2 inch

2шт.

18

NSS

NOT SOLD SEPARAT

O-RING - filter and level plug

2шт.

592263C91

SEAL KIT

SEAL KIT - shaft front, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - crankcase

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - seal plate

1шт.

Part of Gasket Kit, 1349392C1

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - seal retaining

1шт.

23

A42961

CAPTIVE WASHER SCREW,Hex, #10 - 24 x 0.469", Full Thd

BOLT - hex washer head, No. 10 NC x 7/16 inch

6шт.

24

A42965

CAP

- dust, crankshaft oil seal

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - crankcase rear

1шт.

26

NSS

NOT SOLD SEPARAT

SCREW - rear, Serial Range: housing-crankcase

4шт.

Part of Gasket Kit, 1349392C1

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - crankcase base

1шт.

29

NSS

NOT SOLD SEPARAT

GASKET - base plate

1шт.

30

NSS

NOT SOLD SEPARAT

BOLT - base, Serial Range: plate-crankcase

12шт.

1349392C1

GASKET KIT

- complete overhaul, Includes: Ref. 4, 6, 18, 21, 26, and 29

1шт.
