Запчасти Case IH 2594 (2-22) - EXHAUST SYSTEM (02) - ENGINE

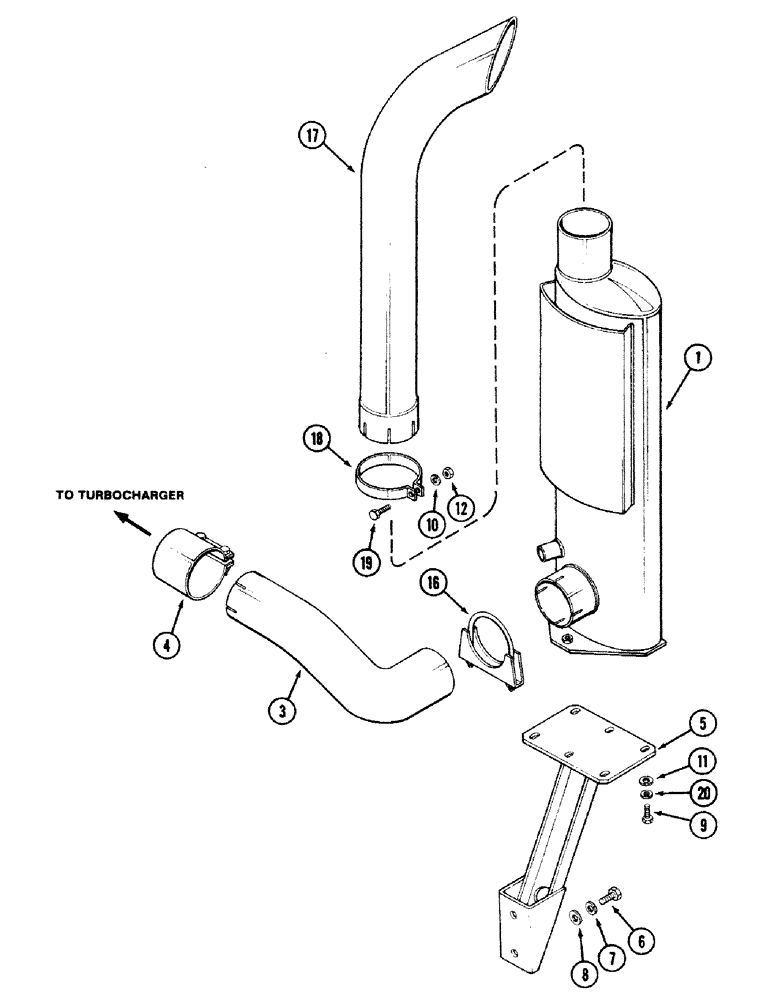

Схема запчастей Case IH 2594 - (2-22) - EXHAUST SYSTEM (02) - ENGINE
5
8
20
9
1
4
6
19
7
18
17
11
3
16
10
12

Артикул

Название

Примечание

Количество

1

A147100

MUFFLER

- exhaust, aspirated

1шт.

3

A181074

PIPE

- exhaust, turbocharger to muffler (Replaces A147104)

1шт.

4

A149249

ASSEMBLY

SEAL - clamp, exhaust, Serial Range: pipe-turbocharger

1шт.

5

A147103

SUPPORT

- muffler

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

3шт.

10

492-11038

LOCK WASHER,3/8"

3шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

12

129-770

NUT,3/8"-16, G5

- hex, 3/8 inch NC

1шт.

16

A162896

CLAMP

- band, muffler to turbocharger elbow

1шт.

17

A181267

TUBE

EXTENSION - exhaust (Replaces A141777)

1шт.

18

A162895

CLAMP

- extension

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

492-11038

LOCK WASHER,3/8"

3шт.

Выбрано товаров: 16
