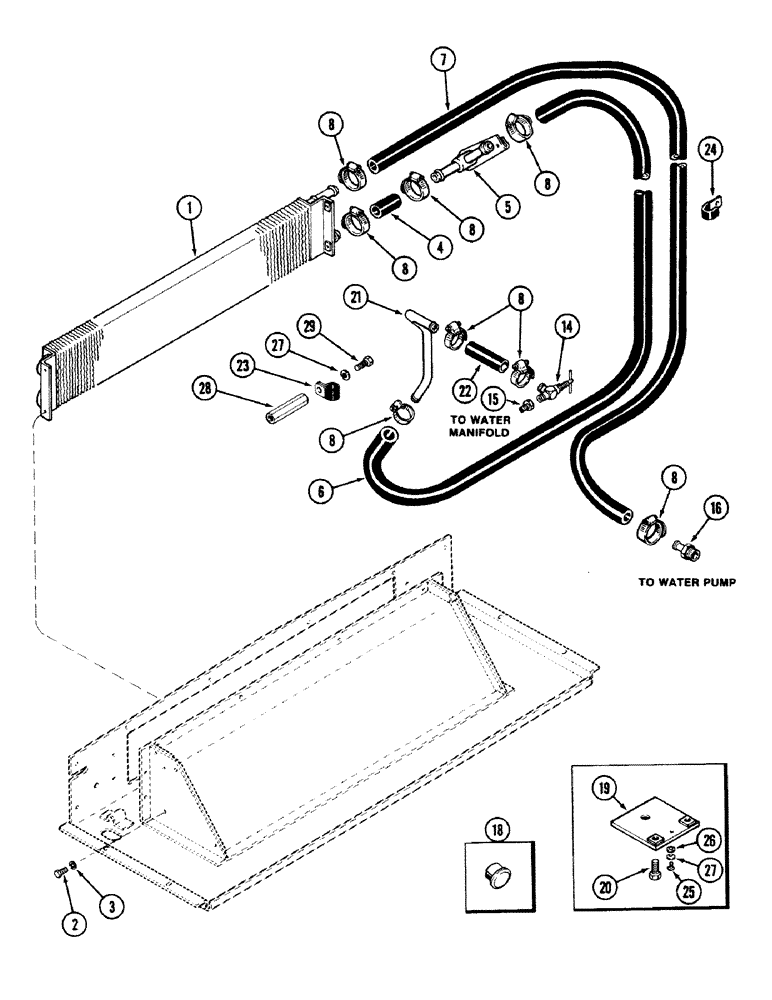

Запчасти Case IH 2594 (9-130) - CAB, HEATER, PRIOR TO CAB SERIAL NO. 12093701, PRIOR TO EUROPEAN CAB SERIAL NO. 12092344 (09) - CHASSIS/ATTACHMENTS

1

F63680

CORE

- heater

1шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

3

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

NSS

NOT SOLD SEPARAT

HOSE - core to valve (Order A42610)

1шт.

5

F63865

VALVE

- flow control, heater

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - valve outlet (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - core inlet, black with red (Order A42610)

1шт.

8

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

8шт.

14

301803R1

SHUT-OFF VALVE

VALVE ASSEMBLY - shut off (Replaces A16764)

1шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

16

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

ADAPTER - straight, 5/8 stem end x 1/2 inch PT

1шт.

18

F64485

GROMMET

PLUG - heater hose

2шт.

19

F98277

PLATE ASSY.

PLATE - hose support

1шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

21

A149953

TUBE

- heater hose

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater (Order A42610)

1шт.

23

49885

CLAMP

- tube

1шт.

24

A160691

CLAMP

- hose

2шт.

25

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW - self-tapping, hex head, No. 12 NC x 1/2 inch

1шт.

26

195-526

WASHER,7/16" x 7/8" x .083"

- flat, 7/16 x 7/8 x 5/64 inch

1шт.

27

492-11038

LOCK WASHER,3/8"

1шт.

28

A164486

NUT

- heater hose spacer

1шт.

29

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.
