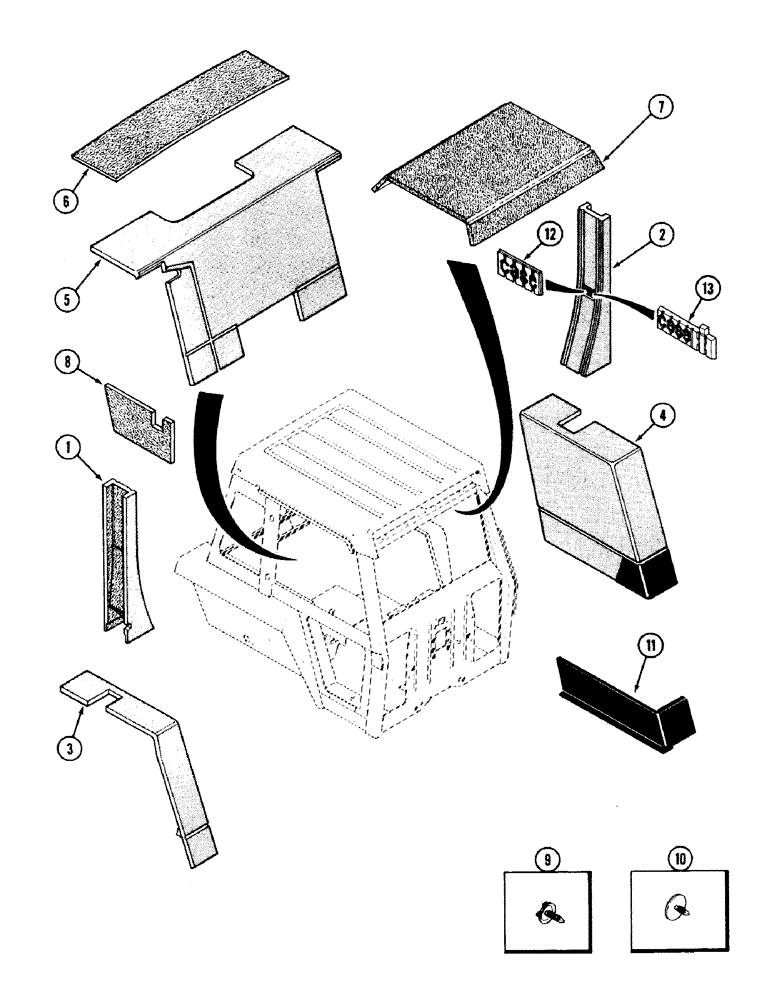

Запчасти Case IH 2594 (9-118) - CAB, ACOUSTICAL COVERS (09) - CHASSIS/ATTACHMENTS

1

R52701

LINING

COVER - post, right Case IH (Order R52700)

1шт.

3

F64994

COVER

- fender, right

1шт.

4

F64995

COVER

- fender, left

1шт.

5

F66005

COVER

- fuel tank

1шт.

6

F63352

FOAM

PAD - heat barrier, upper rear

1шт.

7

F66137

PAD

- headliner

1шт.

8

F64825

PAD

- fender, lower right

1шт.

9

F66031

CLIP

- retainer, 1/4 inch

11шт.

9

R53631

ANCHOR

CLIP - retainer, 1/4 inch (Order F66031)

4шт.

10

A176975

ANCHOR

FASTENER - cover

4шт.

11

A177787

RUBBER PAD

PAD - kick

1шт.

12

A177741

SYMBOLS

EMBLEM - Case logo

2шт.

13

A181538

EMBLEM CASE/IH

EMBLEM - Case IH logo

2шт.
