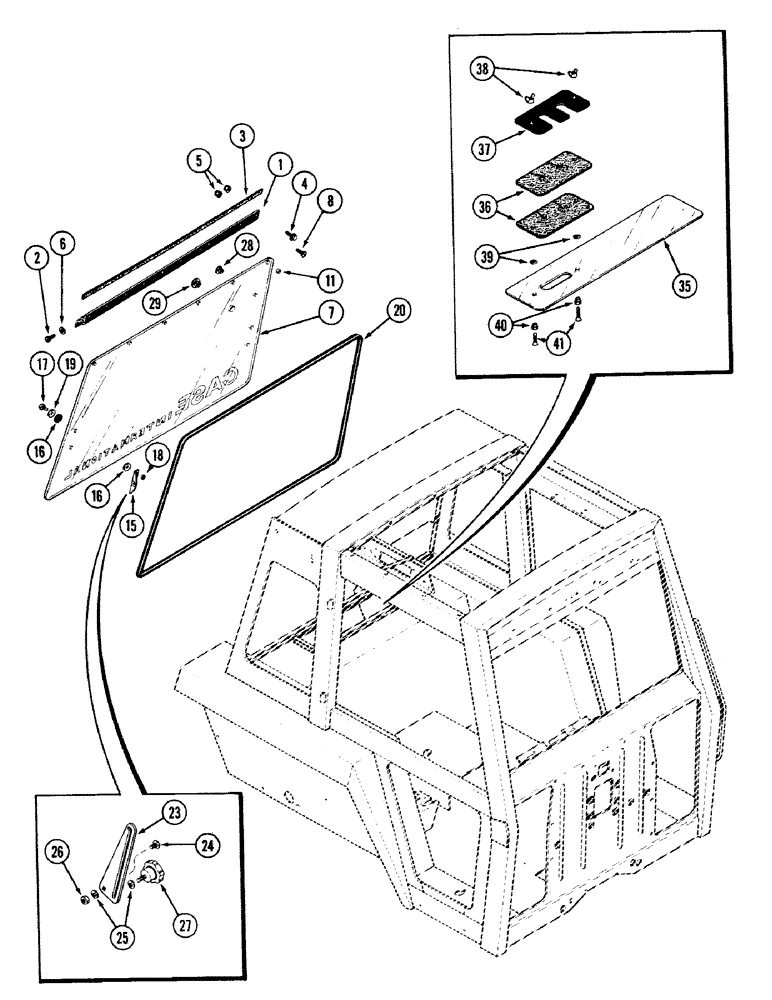

Запчасти Case IH 2594 (9-110) - CAB (09) - CHASSIS/ATTACHMENTS

1

F66132

HINGE

- rear window

1шт.

2

280-1848

SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"

SCREW - self-tapping, hex washer head, No. 8-18 x 1/2 inch

8шт.

3

NSS

NOT SOLD SEPARAT

SEAL - hinge (Order F64119 and, Serial Range: cut-length)

1шт.

4

163-42

SCREW,Hex Wshr Hd, #10 - 24 x 1/2", Gr 5

- machine, hex washer head, No. 10 NC x 1/2 inch

10шт.

5

F45165

SPECIAL NUT,#10-24

NUT - hex lock, No. 10-24, teflon

10шт.

6

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

4шт.

7

REF

INSTRUCTION

GLASS ASSEMBLY - window, with hinge (See Figure 9-114)

1шт.

8

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

6шт.

11

F66023

SPACER

-, Serial Range: hinge-glass

1шт.

15

F64138

BRACKET

- regulator arm

2шт.

16

F45315

WASHER

- shoulder

20шт.

17

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

18

F45165

SPECIAL NUT,#10-24

NUT - hex lock, No. 10-24, teflon

12шт.

19

195-81026

WASHER,.266" x 13/16" x .079"

- flat, No. 10

4шт.

20

F64677

SEAL

SEAL - window (Order F64499)

1шт.

23

F64779

REGULATOR

ARM - regulator

2шт.

24

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

25

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

26

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

27

F64253

KNOB

- regulator

2шт.

28

F66089

PLUG

- window, 3/8 inch diameter

1шт.

29

F66090

PLUG

- window, 29/32 inch diameter

1шт.

A163882

KIT - window, lower rear (Machinery item), Includes: Ref. 35 - 41

1шт.

35

A163883

WINDOW

- rear lower (See Figure 9-114 for standard window)

1шт.

36

A165354

SEAL

- cable access, lower rear window

2шт.

37

A165352

PLATE

- cable access, lower rear window

1шт.

38

129-500

WING NUT,#10-32

NUT - wing, No. 10, lower rear window

2шт.

39

A165523

FASTENER

- flat, Tinnerman, No. 10-24, lower rear window

2шт.

40

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

- washer, lower rear window

2шт.

41

442-11016

SCREW,Cross Oval Hd, #10-24 x 1"

- machine, oval head Phillips, No. 10 NC x 1 inch, lower rear window

2шт.
