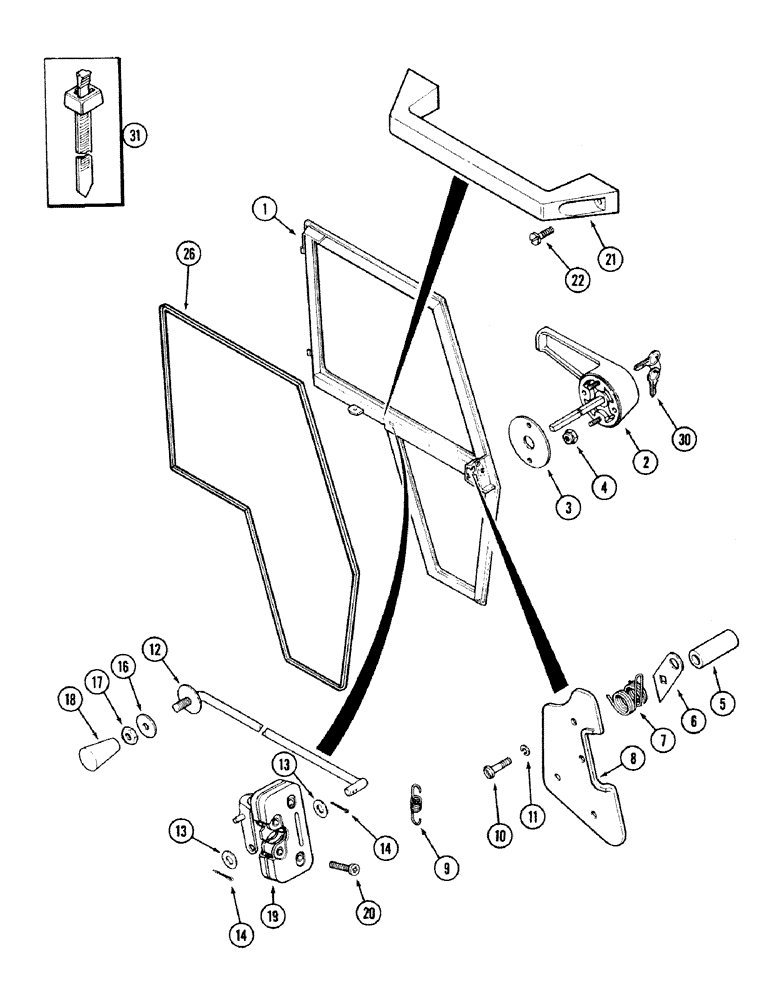

Запчасти Case IH 2594 (9-106) - CAB, DOOR AND LATCH (09) - CHASSIS/ATTACHMENTS

F97270

DOOR ASSEMBLY - complete (Includes glass) (Order F97065), Includes: Ref. 1 - 26 and moulding

1шт.

Order glass from Figure: 9-114.

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR - cab (Order F97065)

1шт.

2

F66158

HANDLE - outer (Order F66157)

1шт.

3

F64342

GASKET,1.6mm Thk

- door handle

1шт.

4

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

5

F64358

SPACER

- shaft

1шт.

6

F64371

ARM

- door latch

1шт.

7

F64338

SPRING

- handle, door latch

1шт.

8

F66086

COVER ASSY

COVER - door latch

1шт.

9

F45162

SPRING

- extension

1шт.

10

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- machine, pan head Phillips, 1/4 NC x 1/2 inch

4шт.

11

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

4шт.

12

F98226

ROD

- pull, door latch

1шт.

13

F64384

WASHER

- nylon

2шт.

14

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

F64340

WASHER

- shoulder

1шт.

17

131-1290

NUT - hex, jam, self-locking, 1/4 inch NC

1шт.

18

F64341

KNOB

- latch rod

1шт.

19

F66155

LATCH

- rotary, door

1шт.

20

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

- special, x-recess, 1/4 NC x 1 inch

4шт.

21

F64890

HANDLE

- door, inner (Order F64547)

1шт.

22

140-112

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

2шт.

26

F64880

STRIP

SEAL - door (Order R53628)

1шт.

NSS

NOT SOLD SEPARAT

MOULDING - glass and door, upper (Order A42677 and, Serial Range: cut-length)

1шт.

NSS

NOT SOLD SEPARAT

MOULDING - glass and door, lower (Order A42677 and, Serial Range: cut-length)

1шт.

30

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2) (Also used as ignition key)

1шт.

31

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.
