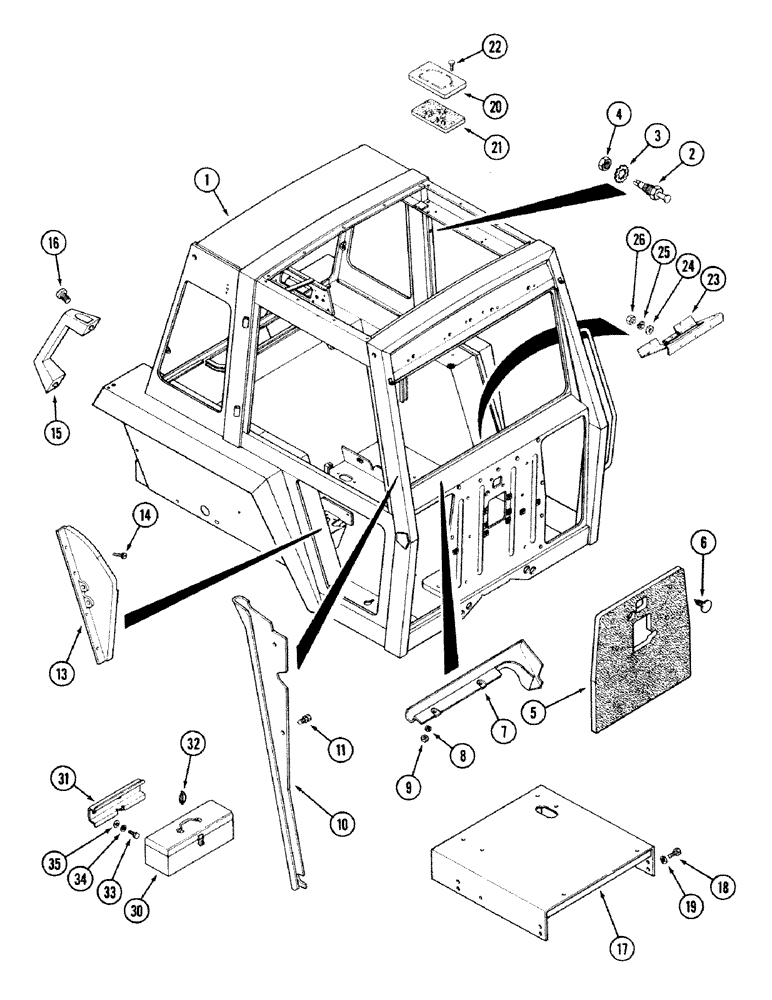

Запчасти Case IH 2594 (9-104) - CAB, FRAME AND ATTACHING PARTS (09) - CHASSIS/ATTACHMENTS

F98350

CAB

- includes door, glass and headliner

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - cab

1шт.

2

F63895

SWITCH

- dome light, door opening

1шт.

3

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

4

425-105

NUT,5/16"-18, G5

1шт.

5

A167044

PAD

- firewall

1шт.

6

A166346

FASTENER

- pad, firewall

6шт.

7

F64719

COVER

- harness

1шт.

8

195-81009

WASHER,5/16" x 3/4" x .065"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

9

129-119

NUT,1/4"-20, G5

2шт.

10

F64614

COVER ASSY

COVER - harness

1шт.

11

F64646

PIN

- speed

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE - console support

1шт.

14

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - slotted hex, No. 10 x 3/4 inch

4шт.

15

F64547

HANDLE

- grab

2шт.

16

140-116

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

4шт.

17

A176205

CHANNEL

- seat base (Air/Oil seat)

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

F64989

COVER ASSY

COVER - port, air/oil seat

1шт.

21

F66075

SEAL

- cover

1шт.

22

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

23

F66067

PANEL

- column support

1шт.

24

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

3шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

26

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

A185128

BOX, TOOL

BOX ASSEMBLY - tool (Order components), Includes: Ref. 30 - 35

1шт.

30

A181436

TOOL BOX

BOX, TOOL

1шт.

31

A181434

SUPPORT

BRACKET - mounting, tool box

1шт.

32

A30338

PIN

- self locking, 1/4 inch, tool box

1шт.

33

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, plated, tool box

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Tool box 1/2"

2шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64"), Tool box 1/2", SAE

2шт.
