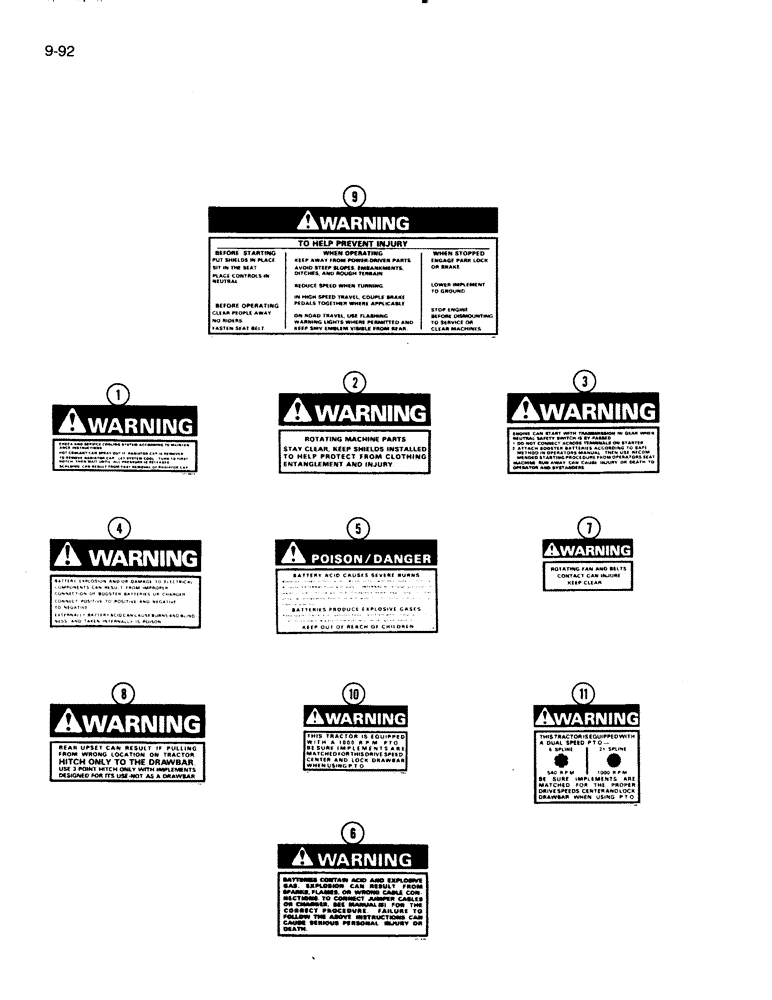

Запчасти Case IH 2594 (9-092) - DECALS, SAFETY (09) - CHASSIS/ATTACHMENTS

A67551

DECAL

KIT - safety decals (Order components), Includes: Ref. 1 - 11

1шт.

1

321-6672

DECAL

- warning, check and service cooling system

1шт.

2

321-6715

DECAL

- warning, PTO

1шт.

3

321-3709

DECAL

- warning, starting

1шт.

4

321-3707

DECAL

- battery booster cables (If equipped) (Order 321-6714)

1шт.

5

321-2996

DECAL

- caution acid (If equipped) (Order 321-6714)

1шт.

6

321-6714

DECAL

- battery (Replaces 321-3707 and 321-2996)

1шт.

7

321-3596

DECAL

- warning, rotating fan and belts

2шт.

8

321-3845

DECAL

- drawbar and hitch

1шт.

9

321-6641

DECAL

- operating instructions

1шт.

10

321-3900

DECAL

- 1000 RPM PTO

1шт.

11

321-3901

DECAL

- speed PTO (Not used this application)

1шт.

A46520

DECAL

KIT - decals, French language, Includes: Ref. 1 - 11 and Decals below

1шт.

Kit also includes items listed on Figure 9-88 and 9-90.

1шт.

1

321-6701

DECAL

- warning, cooling system, French language

1шт.

2

321-6647

DECAL

- warning, rotating PTO, French language

1шт.

3

321-5581

DECAL

- warning, starting, French language

1шт.

4

321-5582

DECAL

- battery booster cable (If equipped) (Order 321-6719), French language

1шт.

5

321-5531

DECAL

- battery acid (If equipped) (Order 321-6719), French language

1шт.

6

321-6719

DECAL

- battery (Replaces 321-5582 and 321-5531), French language

1шт.

7

321-5604

DECAL

- warning, fan belt, French language

2шт.

8

321-5580

DECAL

- warning, hitch instructions, French language

1шт.

9

321-6660

DECAL

- operating instructions, French language

1шт.

10

321-5621

DECAL

- warning, 1000 rpm PTO, French language

1шт.

11

321-5585

DECAL

- warning, dual speed PTO (Not used this application), French language

1шт.

321-5791

DECAL

- warning, hitch pin/PTO, French language

1шт.

321-5583

DECAL

- operating instruction (Not used this application), French language

1шт.

321-5619

DECAL

- operating instruction (Not used this application), French language

1шт.

321-5790

DECAL

- warning, implement lift, French language

1шт.
