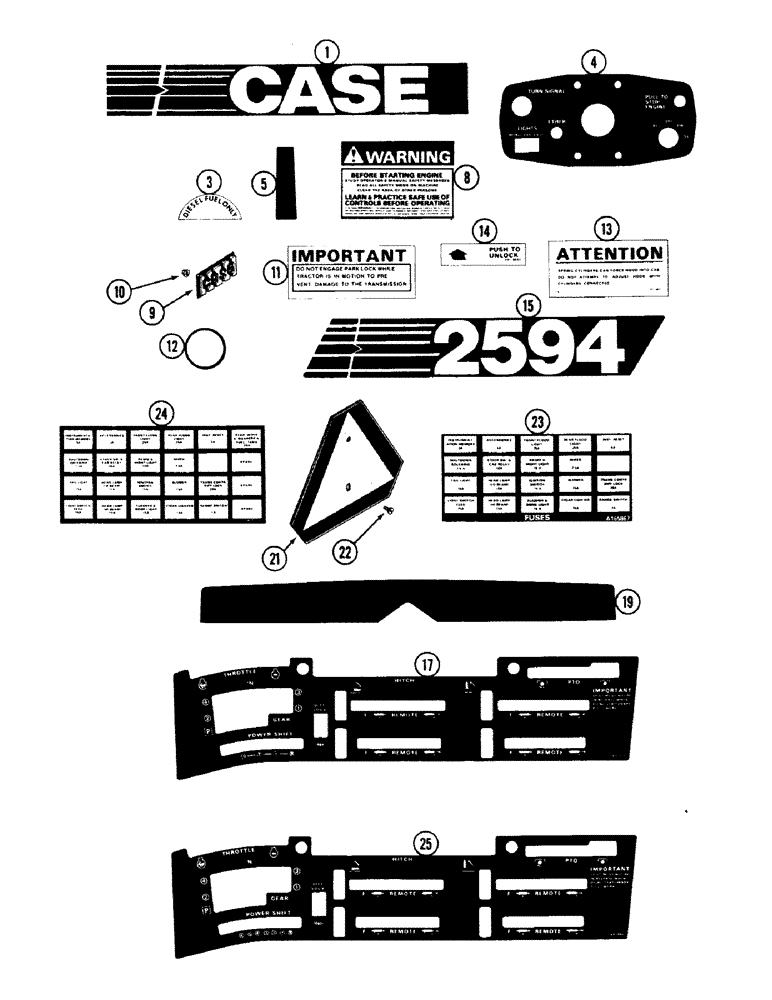

Запчасти Case IH 2594 (9-088) - DECALS, CASE TRACTOR (09) - CHASSIS/ATTACHMENTS

A67552

DECAL

KIT - decal, tractor (Order components), Includes: Ref. 1 - 14

1шт.

1

A167963

DECAL

- Case (Right fender panel) (Shown)

1шт.

1

A167964

DECAL

- Case (Left fender panel)

1шт.

3

321-4493

DECAL

- diesel fuel (On filler cap), Serial Range: -9937533

1шт.

4

A167975

DECAL

- control panel (On steering column)

1шт.

5

321-4142

DECAL

- sight line

1шт.

8

321-3705

DECAL

- warning, before starting engine

1шт.

9

321-4739

EMBLEM

- Case, on grille

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push on type, 1/4 inch, plated

2шт.

11

321-5264

DECAL

- park lock

1шт.

12

A167962

DISC

PLATE - flasher, insert (If equipped)

1шт.

13

321-4621

DECAL

- hood tilt adjust

2шт.

14

321-4622

DECAL

- instructions, hood unlatch

1шт.

15

A167971

DECAL

- 2594 (Right fender panel) (Shown)

1шт.

15

A167972

DECAL

- 2594 (Left fender panel)

1шт.

17

A167977

DECAL

- console, 12 speed

1шт.

19

321-6446

DECAL

- cab roof

1шт.

21

A163604

DECAL

EMBLEM - slow moving vehicle (Order D123347)

1шт.

22

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

- machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

23

A165867

DECAL

- fuse location (If equipped) (Order A1276251)

1шт.

24

A177790

DECAL

- fuse location (If equipped)

1шт.

25

A167980

DECAL

- console, 24 speed

1шт.

321-5653

DECAL

12 speed chart

1шт.

A143220

DECAL

KIT - safety decals (Order components) (See Figure 9-92)

1шт.

A46520

DECAL

KIT - decals, French language , Includes: Ref. 3 - 14 and Decals below

1шт.

3

321-5793

DECAL

- diesel fuel, French language

1шт.

8

321-6646

DECAL

- starting instructions, French language

1шт.

11

321-5789

DECAL - park lock, French language

1шт.

13

321-5624

DECAL - tilt hood adjusting, French language

2шт.

14

321-5625

DECAL

- hood unlatch, French language

1шт.

321-6206

DECAL - steering console (Note used this application), French language

1шт.

321-5792

DECAL - 12 speed chart (Note used this application), French language

1шт.

321-5627

DECAL - 12 speed chart (Note used this application), French language

1шт.

321-5626

DECAL - 8 speed (Note used this application), French language

1шт.

321-5861

DECAL - fuse location (On firewall), French language

1шт.

A176278

DECAL

- fuse location (Inside fuse panel cover), French language

1шт.
