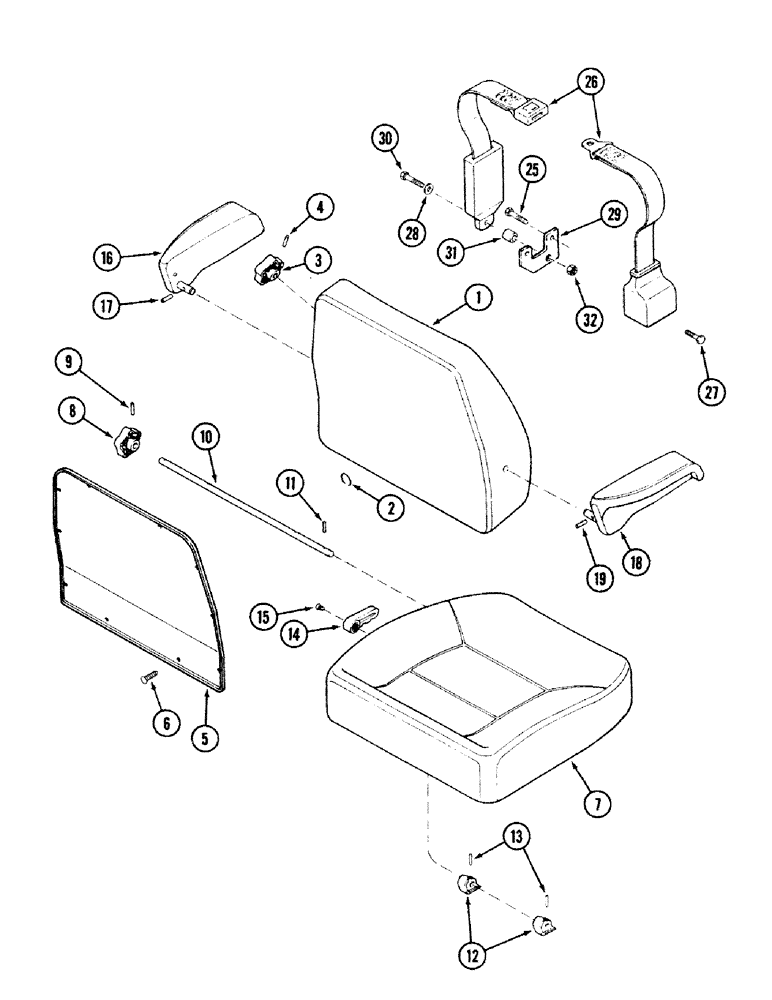

Запчасти Case IH 2594 (9-076) - CLOTH SEAT, AIR SUSPENSION (09) - CHASSIS/ATTACHMENTS

1340261C2

SEAT

ASSEMBLY - air suspension, Includes: Ref. 1 - 32 and cushion kit and seat knob kit

1шт.

1981813C3

PACKAGE, REPAIR

CUSHION KIT - seat and backrest, Includes: Ref. 1 - 15

1шт.

1

127369A1

BACKREST COVER

CUSHION ASSEMBLY - backrest, Includes: Ref. 2 - 4 and backrest pad kit

1шт.

1981816C2

PACKAGE,SERVICE

KIT - backrest pad, Includes: Ref. 2 and pad

1шт.

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

2

NSS

NOT SOLD SEPARAT

RING - hog

22шт.

3

NSS

NOT SOLD SEPARAT

KNOB - lumbar adjusting

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

4

138-2024

PIN,5/32" x 1", Coiled

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

1981820C2

PACKAGE, REPAIR

KIT - backrest cover, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER - backrest

1шт.

6

1999693C1

KIT

RETAINER - seat back, package of 12

1шт.

700712452

CUSHION, SEAT

CUSHION ASSEMBLY - seat, Includes: Ref. 7 - 15

1шт.

7

1981815C2

CUSHION, SEAT

CUSHION - seat

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB - seat tilt

1шт.

9

138-2024

PIN,5/32" x 1", Coiled

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - cam

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

CAM - seat tilt

2шт.

13

NSS

NOT SOLD SEPARAT

PIN - retaining

2шт.

14

NSS

NOT SOLD SEPARAT

LEVER - backrest tilt

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - machine

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

1981818C1

ARMREST

KIT - armrest, left hand, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

ARMREST - seat, left hand

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

1974703C2

ARMREST ASSY.

KIT - armrest, right hand, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

ARMREST - seat, right hand

1шт.

19

NSS

NOT SOLD SEPARAT

PIN - retaining

1шт.

1344158C1

SET

KIT - seat belt (Order components), Includes: Ref. 25 - 32

1шт.

25

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

26

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

27

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

28

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

29

1975957C1

BRACKET

- seat belt

1шт.

30

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

1шт.

31

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

- seat belt

1шт.

32

232-417

NUT - hex, self-locking, 7/16 inch NC

1шт.

1999691C1

PACKAGE,SERVICE

KIT - seat knob, Includes: Ref. 3, 4, 8, 9, 14 and 15 on Figure 9-076 and Figure 9-078)

1шт.
