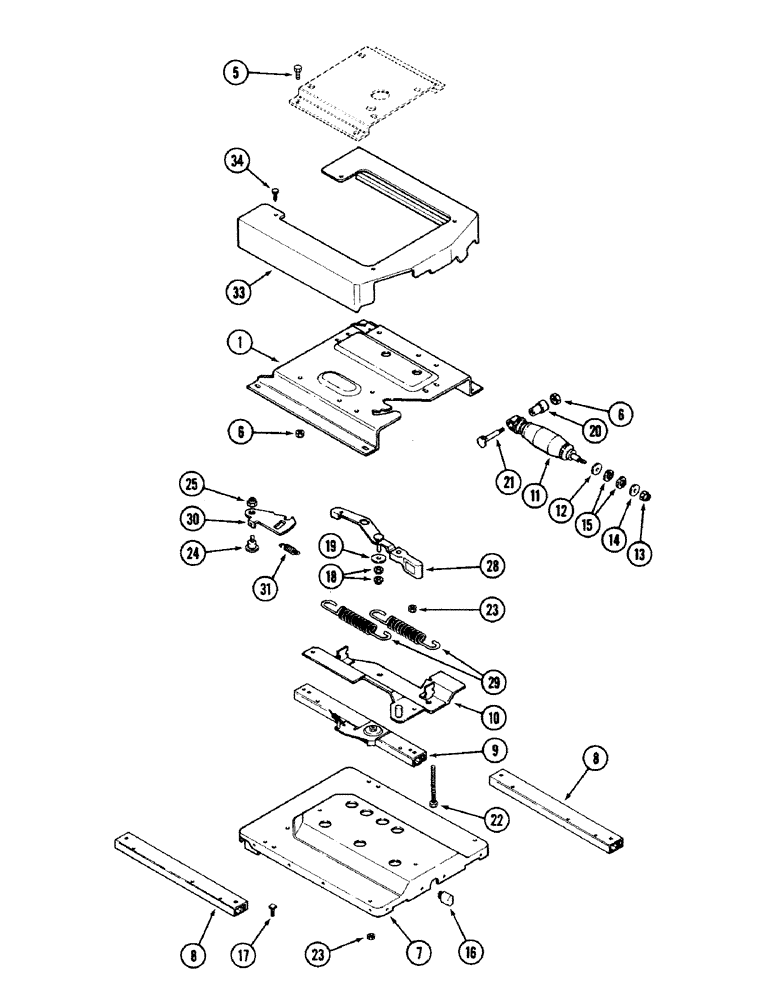

Запчасти Case IH 2594 (9-066) - CLOTH SEAT, AIR/OIL SUSPENSION, P.I.N. 9938101 AND AFTER (09) - CHASSIS/ATTACHMENTS

A181028

SEAT

ASSEMBLY - air/oil suspension (Order seat 1340261C2 and channel 1975275C1) (See Figure: 9-74), Includes 1 - 34

1шт.

A49818

HOUSING

ISOLATOR ASSEMBLY - seat, Includes: Ref. 1 - 31

1шт.

1

A49820

PLATE ASSY.

PLATE - top

1шт.

5

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

4шт.

7

A49539

CLIP

HOUSING - isolator, upper

1шт.

8

A49540

SLIDE

ASSEMBLY - isolator

2шт.

9

1974664C2

SLIDE

ASSEMBLY - isolator (With latch)

1шт.

10

A49819

BRACKET

- mounting, shock absorber

1шт.

11

1990646C3

PACKAGE

ABSORBER - shock, isolator

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

13

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

14

A49678

WASHER

- flat, 21/64 x 1 x 5/64 inch

1шт.

15

A49679

BUSHING

- rubber

2шт.

16

A49549

INSULATOR BLOCK

BUMPER - isolator

2шт.

17

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch, grade 2

5шт.

18

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

NUT - push-on type, 1/4 x 17/32 inch

2шт.

19

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

1шт.

20

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

- shock absorber

1шт.

21

A45056

STEP BOLT

BOLT - shoulder

1шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

23

230-4115

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

12шт.

24

A49546

BOLT

- shoulder

1шт.

25

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

28

A49821

HANDLE

- isolator

1шт.

29

A49823

SPRING

- shock absorber

1шт.

30

A49547

LATCH

- isolator

1шт.

31

A49548

SPRING

- latch

1шт.

33

A49816

CABLE ASSY.

SHROUD - isolator

1шт.

34

A49622

CLIP

- retaining

4шт.
