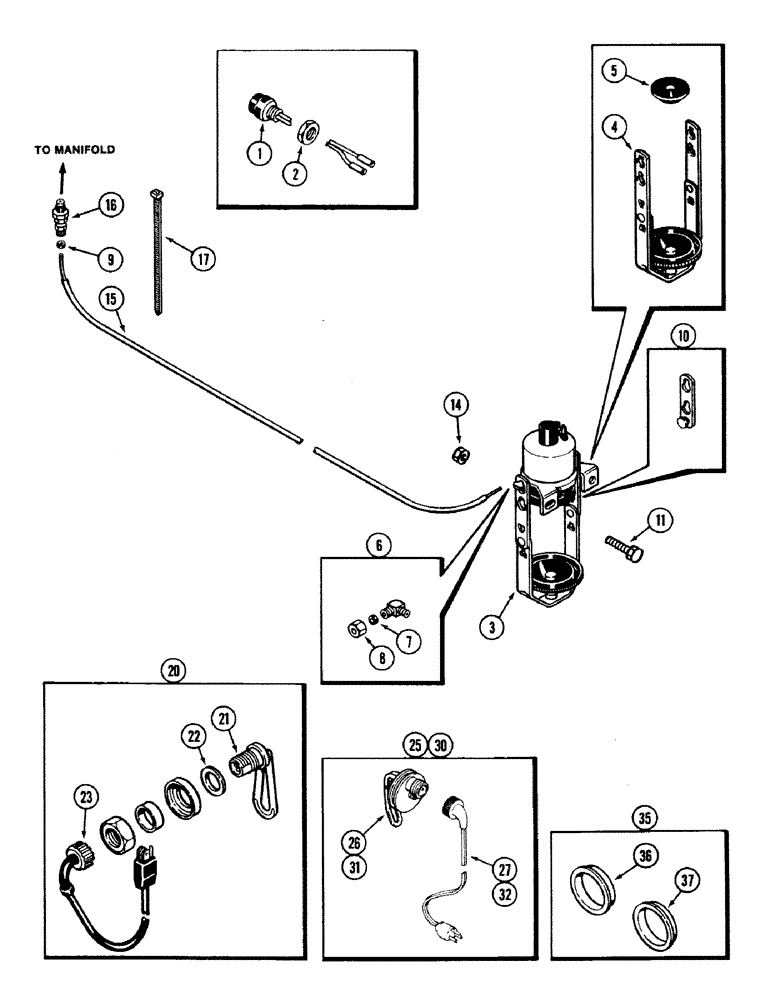

Запчасти Case IH 2594 (2-14) - COLD START ASSISTANCE, 504BDT DIESEL ENGINE, ETHER START (02) - ENGINE

1

A135520

SWITCH

- Ether Start

1шт.

2

4251110

NUT - hex, 5/8 inch NF

1шт.

3

A143381

SOLENOID

ASSEMBLY - ether start, Includes: Refs. 4 - 8

1шт.

4

D77648

BAIL

HANGER - can, ether

1шт.

5

395686R1

GASKET

- can

1шт.

6

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

10

R30812

LINK

- extension, hanger

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.

15

A149932

TUBE

ether injection - 2006 mm (79 in)

1шт.

16

A145070

NOZZLE INJECTION

INJECTOR ASSEMBLY - nozzle

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

20

A155436

RESISTOR

HEATER KIT - cylinder block (Order Ref. 25 or 30), Includes: Refs. 21 - 23

1шт.

Subs to 3 diff. part #'s depending on the use. A182017 & A182020 fit in a frost plug hole approx. 1-7/8" Dia. A182059 has a 1" thread.

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, cylinder block

1шт.

22

A45114

GASKET

- element seal, cylinder block heater

1шт.

23

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, cylinder block

1шт.

25

A182017

HEATER ASSY.

HEATER KIT - cylinder block (Replaces A155436) (U.S.A. only), Includes: Refs. 26 and 27

1шт.

26

A182015

COIL

ELEMENT - heater, cylinder block

1шт.

27

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, cylinder block

1шт.

30

A182020

HEATER ASSY.

HEATER KIT - cylinder block (Canada only), Includes: Refs. 31 and 32

1шт.

31

A182018

MAKING-UP

ELEMENT - heater, cylinder block

1шт.

32

A44813

CABLE EXTENSION

CORD ASSEMBLY - heater, cylinder block

1шт.

35

A44006

SLEEVE

KIT - heater installation (Order components), cylinder block, Includes: Refs. 36 and 37

1шт.

36

A44007

SLEEVE

- heater, 2-1/16 inch diameter hole, cylinder block

1шт.

37

A44008

SLEEVE

- heater, 2-1/8 inch diameter hole, cylinder block

1шт.
