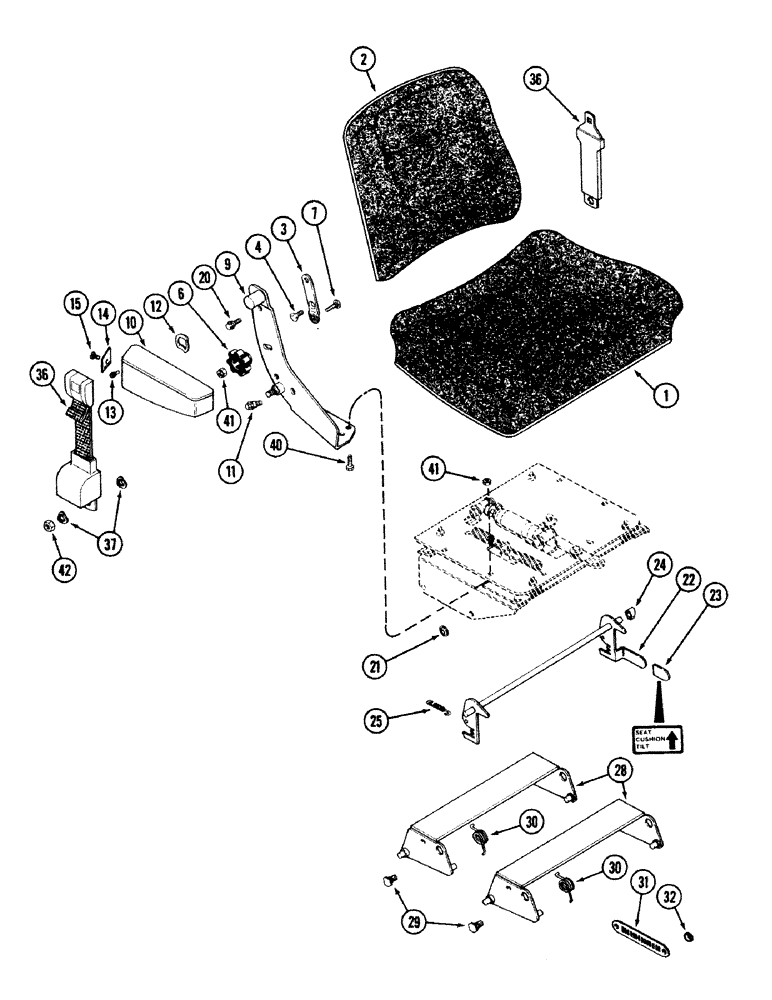

Запчасти Case IH 2594 (9-048) - CLOTH SEAT, WITH ISOLATOR ATTACHMENT (09) - CHASSIS/ATTACHMENTS

A167906

SEAT

AND SUSPENSION ASSEMBLY - operator (Order 1989979C1), Includes: Ref. 1 - 32, seat cushion kit, P/N 1990559C1 and seat cushion assembly, P/N 1990562C1

1шт.

A177452

SEAT

AND SUSPENSION ASSEMBLY - operator (Order 1989979C1), Includes: Ref. 1 - 32, seat cushion kit, P/N 1990559C1 and seat cushion assembly, P/N 1990562C1

1шт.

1990559C1

CUSHION

KIT - seat cushion, Includes: Ref. 1 and 2, cushion assembly, trim, clip, links and screws

1шт.

1990562C1

CUSHION ASSY.

CUSHION ASSEMBLY - seat, Includes cushion, trim and clip

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

N9034

SEAT

TRIM - cushion

1шт.

N6674

CLIP

- retaining, trim

1шт.

1990563C1

PACKAGE

CUSHION ASSEMBLY - backrest, Includes: Ref. 3 and 4 and cushion, trim and clip

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

N9034

SEAT

TRIM - cushion

1шт.

N6674

CLIP

- retaining, trim

1шт.

3

A48343

LINK

- tilt, backrest

2шт.

4

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

- machine, flat head slotted, 3/8 NC x 1 inch

2шт.

6

A45487

BUTTON

KNOB - tilt, backrest (Order 130669A1)

2шт.

7

A45527

CARRIAGE BOLT

- retaining, link

2шт.

9

A46909

BRACKET

- armrest, right (Shown)

1шт.

9

A46910

BRACKET

- armrest, left

1шт.

10

A45489

ARMREST

- seat, right (Shown)

1шт.

10

A45488

ARMREST

- seat, left

1шт.

11

A48347

BOLT

- special

2шт.

12

A47352

WASHER

- wave, 1-1/8 inch ID

2шт.

13

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

14

A45584

COVER

PLATE - cover, right armrest (Shown)

1шт.

14

A45583

PLATE

- cover, left armrest

1шт.

15

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - self-tapping, pan head, No. 10-16 x 5/8 inch

2шт.

20

A48346

BOLT

- hex, special

2шт.

21

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

22

A47346

LEVER

- seat assembly tilt (Order S301391)

1шт.

23

A47347

CAP

- tilt lever

1шт.

24

A45482

BUSHING

SPACER - tilt lever shaft

2шт.

25

A45471

- tension, tilt lever

2шт.

28

A47379

LINK

- cross, seat mounting

2шт.

29

A45473

STEP BOLT

BOLT - special

4шт.

30

A47384

SPRING

- torsion

2шт.

31

A47383

LINK

- connecting

2шт.

32

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

4шт.

36

A46982

SAFETY BELT

SAFETY BELT

1шт.

37

A46987

WASHER

- wave

4шт.

40

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

41

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

6шт.

42

131-492

NUT,1/2"-13

NUT - heavy hex, self-locking, 1/2 inch NC

2шт.
