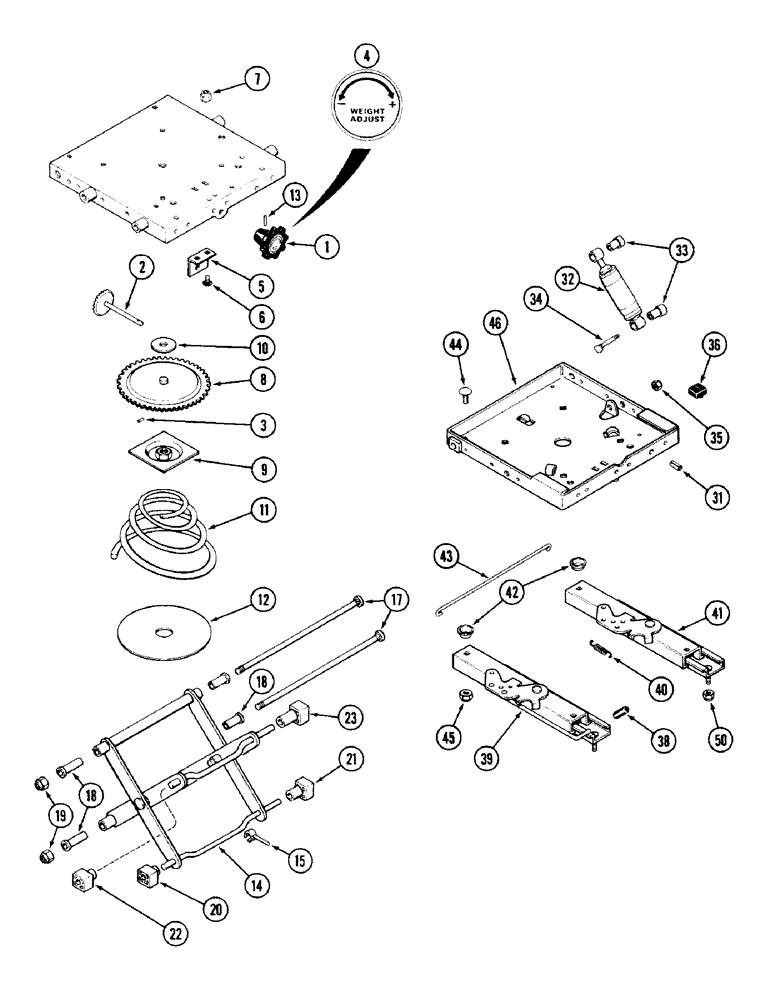

Запчасти Case IH 2594 (9-046) - A177457 VINYL SEAT, WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

A177457

SEAT

AND SUSPENSION ASSEMBLY - vinyl (Without swivel), Includes: Ref. 1 - 50

1шт.

1

A45508

BUTTON

KNOB - adjustment, weight

1шт.

2

A45513

GEAR

- weight adjusting

1шт.

3

38-11016

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

4

A47778

DECAL

- adjusting, weight

1шт.

5

A45531

BRACKET

- shaft

1шт.

6

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - round head, square neck, 1/4 NC x 1/2 inch, grade 2

2шт.

7

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

8

A45505

GEAR

- weight adjusting

1шт.

9

A45504

SPRING WASHER

- spring

1шт.

10

D82834

WASHER

- thrust

1шт.

11

A45497

SPRING

- suspension, weight

1шт.

12

A45530

PAD

- spring

1шт.

13

138-2024

PIN,5/32" x 1", Coiled

1шт.

14

A47759

ARM

ASSEMBLY - weight

1шт.

15

A49160

INDICATOR

- ride height

1шт.

17

112884A1

SHAFT,368mm L

- bearing

2шт.

18

A47760

BUSHING

- shaft

4шт.

19

230-4218

LOCK NUT,1/2"-13, GA

NUT - hex, lock, 1/2 inch NC, plated

4шт.

20

A45512

BLOCK

- slider, 1-3/16 inch

1шт.

21

A45516

BLOCK

- slider, 2-3/16 inch

1шт.

22

A45515

BLOCK

- slider, 1-9/16 inch

1шт.

23

A45517

BLOCK

- slider, 2-9/16 inch

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

32

A45503

SHOCK ABSORBER

ABSORBER - shock, seat

1шт.

33

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

- shock absorber

2шт.

34

A45056

STEP BOLT

BOLT - shoulder

1шт.

35

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

36

A45054

BUMPER,Neoprene

- seat

2шт.

A49654

ADJUSTER

ASSEMBLY - seat, Includes: Ref. 38 - 46

1шт.

38

A45481

HANDLE

GRIP - lever, plastic

1шт.

39

A49653

SLIDE

ASSEMBLY - seat mounting, right hand, Includes: Ref. 40

1шт.

40

L35503

SPRING

- return, slide

1шт.

41

A45523

SLIDE

ASSEMBLY - seat mounting, left hand (Includes Ref. 40)

1шт.

42

A45111

SPACER

- slides

4шт.

43

A48182

ROD

- connecting, latch

1шт.

44

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT - round head square neck, 5/16 NC x 7/8 inch

2шт.

44

A47171

CARRIAGE BOLT

BOLT - lower base

2шт.

45

131-351

LOCK NUT,5/16"-18, GA

NUT - hex, self-locking, 5/16 inch NC

4шт.

46

A48181

BASE

- lower

1шт.

50

131-205

LOCK NUT,5/16"-18

NUT - heavy hex, self-locking, 5/16 inch NC

4шт.
