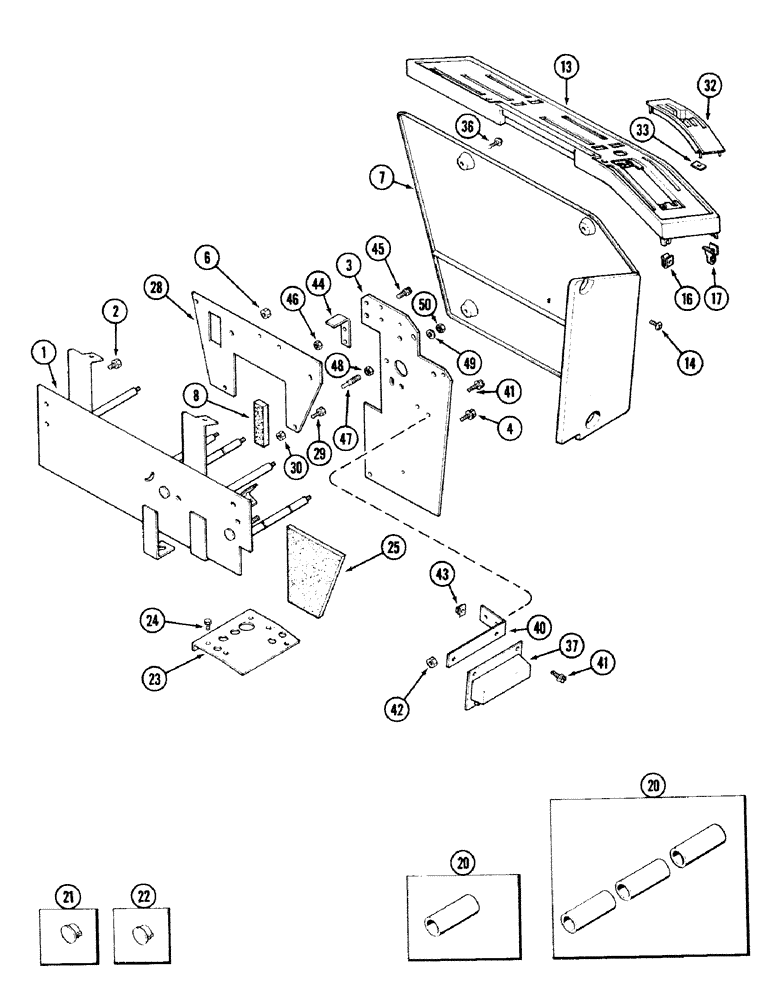

Запчасти Case IH 2594 (9-038) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A181983

SUPPORT

- control console (Replaces A177242)

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW - self-tapping, hex washer head, 3/8 NC x 5/8 inch

5шт.

3

A176862

SUPPORT

- gear shift shaft

1шт.

4

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

6

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex, jam, self-locking, 3/8 inch NC

5шт.

7

A169853

GUARD

SHROUD - console

1шт.

8

A169860

FOAM

- padding, console shroud

2шт.

13

A165283

COVER

- console (See Figure 9-XX for decal)

1шт.

14

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

16

131-627

NUT,Tinn, U, 1/4"-20

- u-type, 1/4 inch NC

6шт.

17

131-862

SPRING NUT,Tinn, U, #10

- u-type, no. 10, no threads

8шт.

20

A67318

BUSHING

SPACER - control lever (See inserts)

1шт.

21

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch

3шт.

22

353-410

PLUG,Dome, .875" hole, Nylon

- nylon, 7/8 inch

2шт.

23

A145830

PLATE

- mounting, shift cable

1шт.

24

276-55916

SELF-TAP SCREW,Hex Hd, 3/8"-16 x 1"

SCREW - self-tapping, hex head, 3/8 NC x 1 inch

5шт.

25

A147799

FOAM

- console shift support

1шт.

28

A166534

SUPPORT

- remote shaft

1шт.

29

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

30

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

2шт.

32

A164753

COVER

INSERT - shifter cover

1шт.

33

131-437

LOCK NUT,Self-Threadin, 5/16"

NUT - self-threading, 5/32 inch

4шт.

36

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - tapping, round x-recess, no. 10-16 x 3/4 inch (Order 1 washer F64315 and 1 screw 265-16512)

5шт.

37

A164734

BOARD

ASSEMBLY - relay, 12 speed transmission (Order A177703)

1шт.

37

A177703

RELAY

BOARD ASSEMBLY - relay, 24 speed tranmission

1шт.

40

A162959

BRACKET

- mounting, relay board

1шт.

41

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

4шт.

42

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

43

131-627

NUT,Tinn, U, 1/4"-20

- u-type, 1/4 inch NC

2шт.

44

A176860

BRACKET

- range lever stop, 12 speed transmission

1шт.

44

A177072

BRACKET

- range lever stop, 24 speed transmission

1шт.

45

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

46

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

47

A176565

STRUT

STUD - shift stop

1шт.

48

131-1281

LOCK NUT,Jam, 5/16"-18

NUT - hex, jam, self-locking, 5/16 inch NC

1шт.

49

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

50

425-105

NUT,5/16"-18, G5

1шт.
