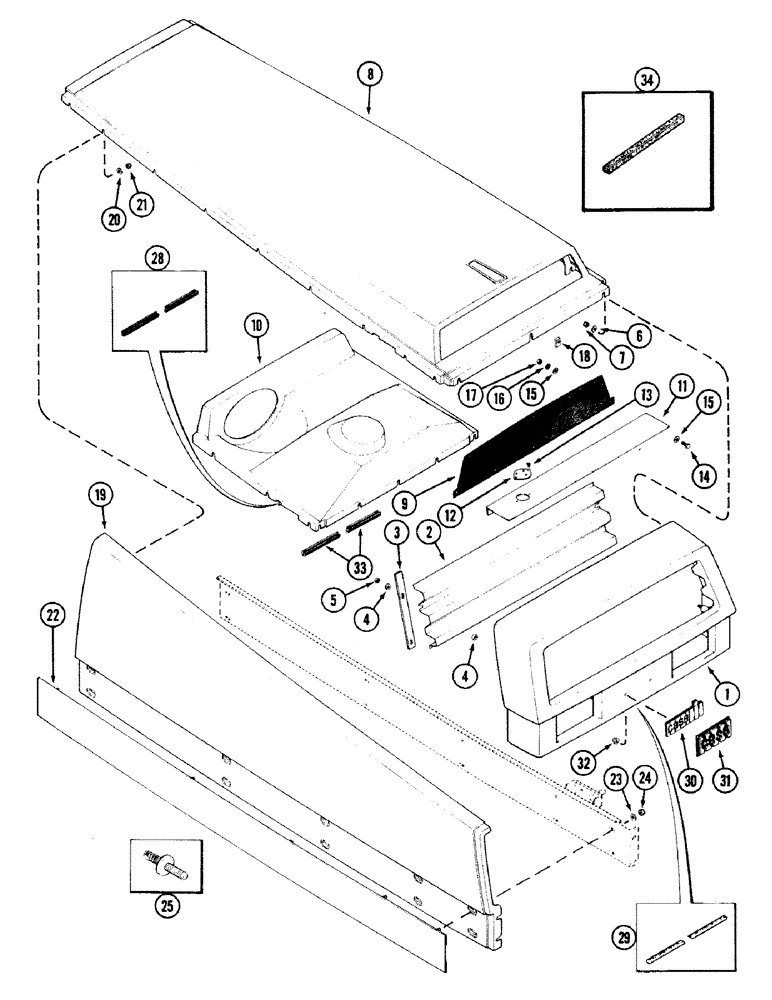

Запчасти Case IH 2594 (9-034) - UPPER GRILLE, HOOD, SIDE AND DECAL PANELS (09) - CHASSIS/ATTACHMENTS

1

A181464

GRILLE ASSY

GRILLE - upper, red (Includes 11 studs 1974428C1, See Ref. 25)

1шт.

1

A145676

GRILLE

- upper, white (Includes 11 studs 1974428C1, See Ref. 25)

1шт.

2

A162559

SCREEN

- upper grille

1шт.

3

A147667

BRACKET

- upper grille screen

2шт.

4

A147030

SPACER

- grille screen

8шт.

5

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

4шт.

6

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

7шт.

7

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

7шт.

8

A181461

HOOD

- upper, red

1шт.

8

A145580

GUARD

HOOD - upper, white

1шт.

9

A162556

SCREEN

- air scoop

1шт.

10

A177522

SCOOP

- hood inner

1шт.

11

A149718

BAFFLE

- air scoop screen

1шт.

12

A149329

LENS

- sight, air conditioning

1шт.

13

276-5436

SCREW - self-tapping, hex head, no. 6 NC x 3/8 inch

2шт.

14

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

8шт.

15

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

13шт.

16

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

17

129-119

NUT,1/4"-20, G5

5шт.

18

131-135

SPRING NUT,Tinn, U, 1/4"-20

3шт.

19

1348355C1

PANEL ASSY.

PANEL - hood, upper right, red (Includes 9 studs 1968127C1, See Ref. 25) (Replaces A181462)

1шт.

19

1289341C2

PANEL ASSY.

PANEL - hood, upper, left (Includes 9 studs 1968127C1, See Ref. 25) (Replaces A181463)

1шт.

19

A145623

PANEL

- hood, upper right, white (Includes 9 studs 1968127C1, See Ref. 25)

1шт.

19

A145622

PANEL

- hood, upper left, white (Includes 9 studs 1968127C1, See Ref. 25)

1шт.

20

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

18шт.

21

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

18шт.

22

A145688

PANEL

- decal (Order 1974411C1)

2шт.

23

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

20шт.

24

131-205

LOCK NUT,5/16"-18

NUT - heavy hex, self-locking, 5/16 inch NC

20шт.

25

1974428C1

STUD

- mounting, upper grille

1шт.

25

1968127C1

STUD

- mounting, side panel

1шт.

28

A149328

SEAL

TRIM - edge, 46-1/4 inch (Order F42827 and, Serial Range: cut-lenght)

1шт.

29

1348428C1

SEAL

- upper grille (Order 1348430C1 and, Serial Range: cut-lenght)

1шт.

30

A181437

EMBLEM CASE/IH

EMBLEM - front, Case IH

1шт.

31

321-4739

EMBLEM

- front, Case

1шт.

32

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - push on type, 1/4 inch, plated

2шт.

33

A149644

SEAL

- air scoop and cooler lines

1шт.

34

A64865

SEAT

TRIM - moulding (Order D52812 and, Serial Range: cut-length)

1шт.
