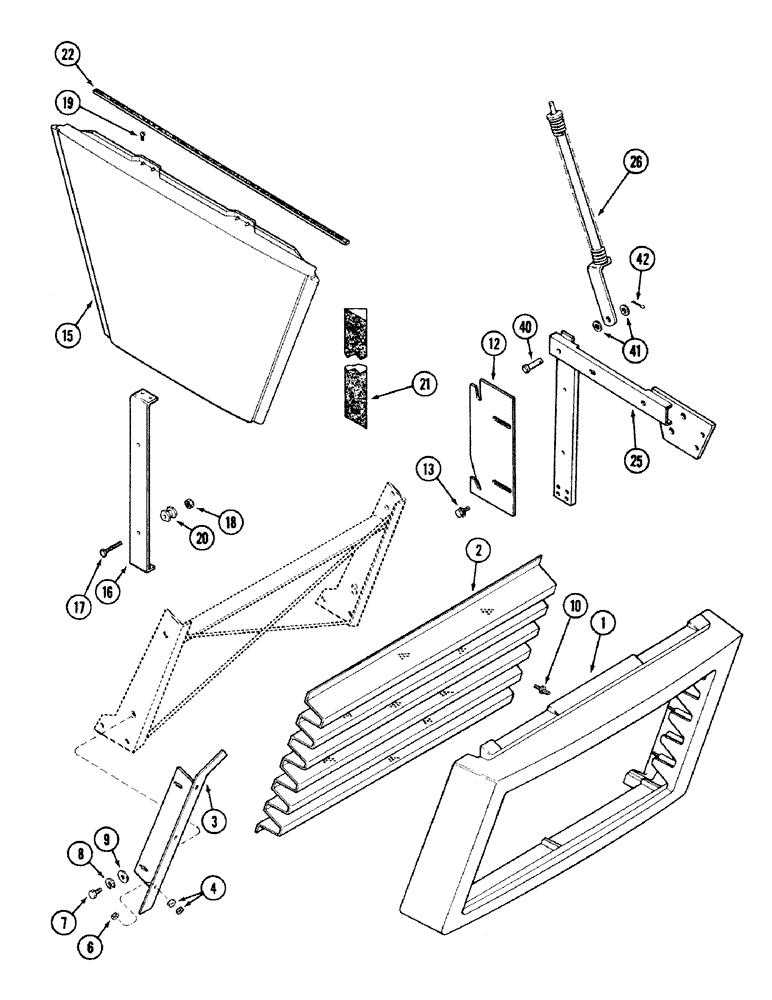

Запчасти Case IH 2594 (9-030) - LOWER GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A181466

GRILLE

- lower, red (Includes 6 studs 1974428C1, See Ref. 10)

1шт.

1

A145800

GUARD

GRILLE - lower, white (Includes 6 studs 1974428C1, See Ref. 10)

1шт.

2

A162557

SCREEN

grille, lower

1шт.

3

A147028

BRACKET

ANGLE - grille support, right hand (Shown)

1шт.

3

A147029

BRACKET

ANGLE - grille support, left hand

1шт.

4

A147030

SPACER

- grille screen

12шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC

6шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

- flat, 13/32 x 2 x 1/8 inch

4шт.

10

1974428C1

STUD

- mounting, 1/4 inch NC (Replaces A160247)

12шт.

12

A147283

BRACKET

- support, lower side panel

2шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

15

A181465

PANEL

- side, lower, red

2шт.

15

A145788

PANEL

- side, lower, white

2шт.

16

A149069

STRAP

- side panel, lower

2шт.

17

A160078

BOLT

- adjuster, panel support

4шт.

18

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

4шт.

19

261-5478

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW - self-tapping, pan head Phillips, 1/4 NC x 1/2 inch

8шт.

20

A147282

SPOOL

- lock, lower side panel

4шт.

21

A149132

SEAL

- lower side panel

2шт.

22

A162398

SEAL

- adhesive sided (50 foot bulk length) (Order A162398X)

2шт.

25

REF

INSTRUCTION

CHANNEL - hood (See Figure 9-26)

2шт.

26

REF

INSTRUCTION

CYLINDER ASSEMBLY - hood lift (See Figure: 9-32)

2шт.

40

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

PIN - clevis, 1/2 x 1-11/16 inch, hardened

2шт.

41

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

42

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.
