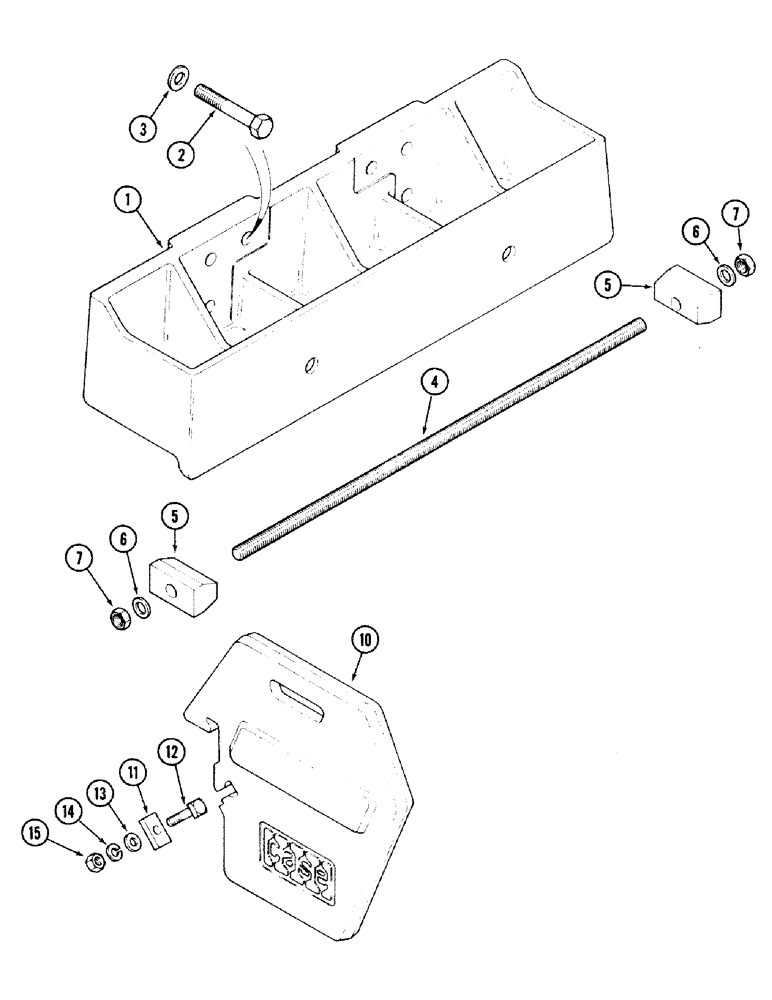

Запчасти Case IH 2594 (9-018) - FRONT END WEIGHTS AND SUPPORT (09) - CHASSIS/ATTACHMENTS

A187209

ATTACHMENT - front weight frame (Machinery item), Includes: Ref. 1 - 7

1шт.

1

1342125C2

SUPPORT

FRAME - front weight (Maximum of 18 weights)

1шт.

2

827-20065

BOLT,Hex, M20 x 2.5 x 65mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 65 mm, class 10.9

4шт.

3

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

4шт.

4

A181351

ROD

- threaded

1шт.

5

A181354

BLOCK

- hold-down

2шт.

6

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

7

425-1010

NUT,5/8"-11, G5

2шт.

10

A169111

WEIGHT

- front end, 100 lb (Machinery item)

1шт.

A177102

KIT

- hardware, weight mounting (Order components), Includes: Ref. 11 - 15

1шт.

11

1978431C1

CLAMP

- weight

1шт.

12

A169139

SQUARE BOLT

- square head, 1/2 NC x 3-1/4 inch

1шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
